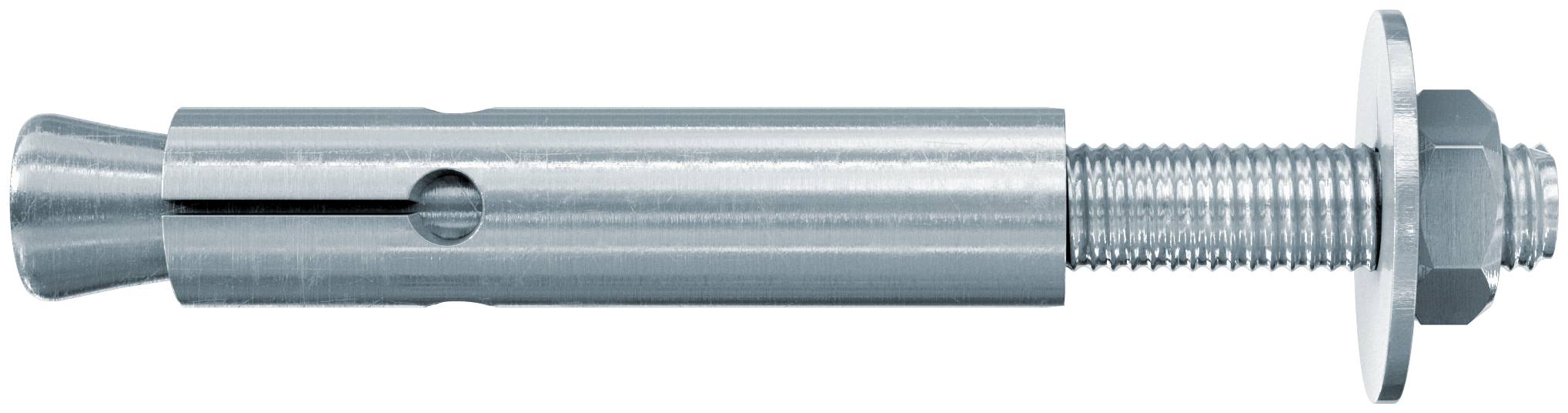

Fischer 60724 FZA 22 x 100 M16/60 Cavity fixing 184 mm 24 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
24 mm
- Product type
Cavity fixing
- Material
Steel
- Length
184 mm
- Screw diameter
16 mm
- Dim
(Ø x L) 24 mm x 184 mm
- Suitable for
Concrete
Natural stone
- Content
10 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479392 Fischer 60724 FZA 22 x 100 M16/60 Cavity fixing 184 mm 24 mm 10 pc(s)
Description
The fischer ZYKON-bolt anchor FZA is an anchor from galvanically zinc-plated steel. With the special drill FZUB is in one operation the hinterschnittene drill hole is created. The undercut anchor in the pre-on mounting. With the setting tool FZE Plus is the split sleeve over the cone gears and fills in the hinterschnittene drill hole is positively. The fischer ZYKON-bolt anchor FZA is ideal for steel constructions, railings and machines in the interior in gerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for cracked concrete and fire resistance class R 120
- Low edge and axle distances by lock pressure-free installation
- Energy-saving mounting with less setting energy
- Maximum safety through positive connection
- Fast installation without tool change. This saves time and costs.
