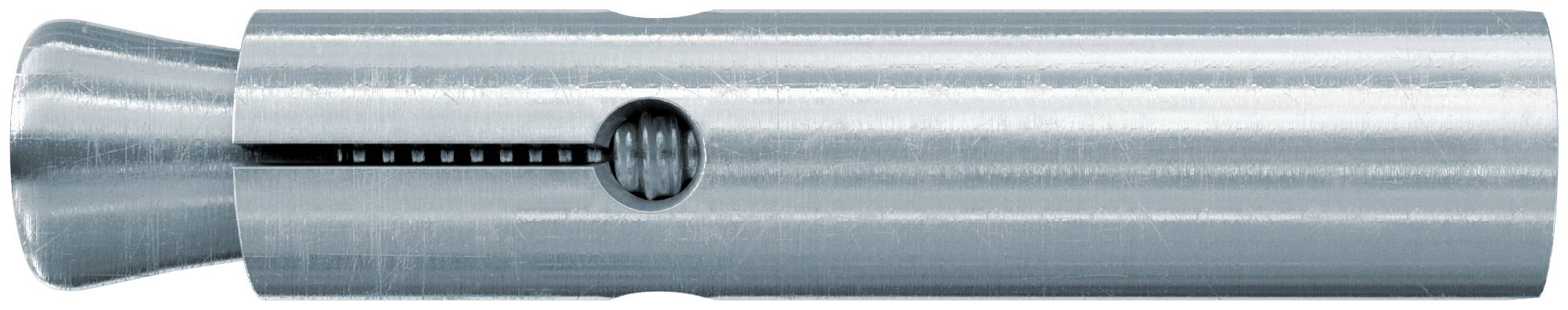

Fischer 60760 FZA 14 x 60 M 8 I Plug with internal thread 14 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
14 mm
- Product type
Plug with internal thread
- Material
Steel
- Screw diameter
8 mm
- Dim
(Ø) 14 mm
- Suitable for
Concrete
Natural stone
- Content
20 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479395 Fischer 60760 FZA 14 x 60 M 8 I Plug with internal thread 14 mm 20 pc(s)
Description
The fischer ZYKON-internal thread FZA-I is an anchor from galvanically zinc-plated steel. With the special drill FZUB is in one operation the hinterschnittene drill hole is created. The undercut anchor in the pre-on mounting. With the setting tool FZE Plus is the split sleeve over the cone gears and fills in the hinterschnittene drill hole is positively. The fischer ZYKON-internal thread FZA-I is ideal for steel constructions, ceiling installations and consoles indoors in gerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for cracked concrete and fire resistance class R 120
- High flexibility through the use of commercially available metric screws and threaded rods
- Maximum safety through positive connection
- Surface-flush dismantling possible
- Fast installation without tool change. This saves time and costs.
