Fischer 63490 Silicon pipe clamp FRSH 15 - 19 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Content
100 pc(s)
- Material
Silicone
- Clamping range
15 up to 19 mm
- Thread size
M8
- Thread
M8
- Range (max.)
19 mm
- Clamping range (min.)
15 mm
- Material (details)
FRSH 15 - 19
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479466 Fischer 63490 Silicon pipe clamp FRSH 15 - 19 100 pc(s)

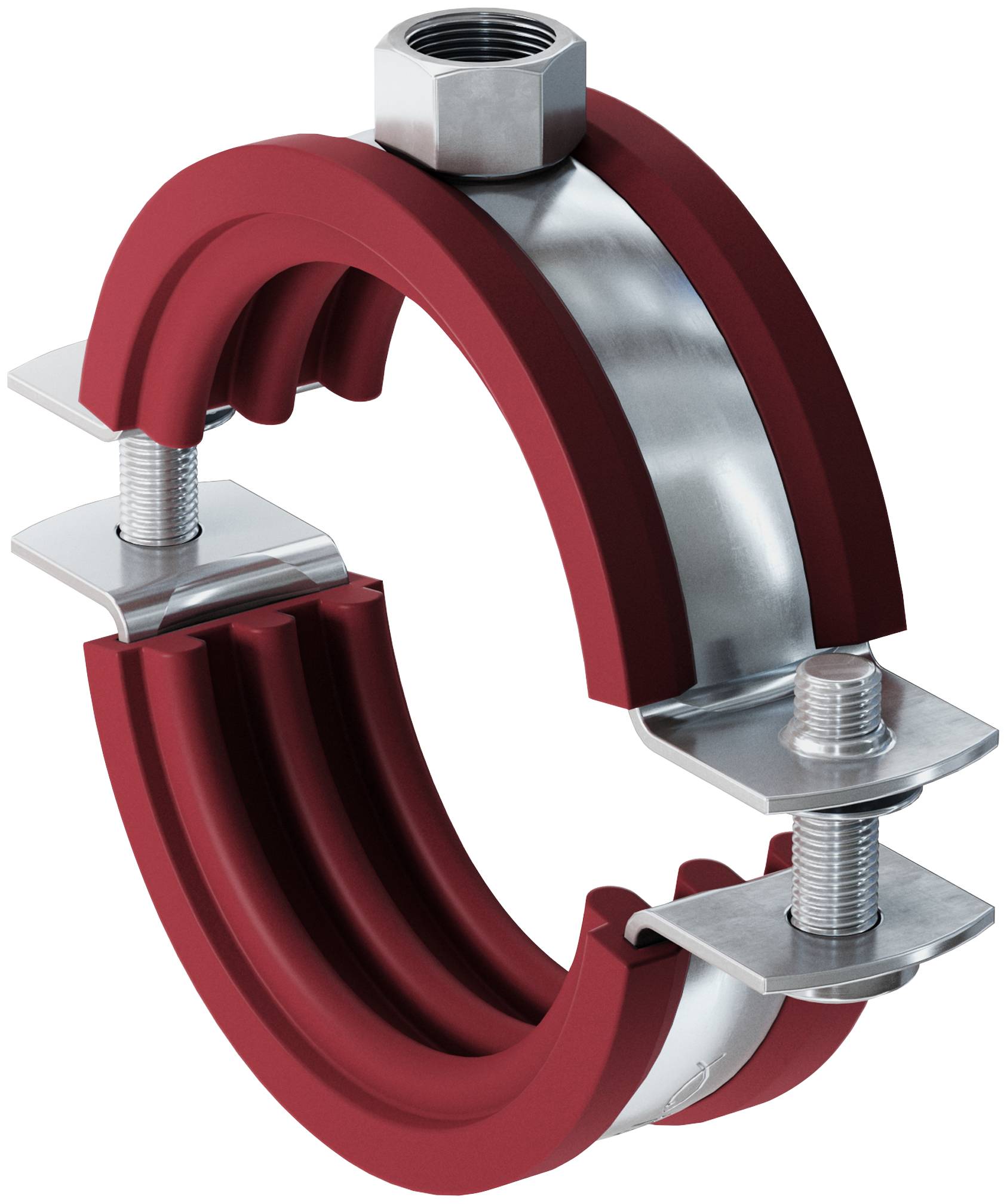

Description
The fishermen silicon pipe clamp FRSH 15-19 for nominal size 3/8" with sound insulation insert for attaching high-tempered pipes. The two screw sustainability enables the optimized adjustment on the tube outer diameter. Connection nut with thread M8 for the admission of threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- Connection nut with thread M8
- Sound insulation insert
- Two screw for optimized adaptation to external pipe diameter.
