Fischer 68032 Clamp SCH 2332 SZ 25 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Content
25 pc(s)
- Material
Nylon
- Clamping range
23 up to 32 mm
- Material properties
halogen-free
- Range (max.)
32 mm
- Clamping range (min.)
23 mm
- Material (details)
SCH 2332 SZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479581 Fischer 68032 Clamp SCH 2332 SZ 25 pc(s)
Description

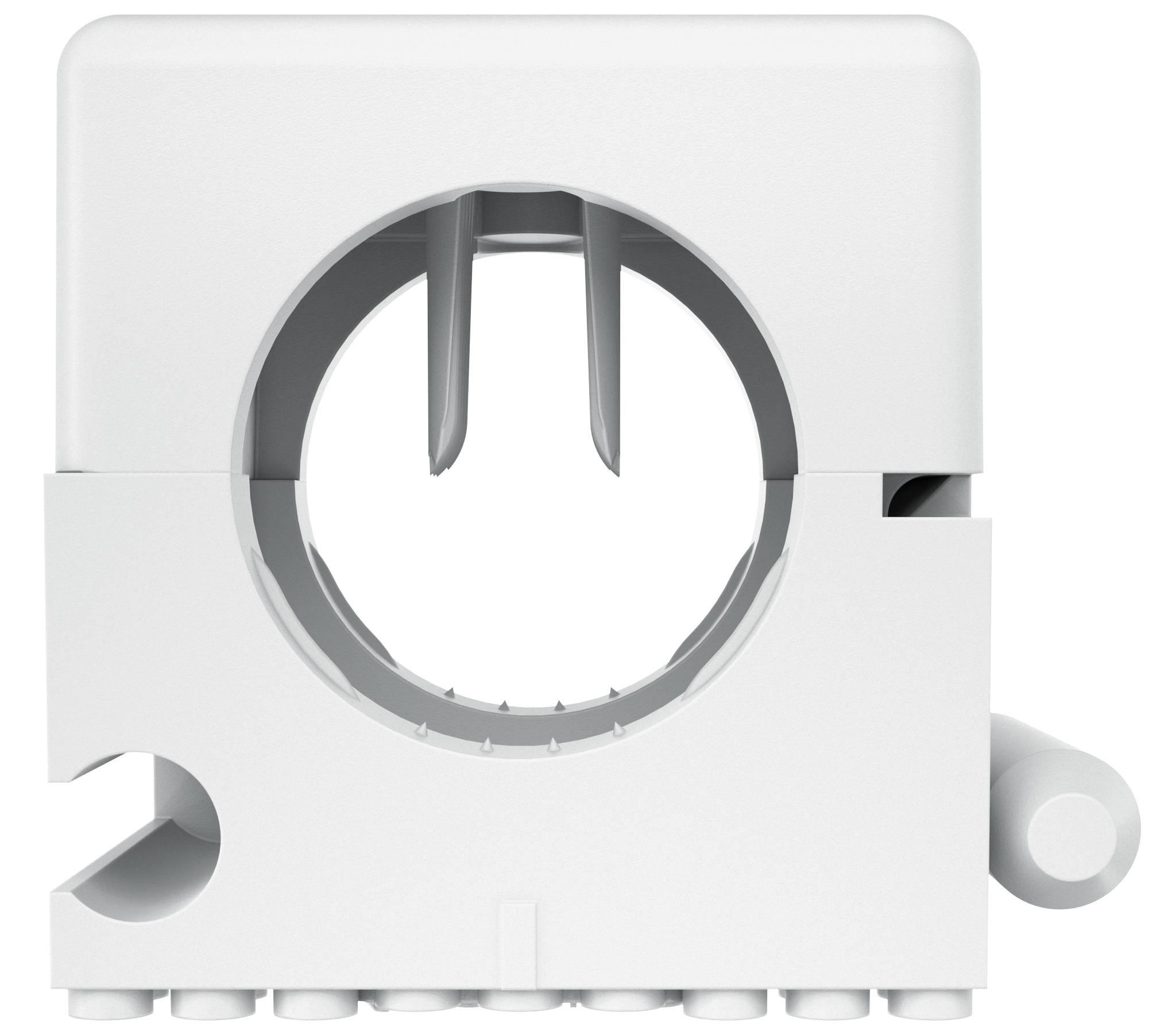

The fishermen clamp SCH is a mounting solution for cable and plastic insulating pipes with different diameters. The clip is connected to the Fischer Nail dowel N 5 installed. The breaking of the wings the nail screw the dowels sleeve against the drill hole wall. Afterwards the plastic insulating tube and the cable into the clamp is inserted and by plugging the locking bracket fixed.
This text is machine translated.
This text is machine translated.
Features
- Made of high-quality nylon without halogens
- High Flexibility: Elastic spring tongue takes cable with different diameters. This reduces storage capacity
- Connect up to three pipe clips. This saves additional drilling
- Quick fixing with fischer Nail dowel N 5
- Temperature resistant from -40 °C up to +80 °C
