Fischer 68062 Bracket clamp Clip FC 9 -12 GR 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Bracket clamp
- Content
100 pc(s)
- Material
Nylon
- Clamping range
9 up to 12 mm
- Material properties
halogen-free
- Range (max.)
12 mm
- Clamping range (min.)
9 mm
- Material (details)
FC 9 -12 GR
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479583 Fischer 68062 Bracket clamp Clip FC 9 -12 GR 100 pc(s)
Description

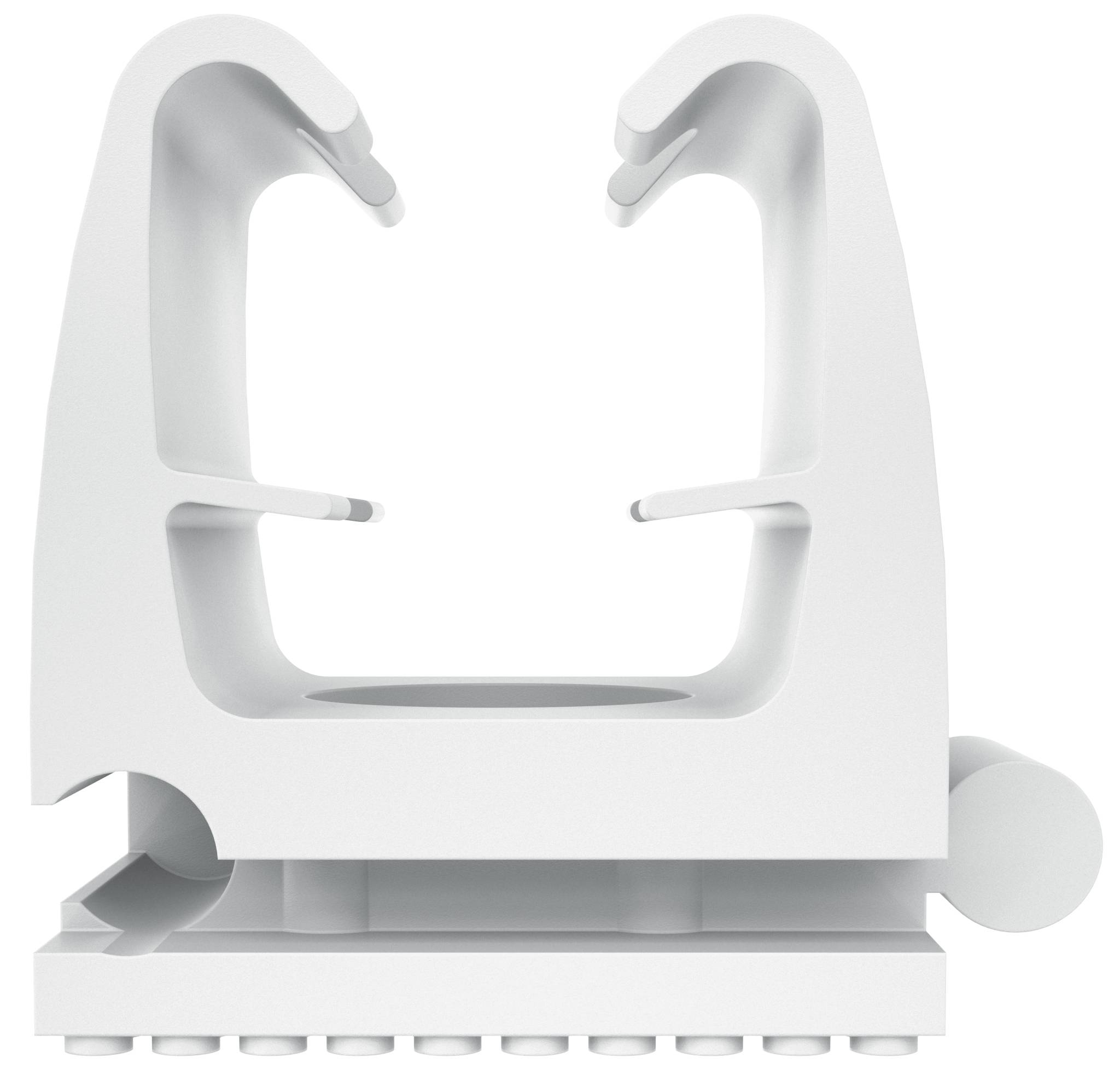

The fishermen clip FC GR is a mounting solution for cable and pipes with different diameters. The clip can be used in 11-mm-C-profile rails or with the fishermen Nail dowel N 5 can be installed. The breaking of the wings the nail screw the dowels sleeve against the drill hole wall. Afterwards the plastic insulating tube and the cable into the clip is inserted. The preload of the clip holding the tubes and cables are securely-even in extreme temperatures from -40° to +80°C.
This text is machine translated.
This text is machine translated.
Features
- Made of high-quality nylon without halogens
- Up to -40°C temperature resistant
- The flexible attachment for different cable and pipe diameter. This reduces storage capacity
- Flexible mounting with C-profile rails or fischer Nail dowel N 5

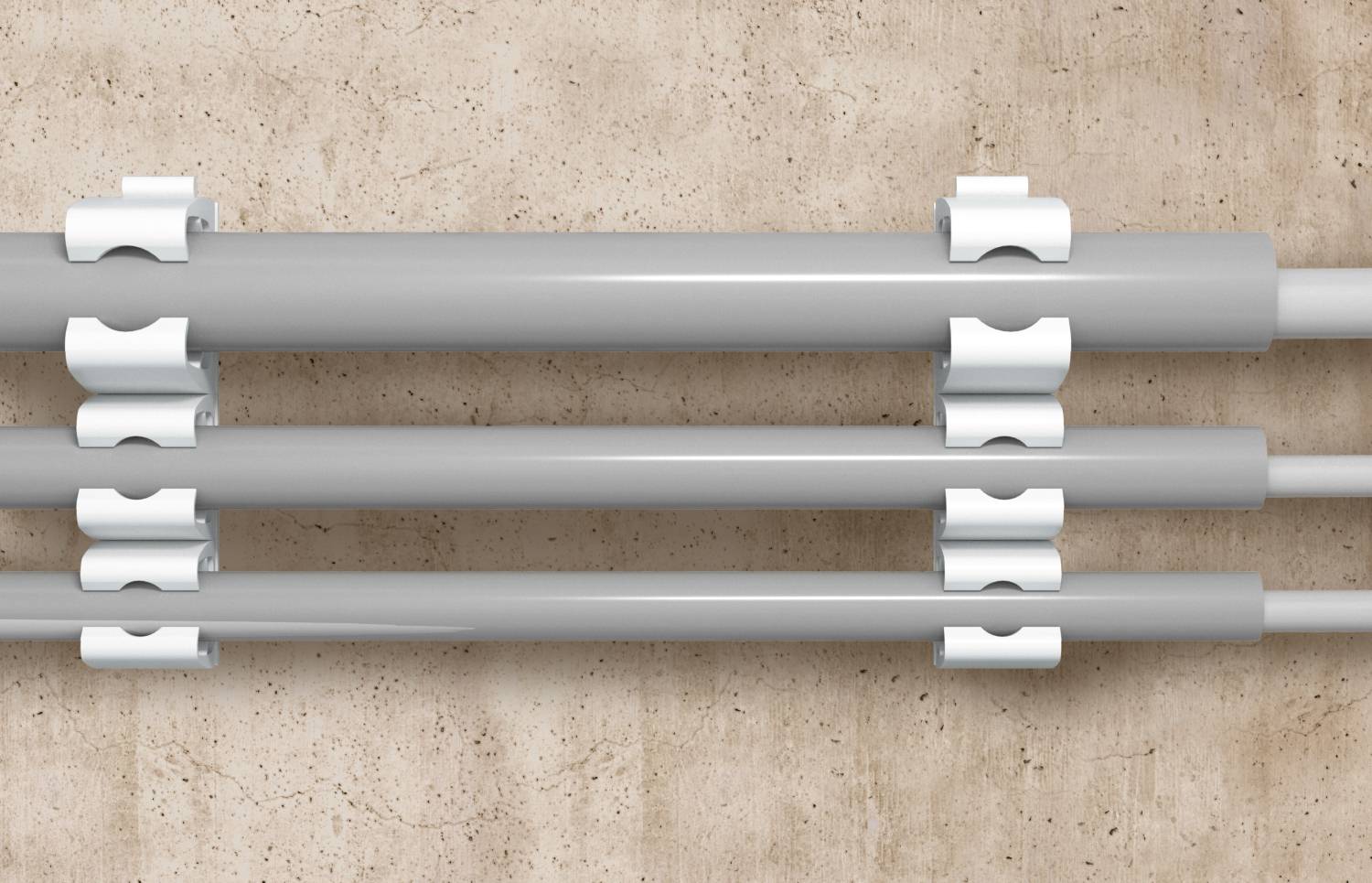

- Connect up to three pipe clips. This saves additional drilling.
