Fischer 68501 FSA 8 x 80/40 B Anchor plug 90 mm 12 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Anchor plug
- Material
Steel
- Length
90 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 12 mm x 90 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Features
incl. hex nut
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479591 Fischer 68501 FSA 8 x 80/40 B Anchor plug 90 mm 12 mm 50 pc(s)
Description

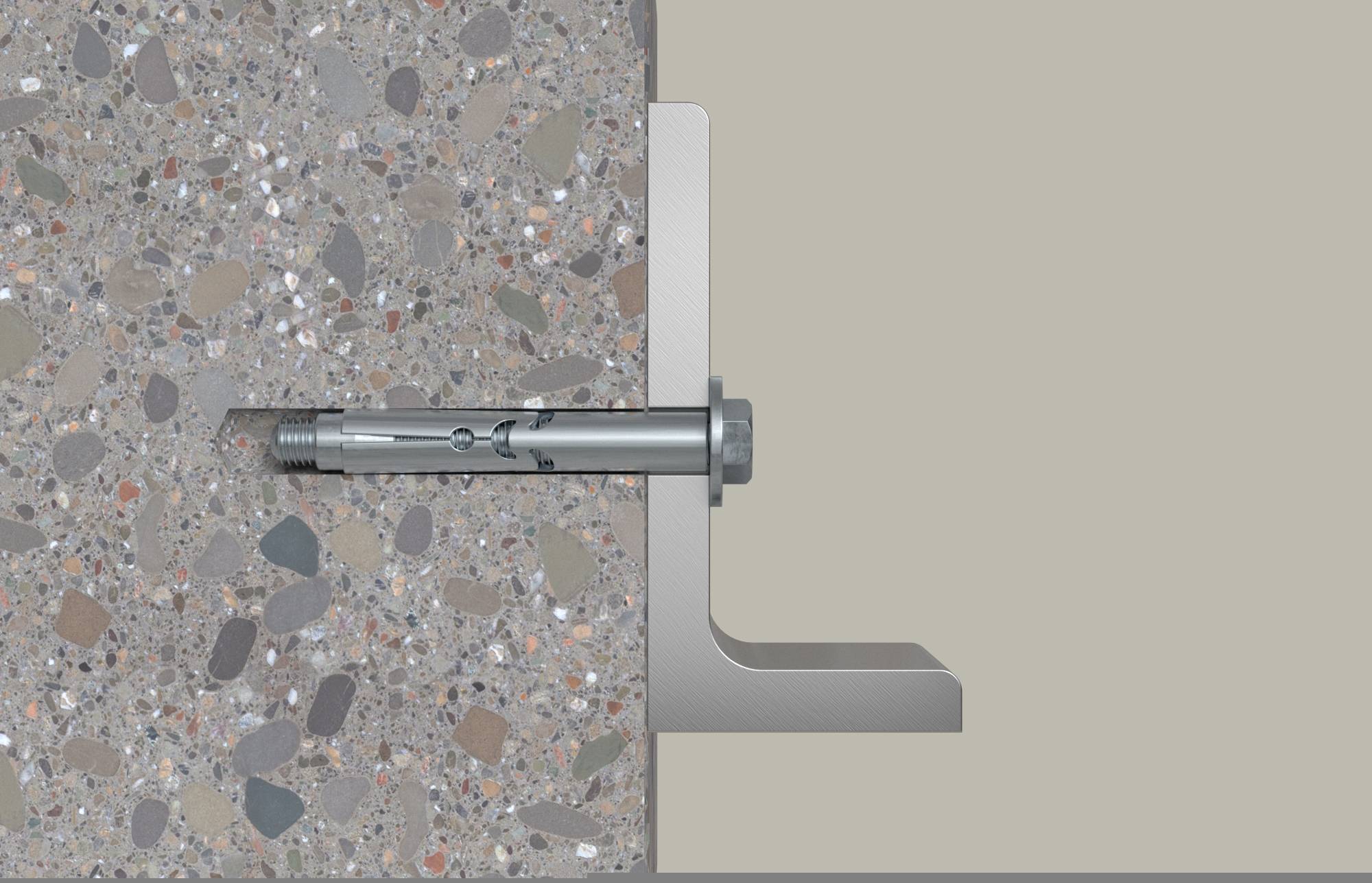

The Fishermen Anchor plug FSA-B is an anchor from electro-galvanised with nut and washer for constructive attachments from galvanically zinc-plated steel. The FSA-B is in the time-saving through-hole mounting. While tightening, the cone in the split sleeve pulled and tightens them against the drill hole wall. The Ausstanzungen take the suit slip like a crumple zone. The Add-on to the anchoring Basic is used. The Fishermen Anchor plug FSA-B is ideal for the attachment of non-security attachments such as ladders, gates and temporary attachments in ungerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- Simple installation through optimized anchor geometry even in confined spaces.
- With nut and washer
- Surface-flush dismantling by detachable screw connection.
