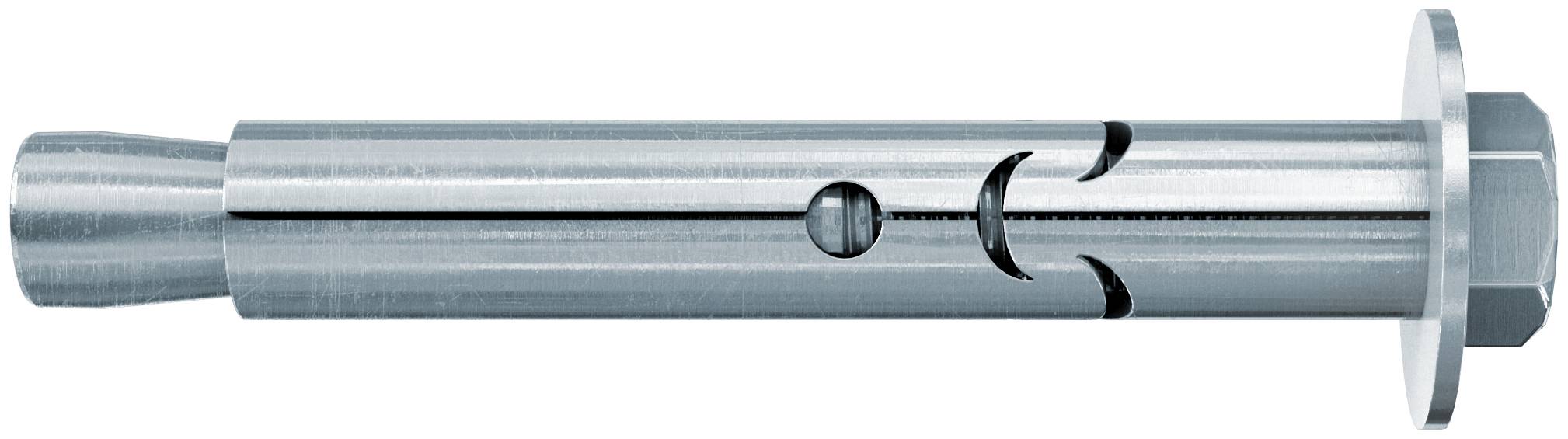

Fischer 68527 FSA 12 x 85/25 S Anchor plug 91 mm 30 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
30 mm
- Product type
Anchor plug
- Material
Steel
- Length
91 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 30 mm x 91 mm
- Suitable for
Concrete
Natural stone
- Content
20 pc(s)
- Features
incl. hex screw
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479611 Fischer 68527 FSA 12 x 85/25 S Anchor plug 91 mm 30 mm 20 pc(s)
Description

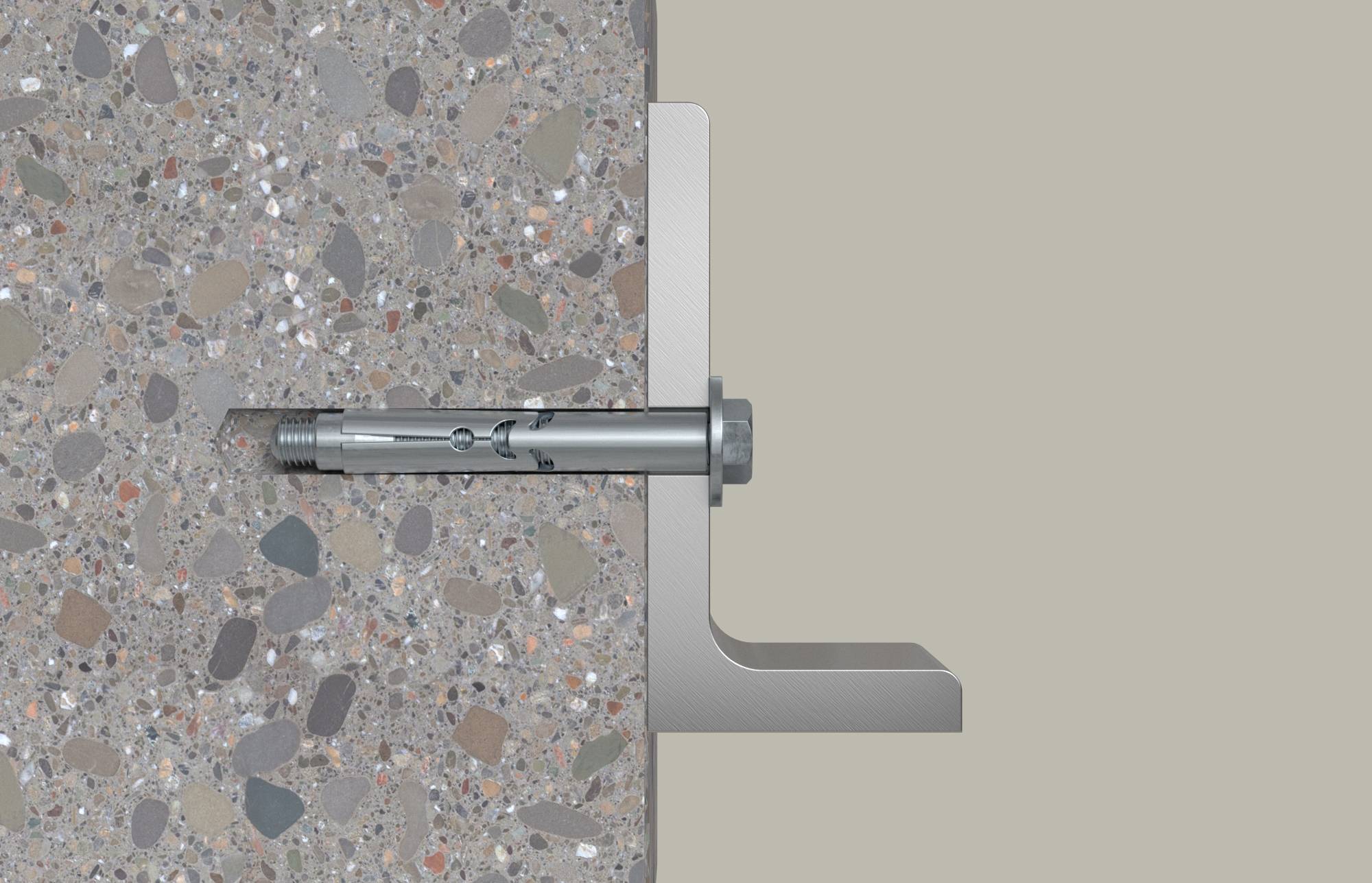

The Fishermen Anchor plug FSA-S is an anchor from galvanically zinc-plated steel with hexagonal screw for constructive fastenings. The FSA-S is in the time-saving through-hole mounting. While tightening, the cone in the split sleeve pulled and tightens them against the drill hole wall. The Ausstanzungen take the suit slip like a crumple zone. The Add-on to the anchoring Basic is used. The Fishermen Anchor plug FSA-S is ideal for the attachment of non-security attachments such as consoles, handrails or cable trays in ungerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- Simple installation through optimized anchor geometry even in confined spaces.
- With hex screw
- Surface-flush dismantling by detachable screw connection.
