Fischer 77711 STS Hanger bolt 10 mm 140 mm Star, Hex head Steel (galvanized) 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Hanger bolt
- Drive
Star
Hex head
- Material
Steel (galvanized)
- Thread size
M10
- (Ø)
10 mm
- Length
140 mm
- Head shape
Hex head
- Dim
(Ø x L) 10 mm x 140 mm
- Content
50 pc(s)
- Material (details)
With edge
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479708 Fischer 77711 STS Hanger bolt 10 mm 140 mm Star, Hex head Steel (galvanized) 50 pc(s)
Description

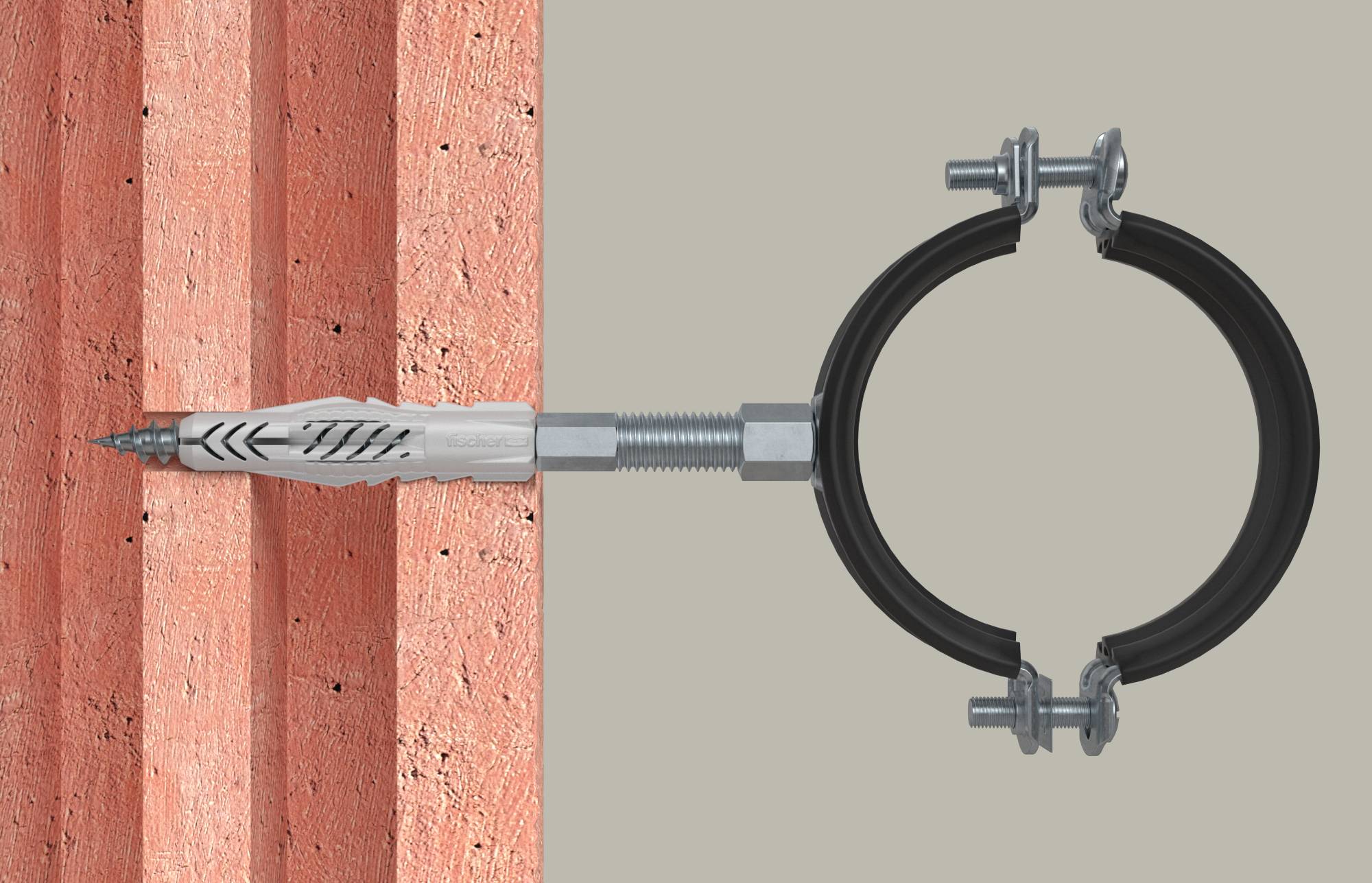

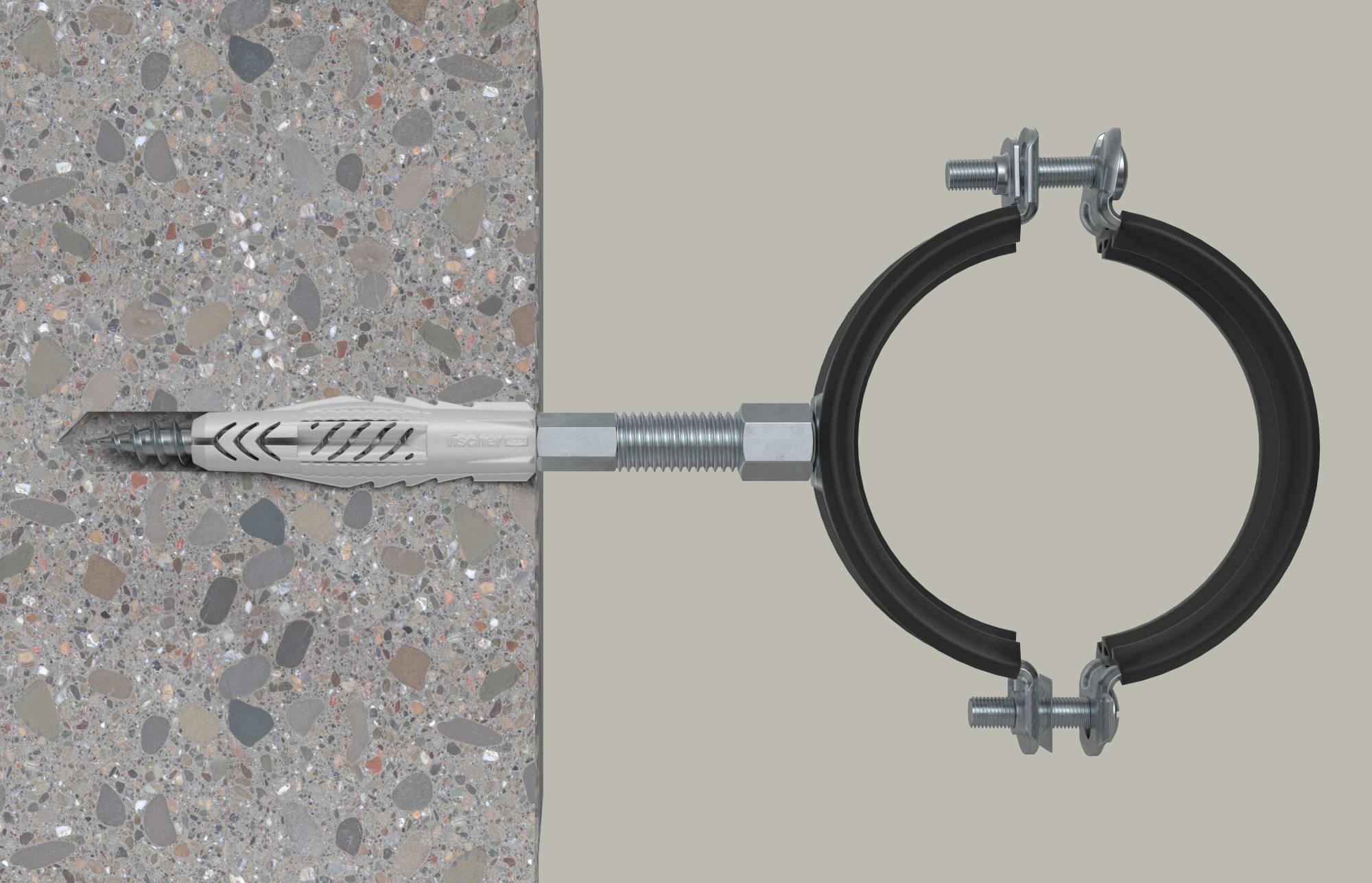

the fischer STST stock screw with bit head is suitable for the direct installation of pipe clamps on the ground. The coarse thread is used to screw in the stock screw in wooden constructions, in conjunction with a dowel also in masonry and concrete. The hexagonal head with internal T-drive simplifies the installation. fischer offers STST in sizes M 6 to M 12 and lengths of 60 - 180 mm for different distances to the ground. The galvanized version is suitable for installations in buildings, the stainless steel versions for installation outdoors and in highly corrosive environments.
