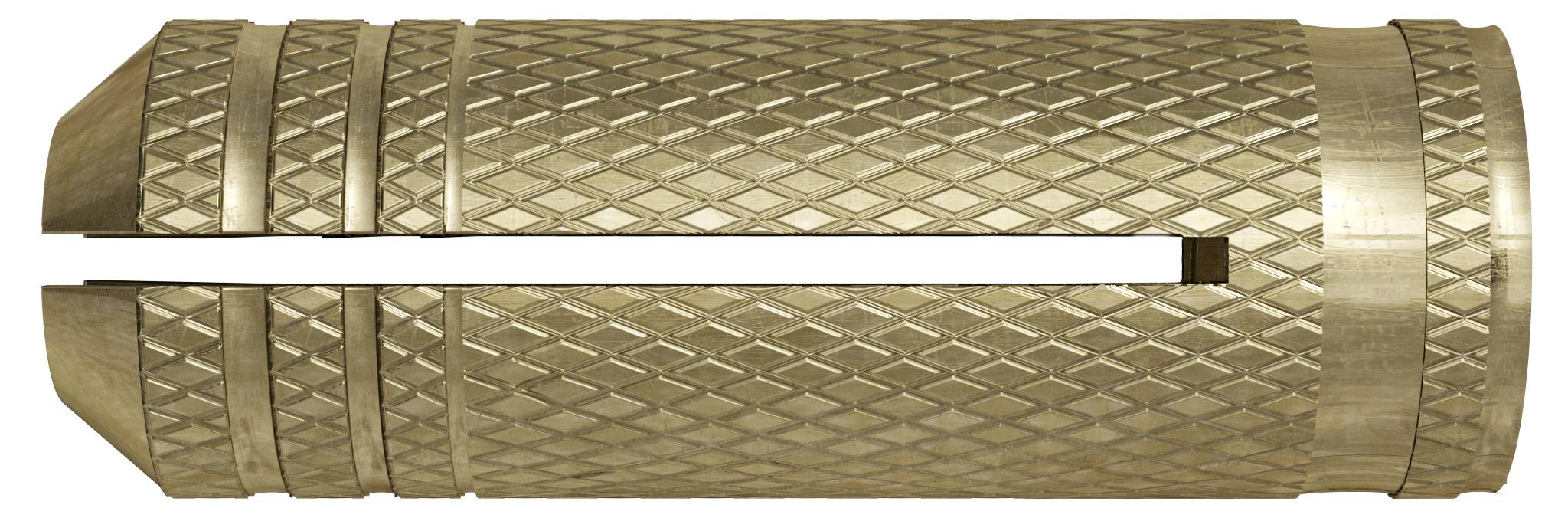

Fischer 78660 MS 6 x 22 Brass plug 22 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
8 mm
- Product type
Brass plug
- Material
Brass
- Length
22 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 8 mm x 22 mm
- Suitable for
Timber board materials
PVC sheets
Concrete
Solid brick
Flintlime bricks
Natural stone
- Content
100 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479733 Fischer 78660 MS 6 x 22 Brass plug 22 mm 8 mm 100 pc(s)
Description

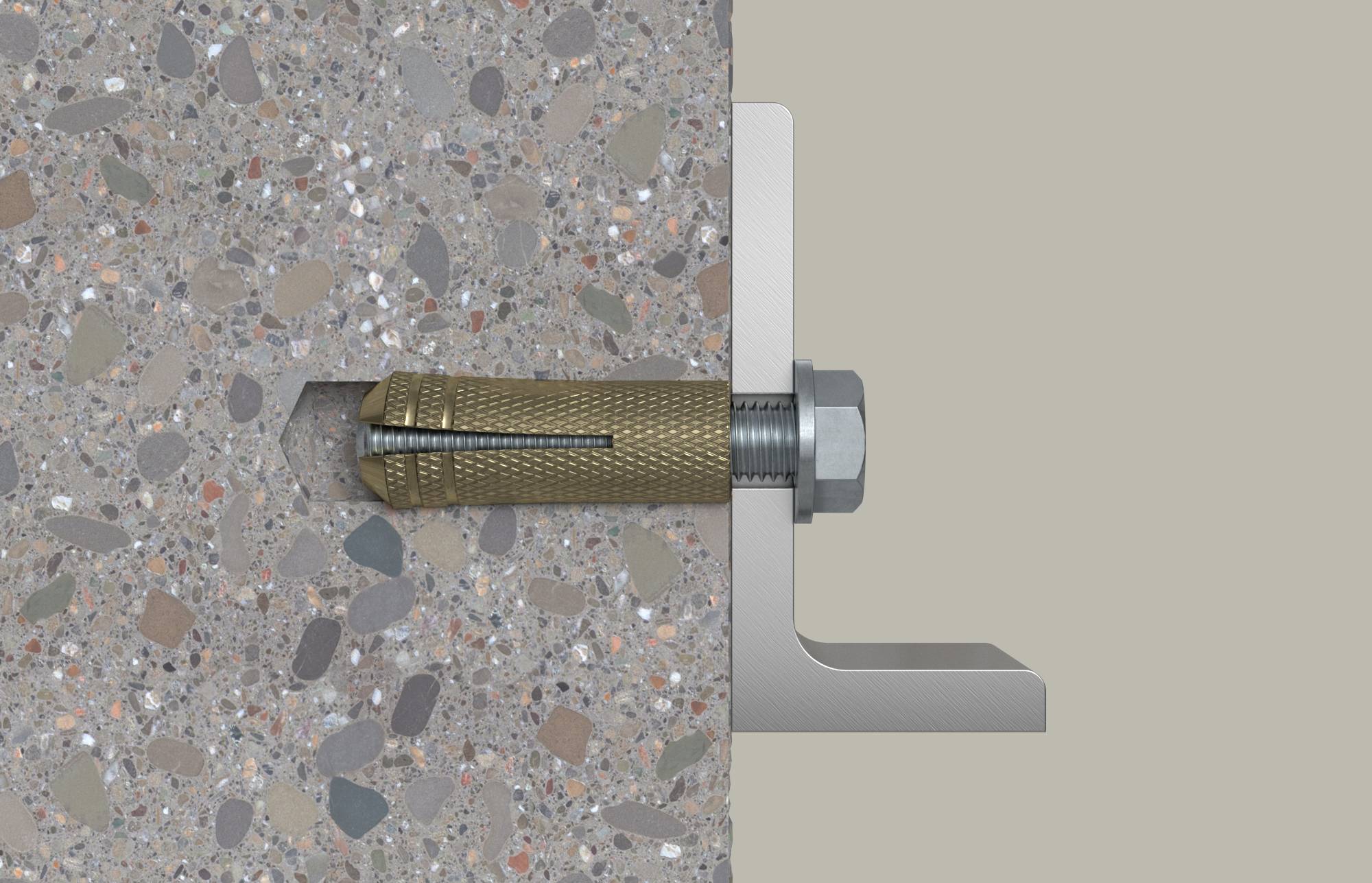

The fischer brass plug MS is a wedge anchor from brass for the recording of a metric thread. The special bolt is in the pre-on mounting. When the screw or threaded rod spread to the brass plug and anchored against the drill hole wall. The fischer brass plug MS is especially suitable for fixing shelves, heaters and aggregates in solid substrates.
This text is machine translated.
This text is machine translated.
Features
- Flexibility through the use of commercially available screws and threaded rods
- No rotates by anti-skid surface structure
- Surface-flush dismantling possible
- Quick and easy installation thanks to compact design.
