Fischer 78801 VBS 8/120 Cladding plug 288 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
8 mm
- Product type
Cladding plug
- Material
Plastic
Steel
- Length
288 mm
- Dim
(Ø x L) 8 mm x 288 mm
- Suitable for
Cladding
- Content
100 pc(s)
- Material properties
rust-proof
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479740 Fischer 78801 VBS 8/120 Cladding plug 288 mm 8 mm 100 pc(s)
Description

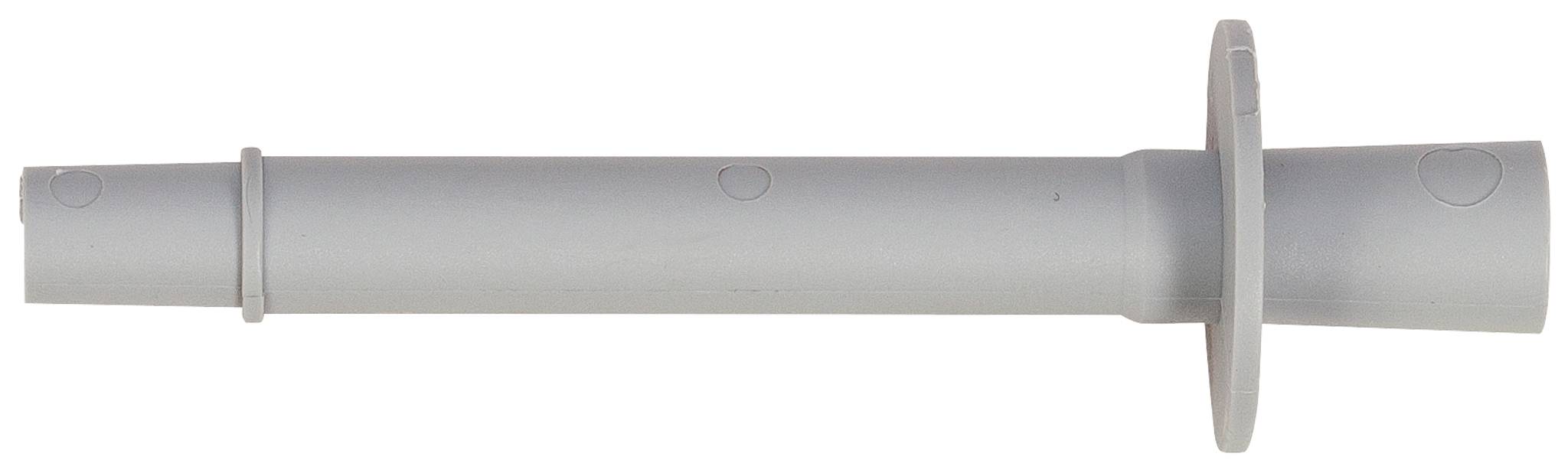

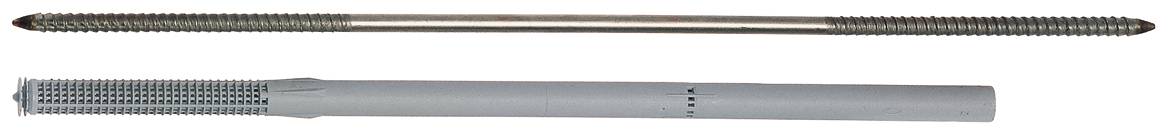

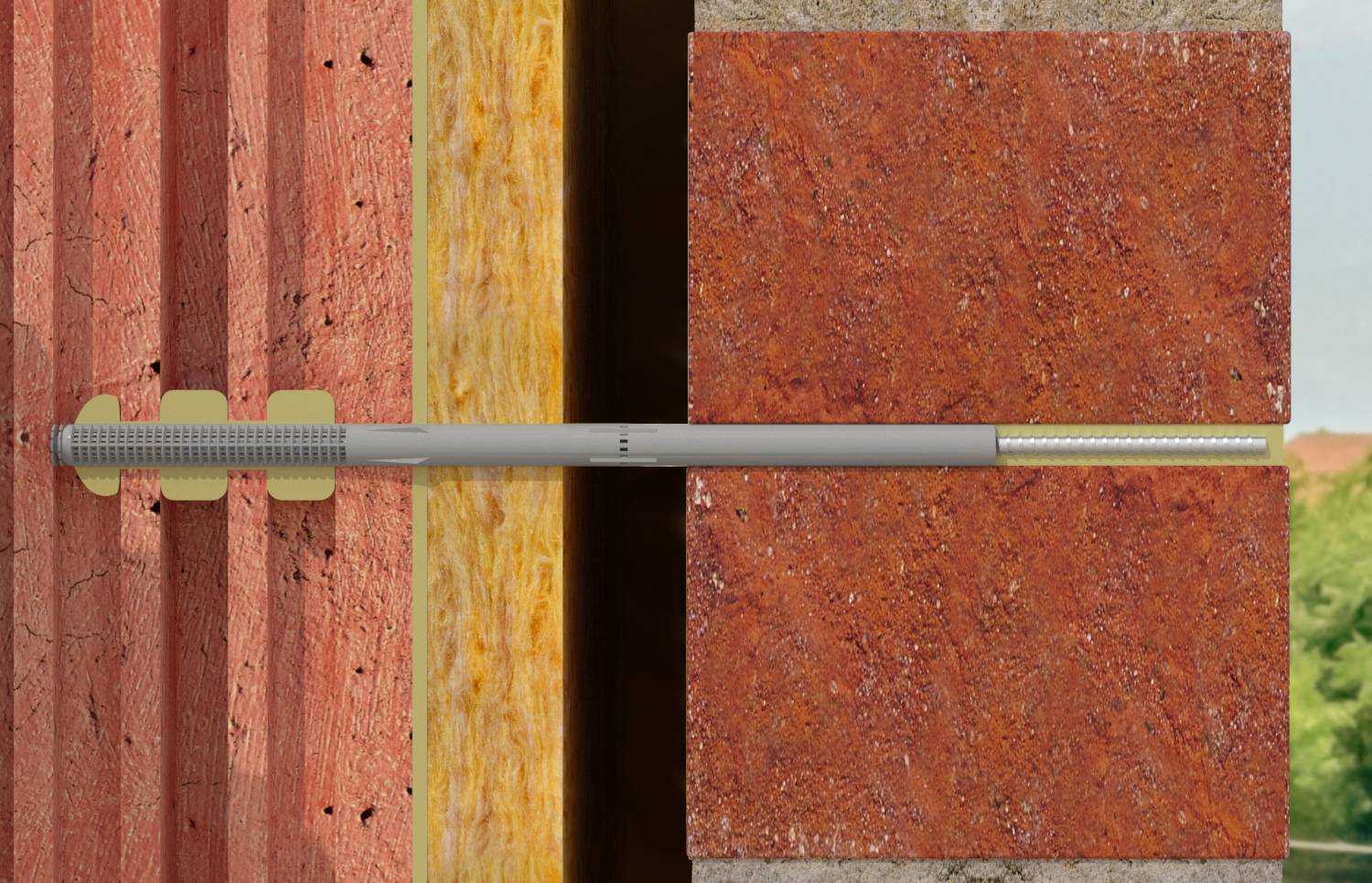

The bauaufsichtlich fischer Cladding plug VBS 8 is a legal system for subsequent attachment of cladding with and without air layer. Components of the system are the Fischer FIS V, a high-performance mortar anchor sleeve made of plastic and a profiled stainless steel wire. The VBS8 is in the through-hole mounting in the storage joining the hydrometers Auer shell. The anchor is introduced into the drill hole. Afterwards, the mortar injeziert the 4 mm wire armature spread pressure-free in the bearing cup and in the hydrometers Auer shell anchored.
This text is machine translated.
This text is machine translated.
Features
- Technical Approval
- High security: Installation in the entire storage add possible
- No flaking and gap cracks. For this reason the VBS 8 can also be used in old masonry
- Invisible attachment by gray color of injection mortar
- Economic mounting due to the low drill diameter of only 8 mm.
