Fischer 80710 S 10 J 75 S Length-adjustable plug 75 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Length-adjustable plug
- Material
Polyamide
- Length
75 mm
- Dim
(Ø x L) 10 mm x 75 mm
- Suitable for
Concrete
Timber
Flintlime bricks
Natural stone
Drywall sheet
Solid stone
Solid brick
- Content
50 pc(s)
- Features
incl. adjustment screw
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 481981 Fischer 80710 S 10 J 75 S Length-adjustable plug 75 mm 10 mm 50 pc(s)
Description

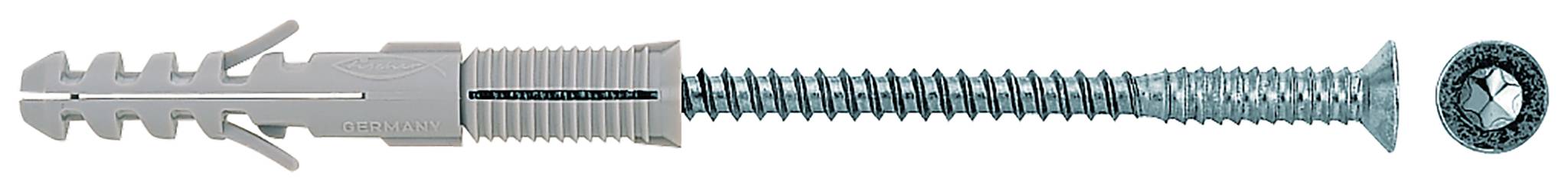

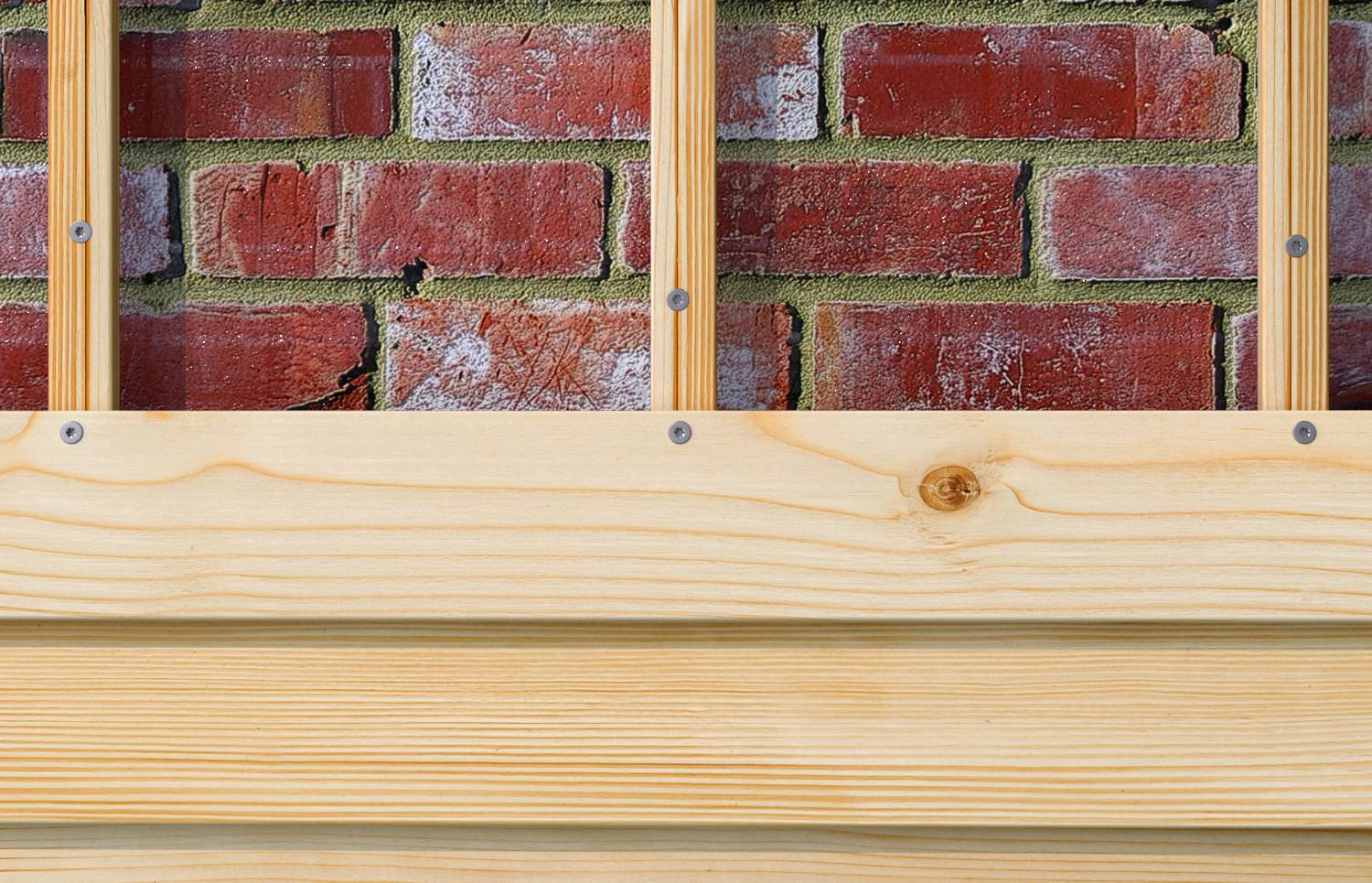

the fischer S 10 J adjustment plug is a special plug for continuously adjustable distance fixing of wood constructions in solid materials. The special plug consists of a dowel sleeve made of high-quality polyamide and the fischer JS adjustment screw with two threads. The adjustment plug is set in the time-saving through-hole mounting. After screwing in the screw, the distance to the component can be adjusted continuously by changing the direction of rotation. the fischer S 10 J adjusting plug is ideal for fixing wooden substructures made of wood panels with a thickness of 20 to 25 mm.
This text is machine translated.
This text is machine translated.
Features
- Made from high-quality polyamide
- Infinitely adjustable substructure. This saves wedges and blocks for fixing
- Universal application in solid building materials and wood constructions.
