Fischer 88625 Window frame plug 75 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Min. Drill hole depth for through-hole mounting: 90 mm
- Min. Anchoring depth: 50 mm
- Max. Thickness of the mounting part: 15 mm
- (Ø)
10 mm
- Product type
Window frame plug
- Material
Polyamide
- Length
75 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 75 mm
- Suitable for
Brickwork
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. countersunk screw
- Material properties
fibreglass-reinforced
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878636 Fischer 88625 Window frame plug 75 mm 10 mm 50 pc(s)
Description

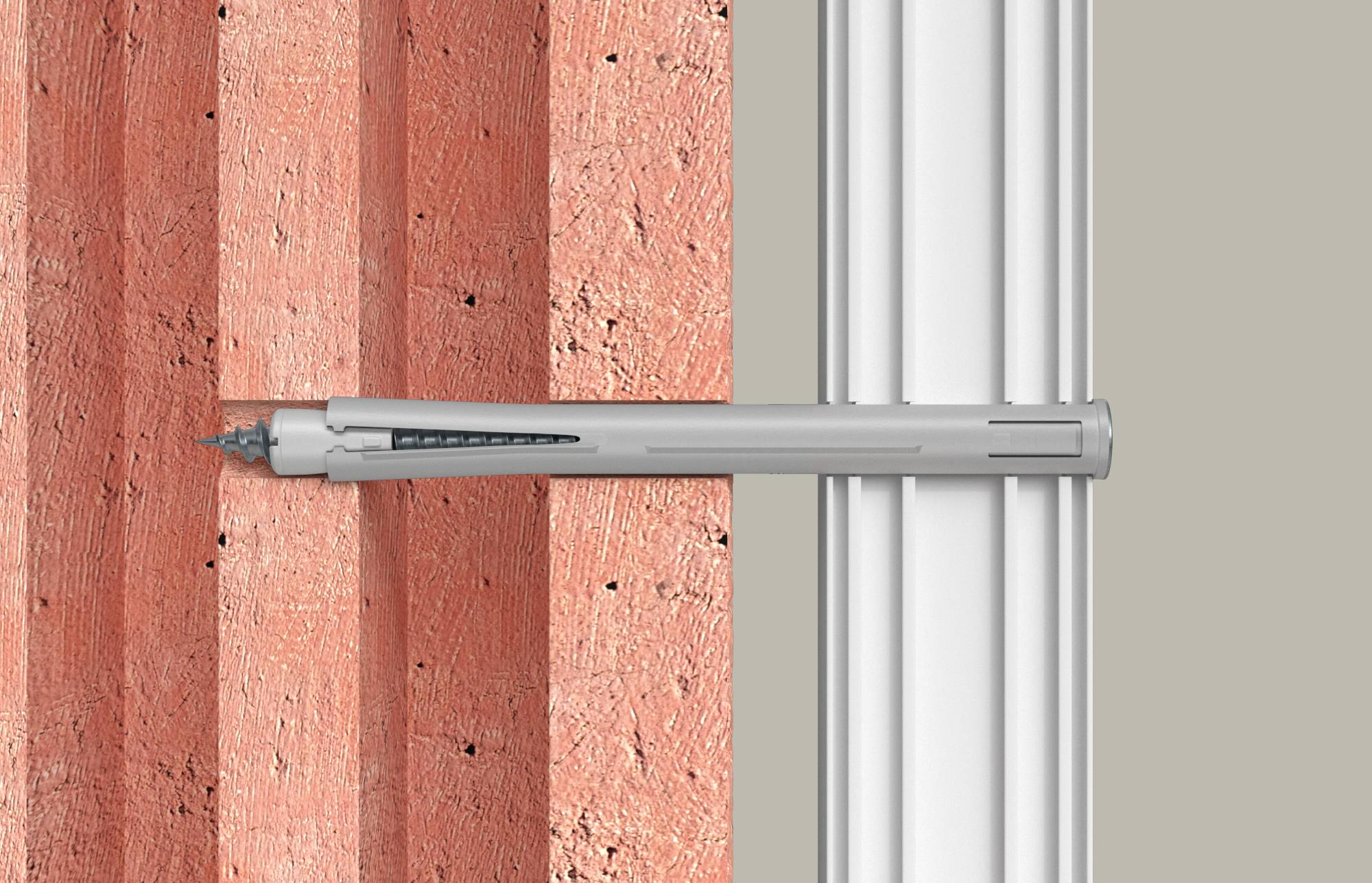

The fischer window frame plug F-S is a special wall plugs for voltage-free Distance between mounting of window and door frames. This consists of a wall plugs made from high-quality polyamide and a countersunk screw with Phillips recording from galvanically zinc-plated steel. The F-S is time-saving in the through-hole mounting. When tightening screw the with glass fiber-reinforced plastic cone into the dowels sleeve, spreads on and tightens against the drill hole wall. In this way, the window frame tension-free in full-hole and construction materials.
