Fischer 88629 F 10 S 165 Window frame plug 165 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Window frame plug
- Material
Polyamide
- Length
165 mm
- Dim
(Ø x L) 10 mm x 165 mm
- Suitable for
Concrete
Cored bricks
Flintlime bricks
Flintlime hollow bricks
Solid stone
Solid brick
- Content
50 pc(s)
- Features
incl. countersunk screw
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 482262 Fischer 88629 F 10 S 165 Window frame plug 165 mm 10 mm 50 pc(s)
Description

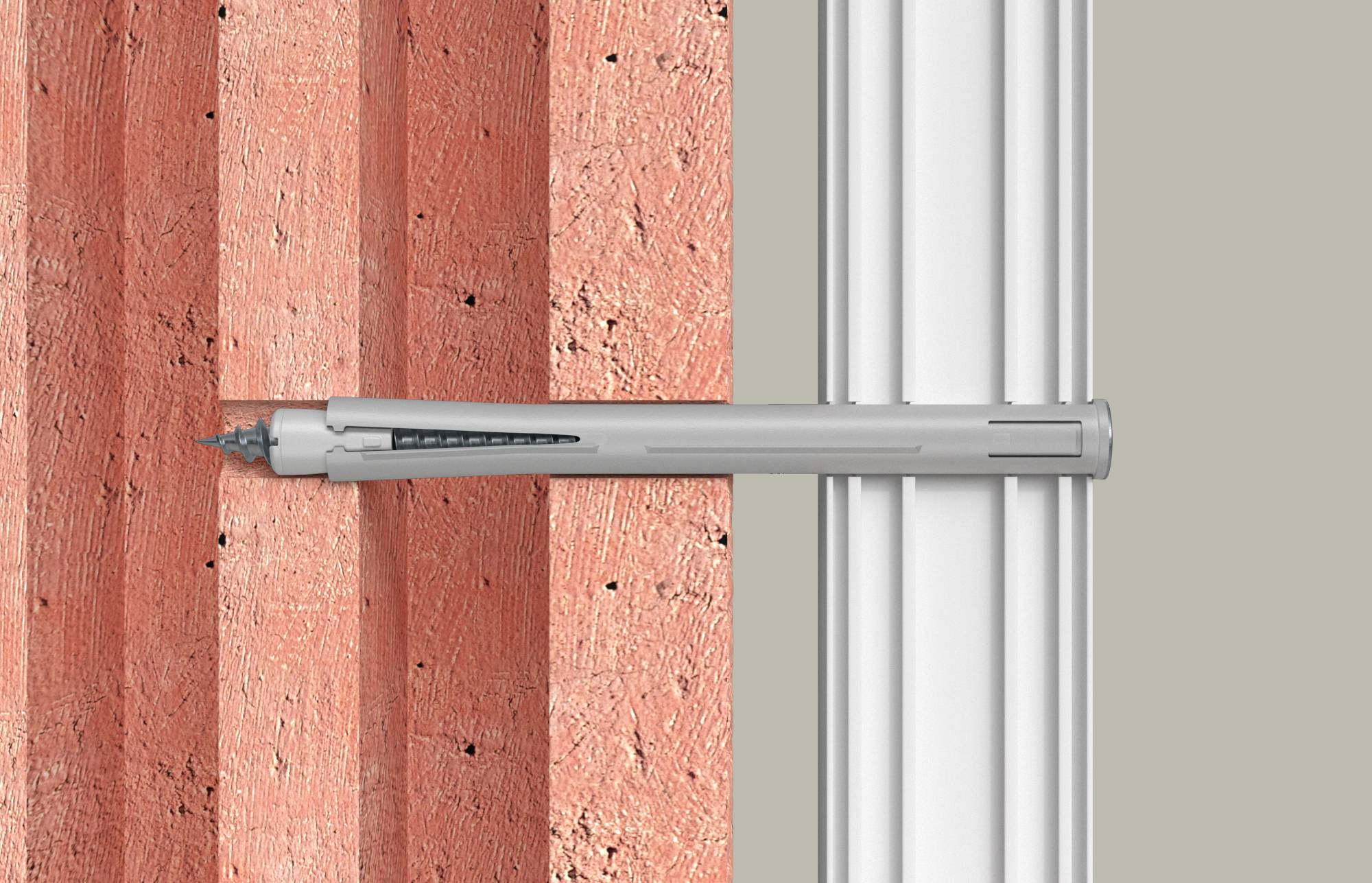

the fischer F-S window frame plug is a special plug for voltage-free distance mounting of window and door frames. This consists of a dowel made of high-quality polyamide and a countersunk screw with cross-recess made of galvanized steel. The F-S is time-saving in the through-hole assembly. When the screw is tightened, the plastic cone reinforced with glass fiber is pulled into the dowel sleeve, stretched and clamped against the hole wall. This means that the window frame is attached stress-free in full and perforated building materials.
This text is machine translated.
This text is machine translated.
Features
- Cap covers the screw head from
- Voltage-free and long-lasting fastening of the frame. Continuous thread prevents to the frame
- Use for all full-hole and construction materials reduces complexity
- Train and pressure tight attachment of metal and plastic profiles.
