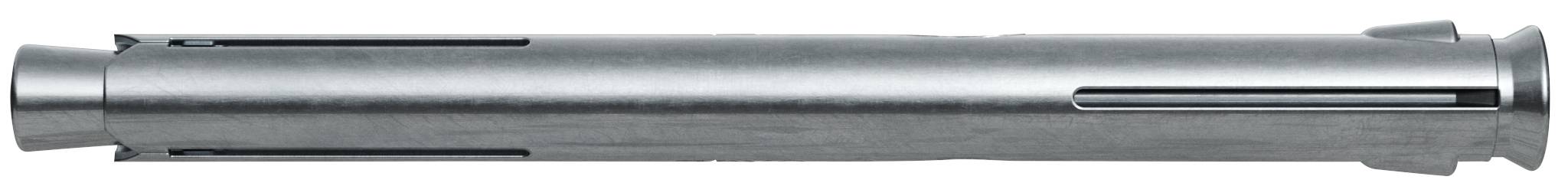

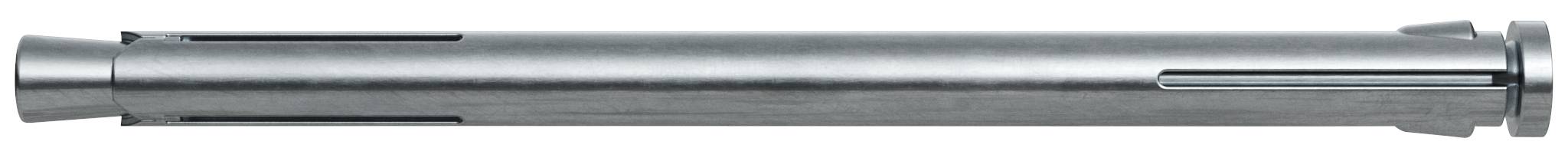

Fischer 88664 Door/window frame plug 112 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Effective anchoring depth: 30 mm
- Min. Drill hole depth for through-hole mounting: 130 mm
- Max. Thickness of the mounting part: 82 mm
- (Ø)
8 mm
- Product type
Door/window frame plug
- Material
Steel
- Length
112 mm
- Dim
(Ø x L) 8 mm x 112 mm
- Suitable for
Brickwork
- Content
100 pc(s)
- Outside Ø
8 mm
- Features
incl. raised head screw
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877835 Fischer 88664 Door/window frame plug 112 mm 8 mm 100 pc(s)
Description

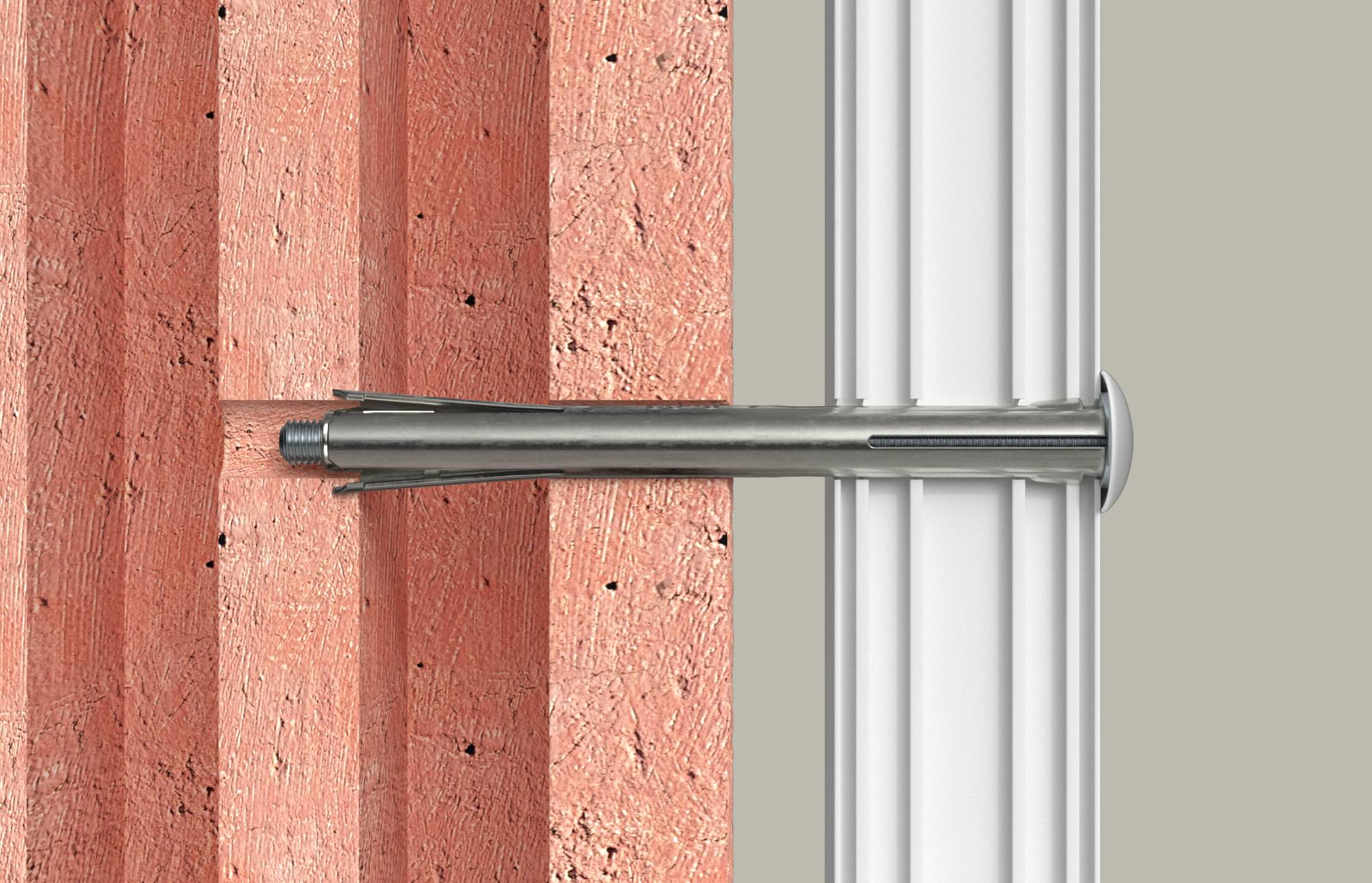

The fischer metal frame plug F8M is a special wall plugs for voltage-free Distance between mounting of window and door frames. This consists of a metal sleeve and a raised head screw from galvanically zinc-plated steel. The F8M is time-saving in the through-hole mounting. When tightening screw, the cone in the dowels sleeve, spreads on and tightens against the drill hole wall. In this way, the window frame tension-free in full-hole and construction materials. The fischer metal frame plug F8M is in addition to the mounting of window and door frame also for squares.
