Fischer 88672 F 10 M 92 Door/window frame plug 92 mm 10 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Door/window frame plug
- Material
Metal
Steel
- Length
92 mm
- Dim
(Ø x L) 10 mm x 92 mm
- Suitable for
Concrete
Cored bricks
Flintlime bricks
Flintlime hollow bricks
Solid stone
Solid brick
- Content
100 pc(s)
- Features
incl. countersunk screw
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 482321 Fischer 88672 F 10 M 92 Door/window frame plug 92 mm 10 mm 100 pc(s)
Description

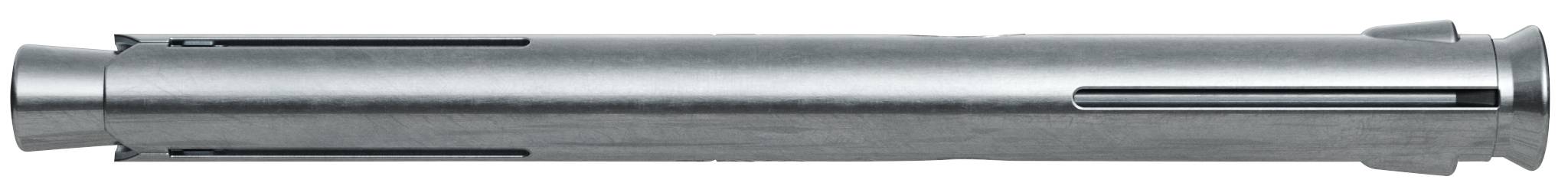

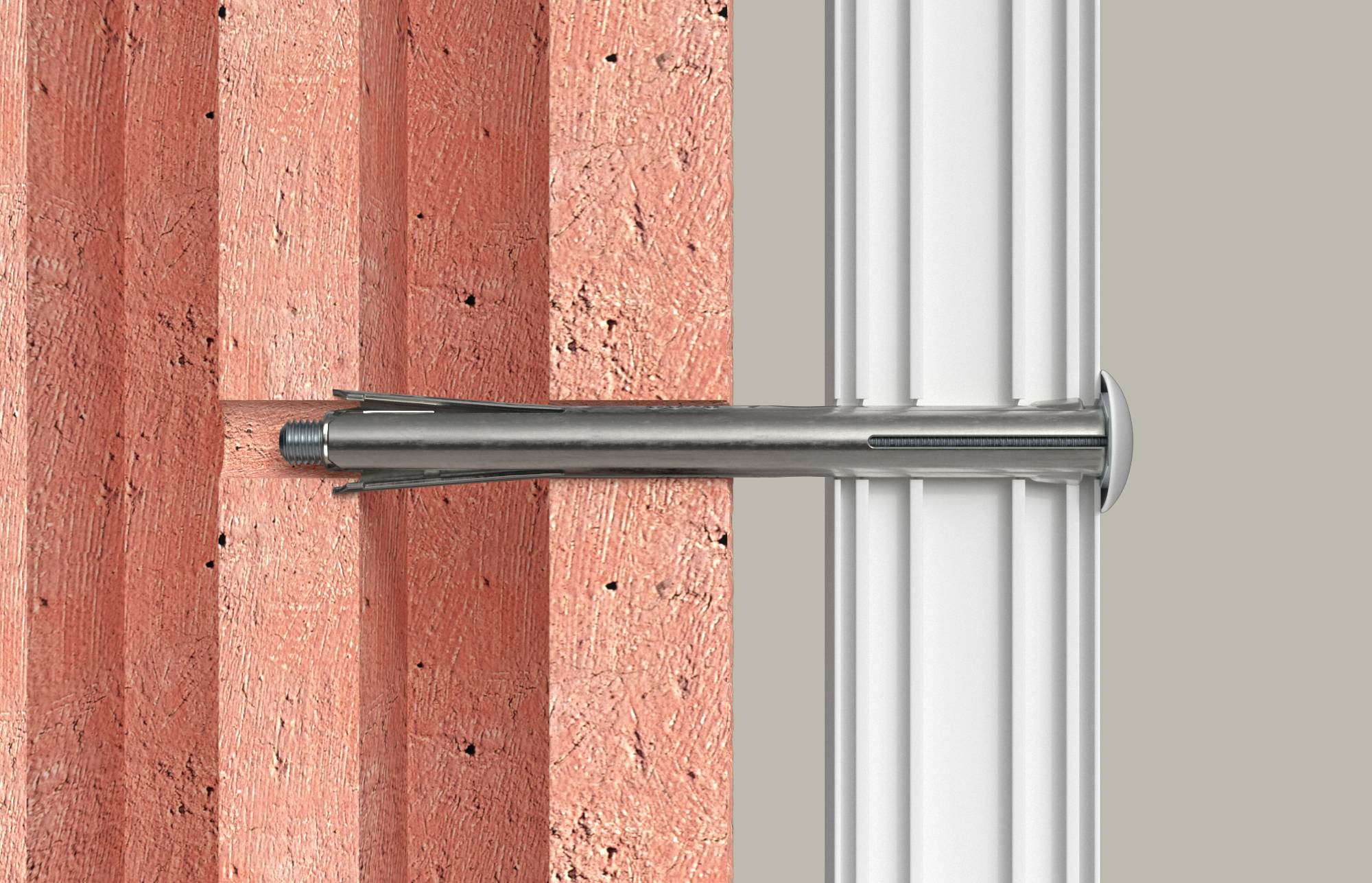

The fischer metal frame plug F10M is a special wall plugs for voltage-free Distance between mounting of window and door frames. This consists of a metal sleeve and a countersunk head screw from galvanically zinc-plated steel. The F10M is time-saving in the through-hole mounting. When tightening screw, the cone in the dowels sleeve, spreads on and tightens against the drill hole wall. In this way, the window frame tension-free in full-hole and construction materials. The fischer metal frame plug F10M is in addition to the mounting of window and door frame also for squares.
This text is machine translated.
This text is machine translated.
Features
- With countersunk head screw
- Voltage-free and long-lasting fastening of the frame. Continuous thread prevents to the frame
- Use for all full-hole and construction materials reduces complexity
- Train and pressure tight attachment of metal and plastic profiles.
