Name: Fischer 90286 FIS A M 12 x 210 Anchor rod 210 mm 14 mm 10 pc(s)
Brand: Fischer
SKU: 482456

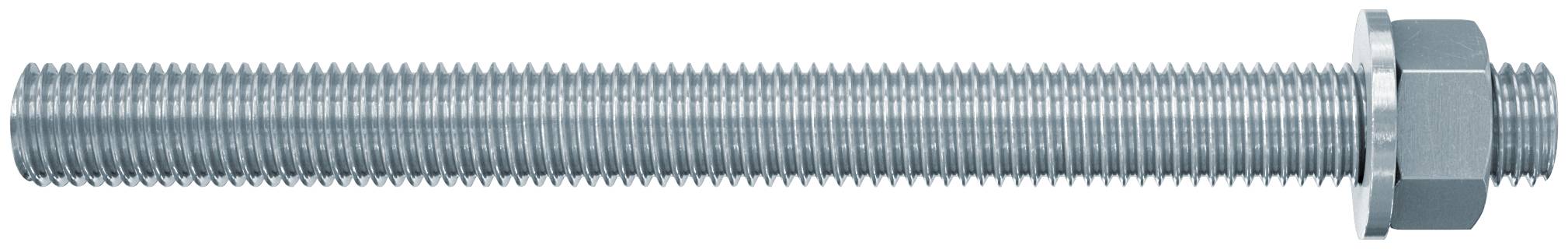

A long metal threaded rod with a hex nut and washer on the right end.

3D illustration of wooden roof trusses and beams inside a timber-frame structure, showing construction framing against a blue sky.

Blue steel support frames stand before a white building facade with three windows and a gravel ground.

Close-up of a red steel column base plate bolted to a concrete floor with four anchor bolts.

Metal anchor bolt with washer and nut embedded horizontally in concrete, securing a silver L-shaped bracket to a wall.

Cutaway of a masonry expansion anchor bolt installed through a brick wall, showing the sleeve expanding to grip the hole.

A threaded bolt anchors into a speckled wall, secured with a washer, nut, and L-shaped metal bracket on the right.

Threaded bolt anchored through a wall into a metal bracket, shown in cross-section to illustrate fastening into masonry or concrete.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

(Ø): 14 mm

Product type: Anchor rod

Material: Steel

Length: 210 mm

Screw diameter: 12 mm

Dim: (Ø x L) 14 mm x 210 mm

Content: 10 pc(s)

Material properties: zinc galvanized

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Length

Material

(Ø)

Dim

Content

Screw diameter

Fischer 44969 FIS A M 10 x 170 Anchor rod 170 mm 12 mm 10 pc(s)

Item no:477731

Unavailable

Conrad Electronic

170 mm

Steel

12 mm

(Ø x L) 12 mm x 170 mm

10 pc(s)

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44971 FIS A M 12 x 120 Anchor rod 120 mm 14 mm 10 pc(s)

Item no:477732

Unavailable

30 Set(s)Conrad Electronic

120 mm

Steel

14 mm

(Ø x L) 14 mm x 120 mm

10 pc(s)

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44972 FIS A M 16 x 130 Anchor rod 130 mm 18 mm 10 pc(s)

Item no:477734

Unavailable

Conrad Electronic

130 mm

Steel

18 mm

(Ø x L) 18 mm x 130 mm

10 pc(s)

16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44973 FIS A M 10 x 170 A4 Anchor rod 170 mm 12 mm 10 pc(s)

Item no:477735

Unavailable

Conrad Electronic

170 mm

Steel

12 mm

(Ø x L) 12 mm x 170 mm

10 pc(s)

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44974 FIS A M 12 x 120 A4 Anchor rod 120 mm 14 mm 10 pc(s)

Item no:477736

Unavailable

Conrad Electronic

120 mm

Steel

14 mm

(Ø x L) 14 mm x 120 mm

10 pc(s)

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44975 FIS A M 16 x 130 A4 Anchor rod 130 mm 18 mm 10 pc(s)

Item no:477737

Unavailable

Conrad Electronic

130 mm

Steel

18 mm

(Ø x L) 18 mm x 130 mm

10 pc(s)

16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 517936 FIS A M 10 x 190 Anchor rod 190 mm 12 mm 10 pc(s)

Item no:1878646

Unavailable

Conrad Electronic

190 mm

Steel

12 mm

(Ø x L) 12 mm x 190 mm

10 pc(s)

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 517938 FIS A M 12 x 200 Anchor rod 200 mm 14 mm 10 pc(s)

Item no:1878647

Unavailable

Conrad Electronic

200 mm

Steel

14 mm

(Ø x L) 14 mm x 200 mm

10 pc(s)

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 517939 FIS A M 16 x 200 Anchor rod 200 mm 18 mm 10 pc(s)

Item no:1877848

Unavailable

Conrad Electronic

200 mm

Steel

18 mm

(Ø x L) 18 mm x 200 mm

10 pc(s)

16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 519390 FIS A M 8 x 90 Anchor rod 90 mm 10 mm 10 pc(s)

Item no:1877849

Unavailable

Conrad Electronic

90 mm

Steel

10 mm

(Ø x L) 10 mm x 90 mm

10 pc(s)

8 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 482456 Fischer 90286 FIS A M 12 x 210 Anchor rod 210 mm 14 mm 10 pc(s)

Description

the fischer FIS A anchor rod is made of galvanized steel of steel grade 5.8. The anchor rod is a system component for the various fischer injection mortar. In combination with the injection mortars, the fischer anchor rod is suitable for all surfaces or approved. For the maximum load capacity of the system, thorough hole cleaning is recommended. The system is suitable for the attachment of steel constructions, stairs and machines in the interior.

Functions:
The FIS A anchor rod is suitable for pre-insertion and through-hole mounting.
The FIS A anchor rod is inserted into the drill hole by hand with a slight rotation up to the bottom of the drill hole.

This text is machine translated.

Features

The universal solution for various fischer injection mortar. For a manageable assortment and simplified storage
in combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concrete
Optimal load adjustment through variable anchoring depth. This reduces assembly and material costs
for anchors with injection mortars FIS SB, FIS EM Plus, FIS V, FIS VL, assembly mortar and assembly mortar GREEN
approval ETA-02/0024, ETAG 001-5, DOP No. 0007, DOP No. 0072, DOP No. 0094, DOP No. 0094 - EN, DOP No. 0756-CPD-0301, ESR-3572

Description

Features

The universal solution for various fischer injection mortar. For a manageable assortment and simplified storage
in combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concrete
Optimal load adjustment through variable anchoring depth. This reduces assembly and material costs
for anchors with injection mortars FIS SB, FIS EM Plus, FIS V, FIS VL, assembly mortar and assembly mortar GREEN
approval ETA-02/0024, ETAG 001-5, DOP No. 0007, DOP No. 0072, DOP No. 0094, DOP No. 0094 - EN, DOP No. 0756-CPD-0301, ESR-3572
