Name: Fischer 90293 FIS A M 20 x 290 Anchor rod 290 mm 24 mm 10 pc(s)
Brand: Fischer
SKU: 482465

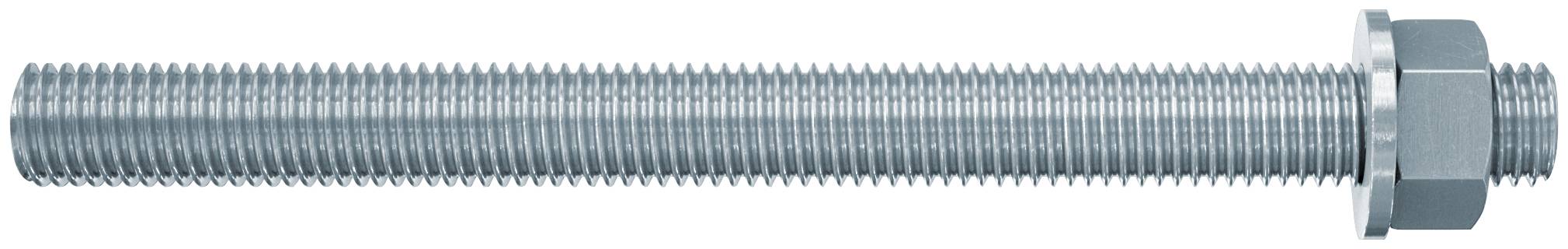

A long threaded metal rod with a hex nut and washer on one end.

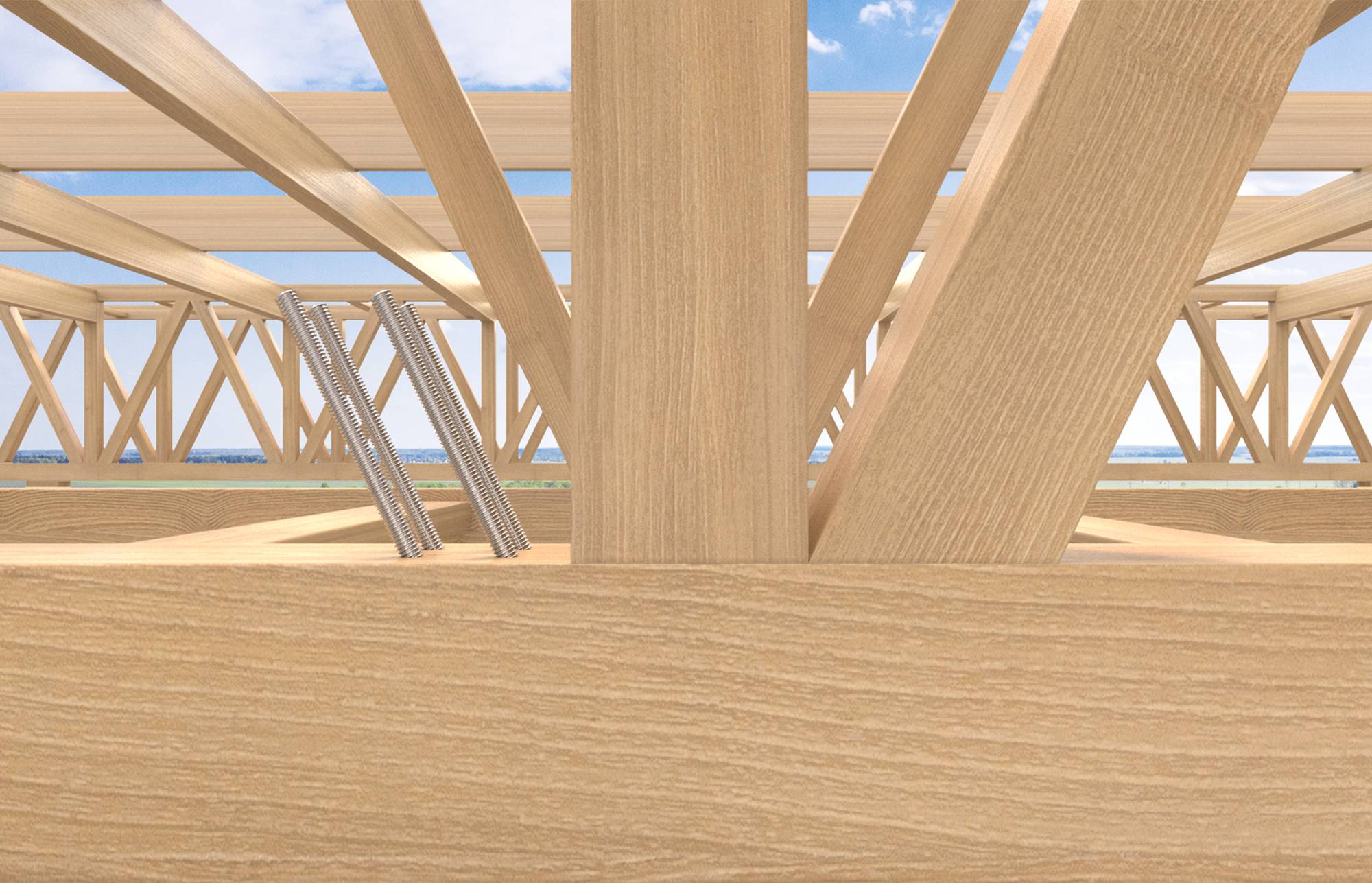

Close-up of a wooden truss framework with angled support beams and a large central post against a blue sky.

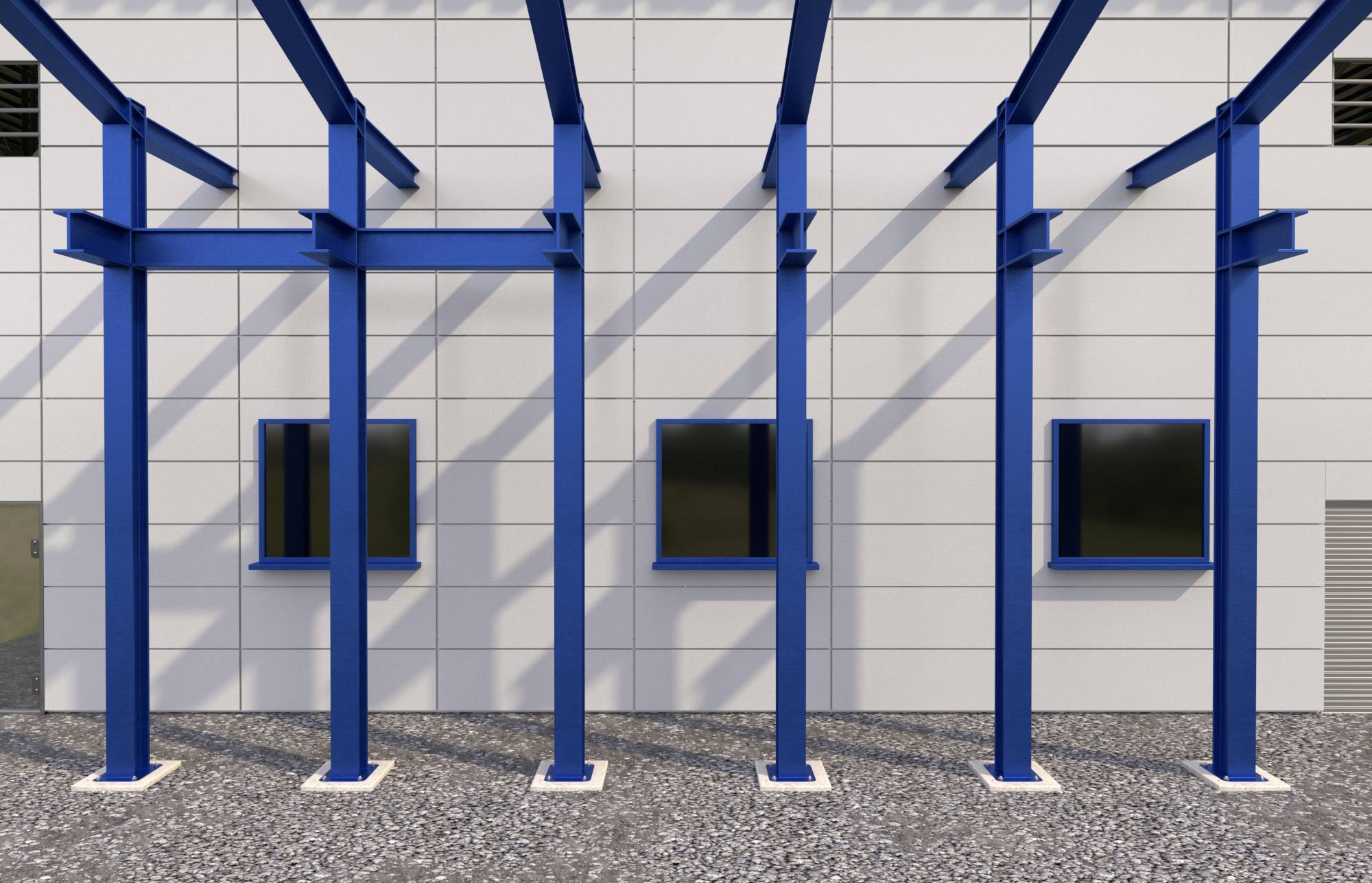

Blue steel canopy frame with evenly spaced columns in front of a white building with three windows.<br>

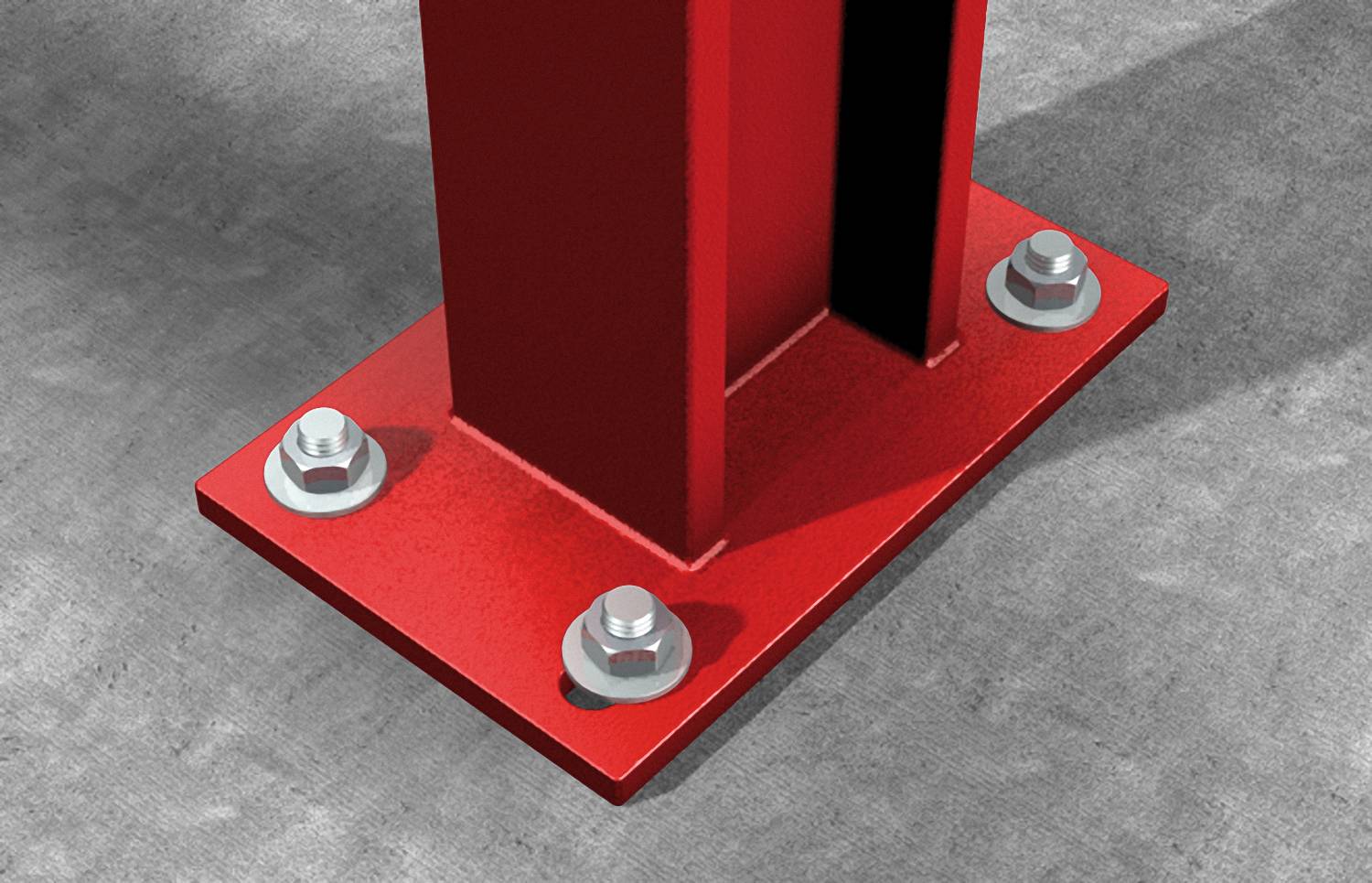

Red steel post base plate bolted to a concrete floor with four anchor bolts.

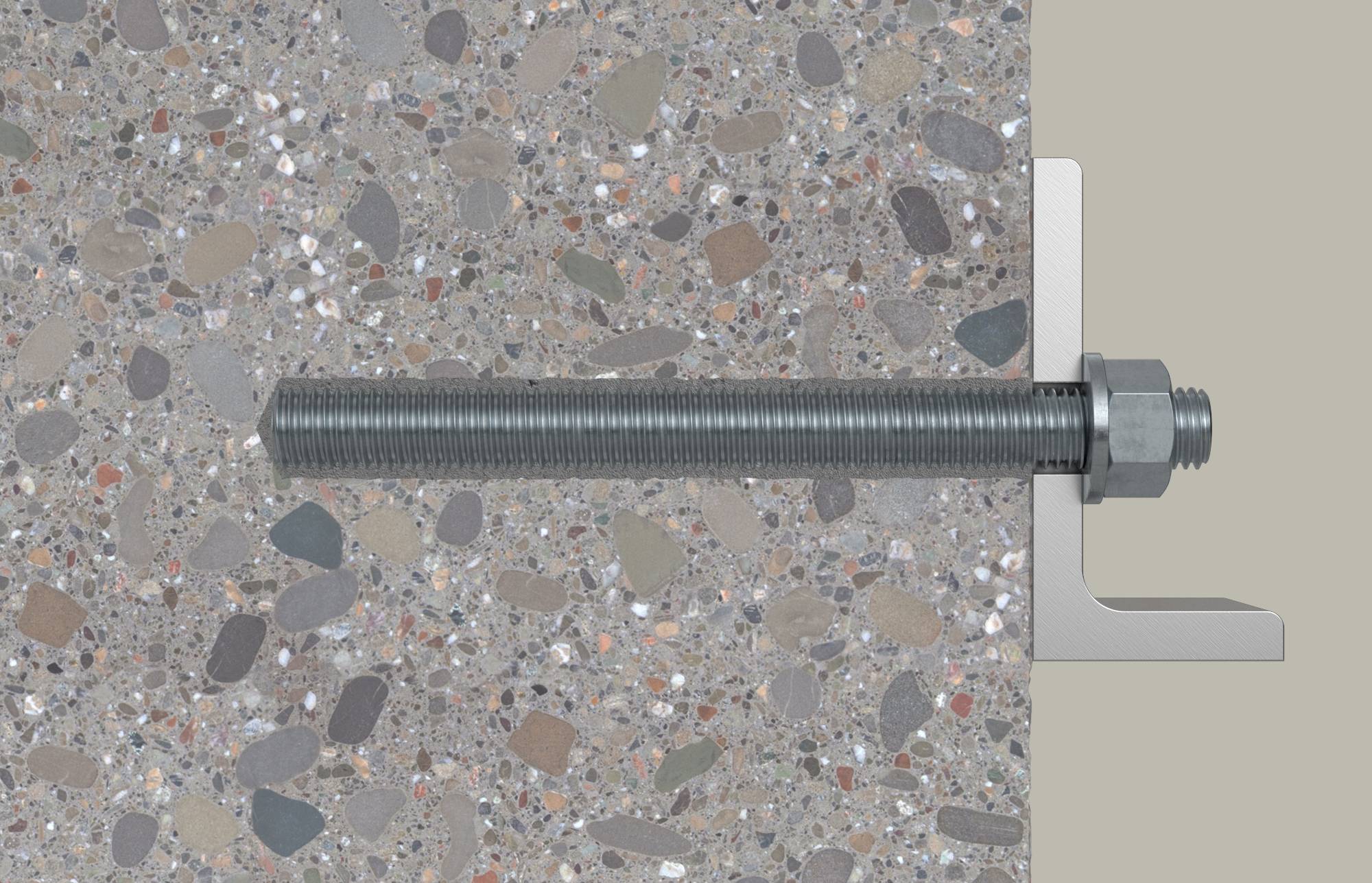

Horizontal threaded anchor bolt embedded in concrete, passing through a steel bracket with a washer and nut on the right side.

Cutaway view of a sleeve anchor embedded in a brick wall, showing the threaded bolt, expansion sleeve, and nut securing a metal bracket.

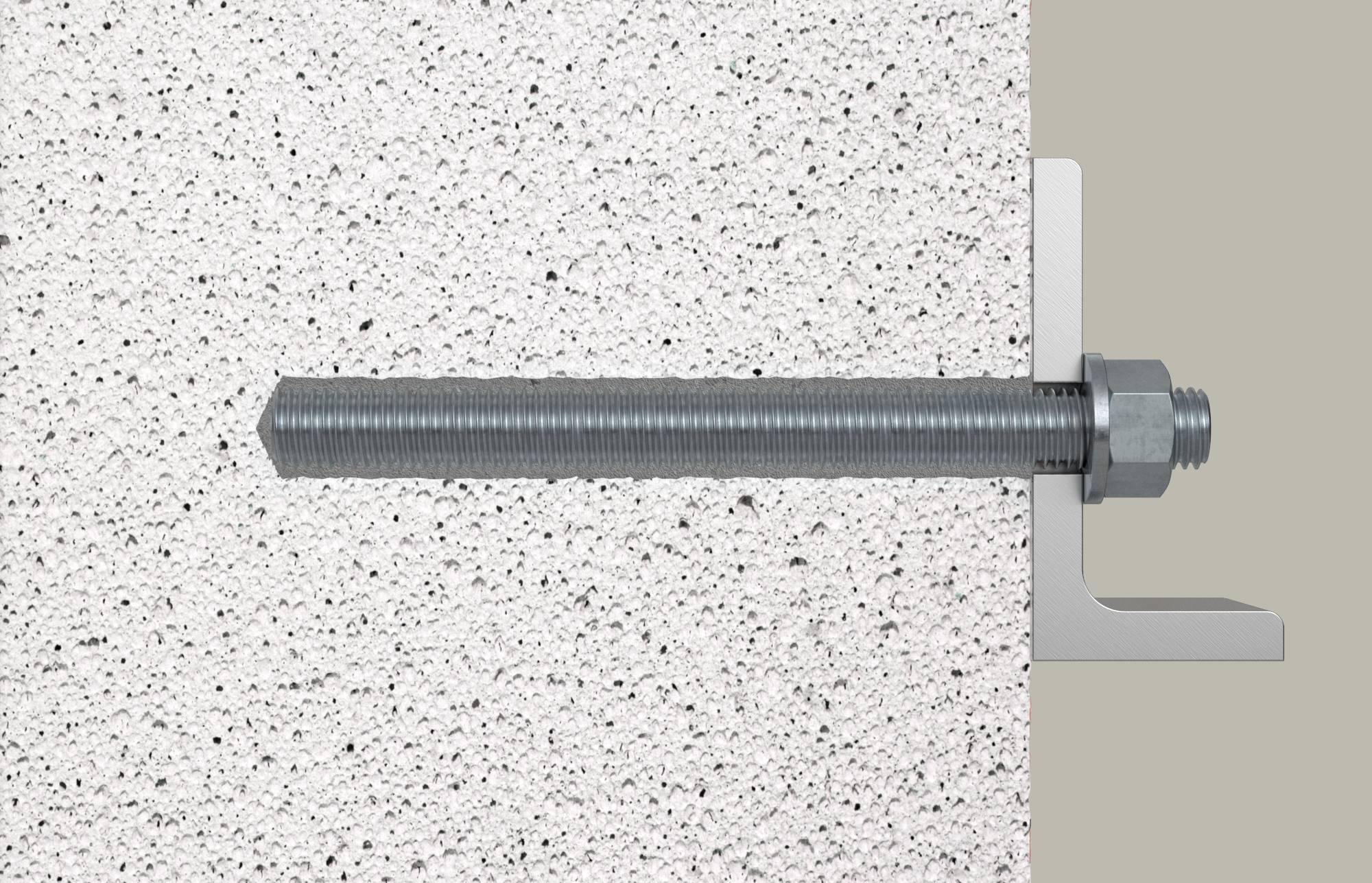

Anchoring bolt installed in a concrete wall, with a threaded rod extending outward and secured by a hex nut and L-shaped metal bracket.<br>

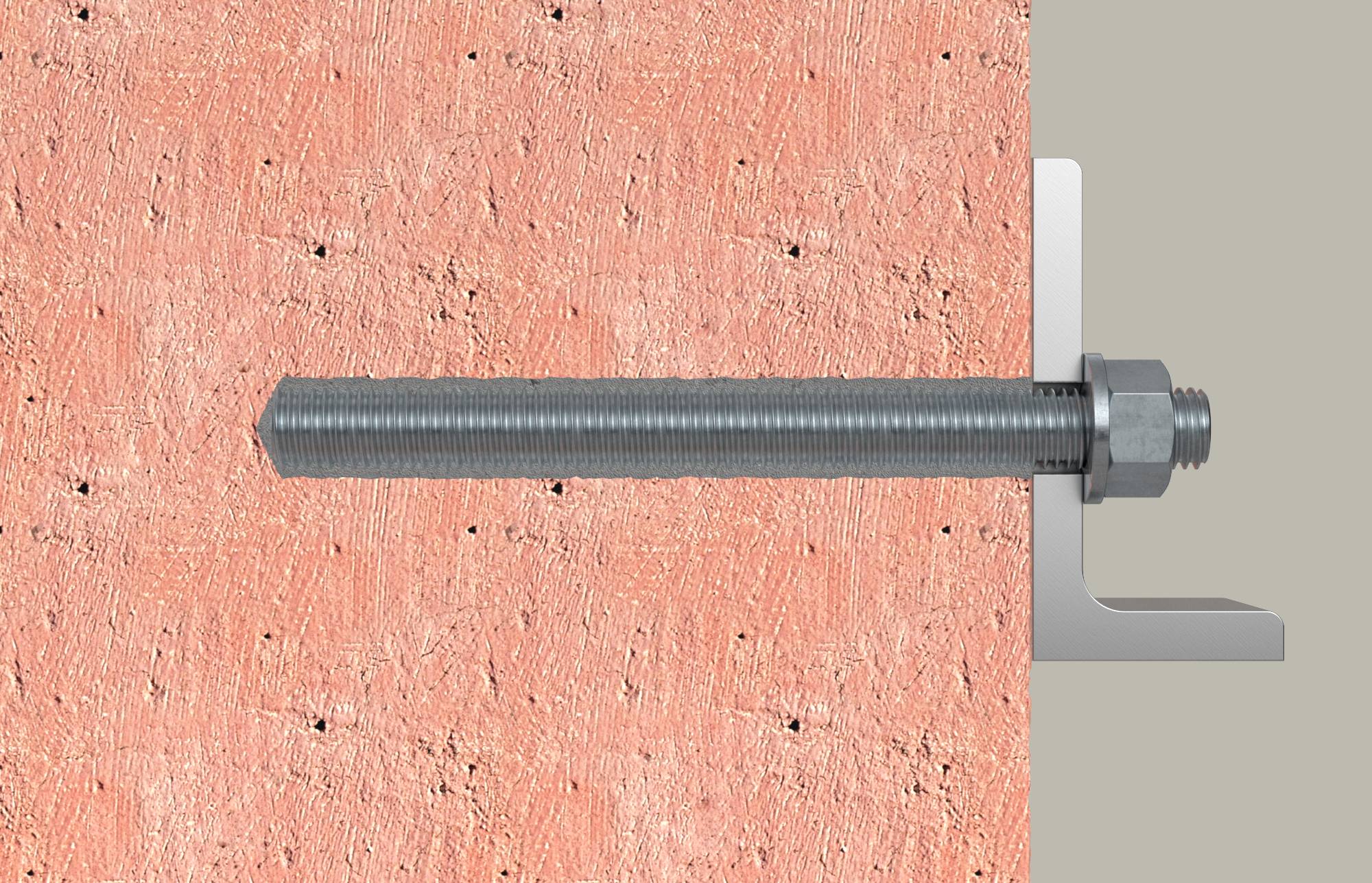

Threaded anchor bolt installed through a concrete wall into a metal bracket, with nut tightened on the exposed end.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

(Ø): 24 mm

Product type: Anchor rod

Material: Steel

Length: 290 mm

Screw diameter: 20 mm

Dim: (Ø x L) 24 mm x 290 mm

Content: 10 pc(s)

Material properties: zinc galvanized

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Length

Material

(Ø)

Dim

Content

Screw diameter

Fischer 44969 FIS A M 10 x 170 Anchor rod 170 mm 12 mm 10 pc(s)

Item no:477731

Unavailable

Conrad Electronic

170 mm

Steel

12 mm

(Ø x L) 12 mm x 170 mm

10 pc(s)

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44971 FIS A M 12 x 120 Anchor rod 120 mm 14 mm 10 pc(s)

Item no:477732

Unavailable

30 Set(s)Conrad Electronic

120 mm

Steel

14 mm

(Ø x L) 14 mm x 120 mm

10 pc(s)

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44972 FIS A M 16 x 130 Anchor rod 130 mm 18 mm 10 pc(s)

Item no:477734

Unavailable

Conrad Electronic

130 mm

Steel

18 mm

(Ø x L) 18 mm x 130 mm

10 pc(s)

16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44973 FIS A M 10 x 170 A4 Anchor rod 170 mm 12 mm 10 pc(s)

Item no:477735

Unavailable

Conrad Electronic

170 mm

Steel

12 mm

(Ø x L) 12 mm x 170 mm

10 pc(s)

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44974 FIS A M 12 x 120 A4 Anchor rod 120 mm 14 mm 10 pc(s)

Item no:477736

Unavailable

Conrad Electronic

120 mm

Steel

14 mm

(Ø x L) 14 mm x 120 mm

10 pc(s)

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44975 FIS A M 16 x 130 A4 Anchor rod 130 mm 18 mm 10 pc(s)

Item no:477737

Unavailable

Conrad Electronic

130 mm

Steel

18 mm

(Ø x L) 18 mm x 130 mm

10 pc(s)

16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 517936 FIS A M 10 x 190 Anchor rod 190 mm 12 mm 10 pc(s)

Item no:1878646

Unavailable

Conrad Electronic

190 mm

Steel

12 mm

(Ø x L) 12 mm x 190 mm

10 pc(s)

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 517938 FIS A M 12 x 200 Anchor rod 200 mm 14 mm 10 pc(s)

Item no:1878647

Unavailable

Conrad Electronic

200 mm

Steel

14 mm

(Ø x L) 14 mm x 200 mm

10 pc(s)

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 517939 FIS A M 16 x 200 Anchor rod 200 mm 18 mm 10 pc(s)

Item no:1877848

Unavailable

Conrad Electronic

200 mm

Steel

18 mm

(Ø x L) 18 mm x 200 mm

10 pc(s)

16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 519390 FIS A M 8 x 90 Anchor rod 90 mm 10 mm 10 pc(s)

Item no:1877849

Unavailable

Conrad Electronic

90 mm

Steel

10 mm

(Ø x L) 10 mm x 90 mm

10 pc(s)

8 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 482465 Fischer 90293 FIS A M 20 x 290 Anchor rod 290 mm 24 mm 10 pc(s)

Description

the fischer FIS A anchor rod is made of galvanized steel of steel grade 5.8. The anchor rod is a system component for the various fischer injection mortar. In combination with the injection mortars, the fischer anchor rod is suitable for all surfaces or approved. For the maximum load capacity of the system, thorough hole cleaning is recommended. The system is suitable for the attachment of steel constructions, stairs and machines in the interior.

Functions:
The FIS A anchor rod is suitable for pre-insertion and through-hole mounting.
The FIS A anchor rod is inserted into the drill hole by hand with a slight rotation up to the bottom of the drill hole.

This text is machine translated.

Features

The universal solution for various fischer injection mortar. For a manageable assortment and simplified storage
in combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concrete
Optimal load adjustment through variable anchoring depth. This reduces assembly and material costs
for anchors with injection mortars FIS SB, FIS EM Plus, FIS V, FIS VL, assembly mortar and assembly mortar GREEN
approval ETA-02/0024, ETAG 001-5, DOP No. 0007, DOP No. 0072, DOP No. 0094, DOP No. 0094 - EN, DOP No. 0756-CPD-0301, ESR-3572

Description

Features

The universal solution for various fischer injection mortar. For a manageable assortment and simplified storage
in combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concrete
Optimal load adjustment through variable anchoring depth. This reduces assembly and material costs
for anchors with injection mortars FIS SB, FIS EM Plus, FIS V, FIS VL, assembly mortar and assembly mortar GREEN
approval ETA-02/0024, ETAG 001-5, DOP No. 0007, DOP No. 0072, DOP No. 0094, DOP No. 0094 - EN, DOP No. 0756-CPD-0301, ESR-3572
