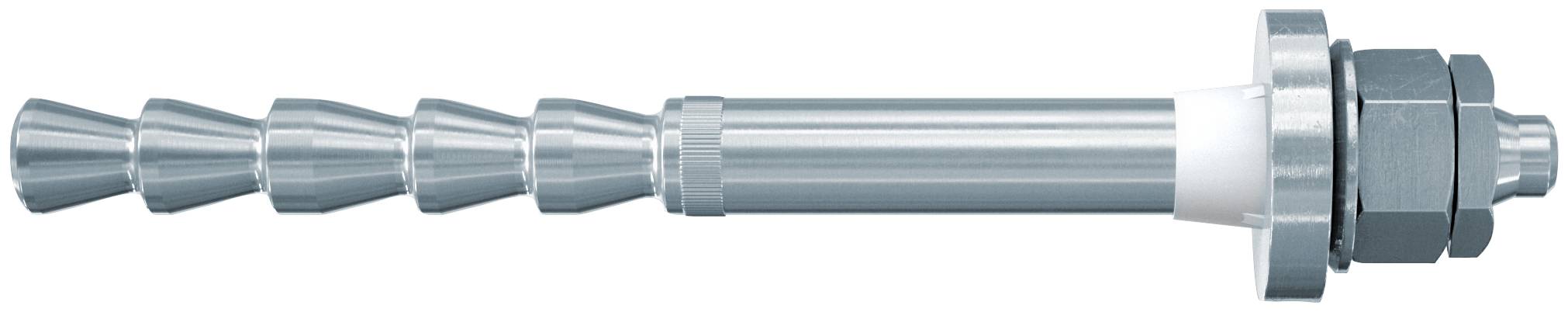

Fischer 92020 FHB-A dyn 16 x 125/25 Highbond anchor 150 mm 18 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
18 mm
- Product type
Highbond anchor
- Material
Steel
- Length
150 mm
- Dim
(Ø x L) 18 mm x 150 mm
- Suitable for
Concrete
- Content
10 pc(s)
- Features
incl. hex nut
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 482566 Fischer 92020 FHB-A dyn 16 x 125/25 Highbond anchor 150 mm 18 mm 10 pc(s)
Description
The fischer Highbond anchor dynamic FHB-A dynamic is made from electro-galvanised. The spreizende Highbond anchor is controlled with the high bond special mortar FIS HB processed. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. The injection mortar FIS HB closes with setting process the ring gap in the add-on and guarantees an optimal load distribution. This allows dynamic threshold and alternating loads to be recorded. The fischer Highbond anchor dynamic FHB-A dynamic is ideally suited to indoor guide rails of lifts, industrial robots or portal and ceiling running cranes.
This text is machine translated.
This text is machine translated.
Features
- Recording of dynamic threshold and alternating loads through optimal load distribution
- Safe after spreading with dynamic load of cones geometry
- Approved for cracked concrete.
