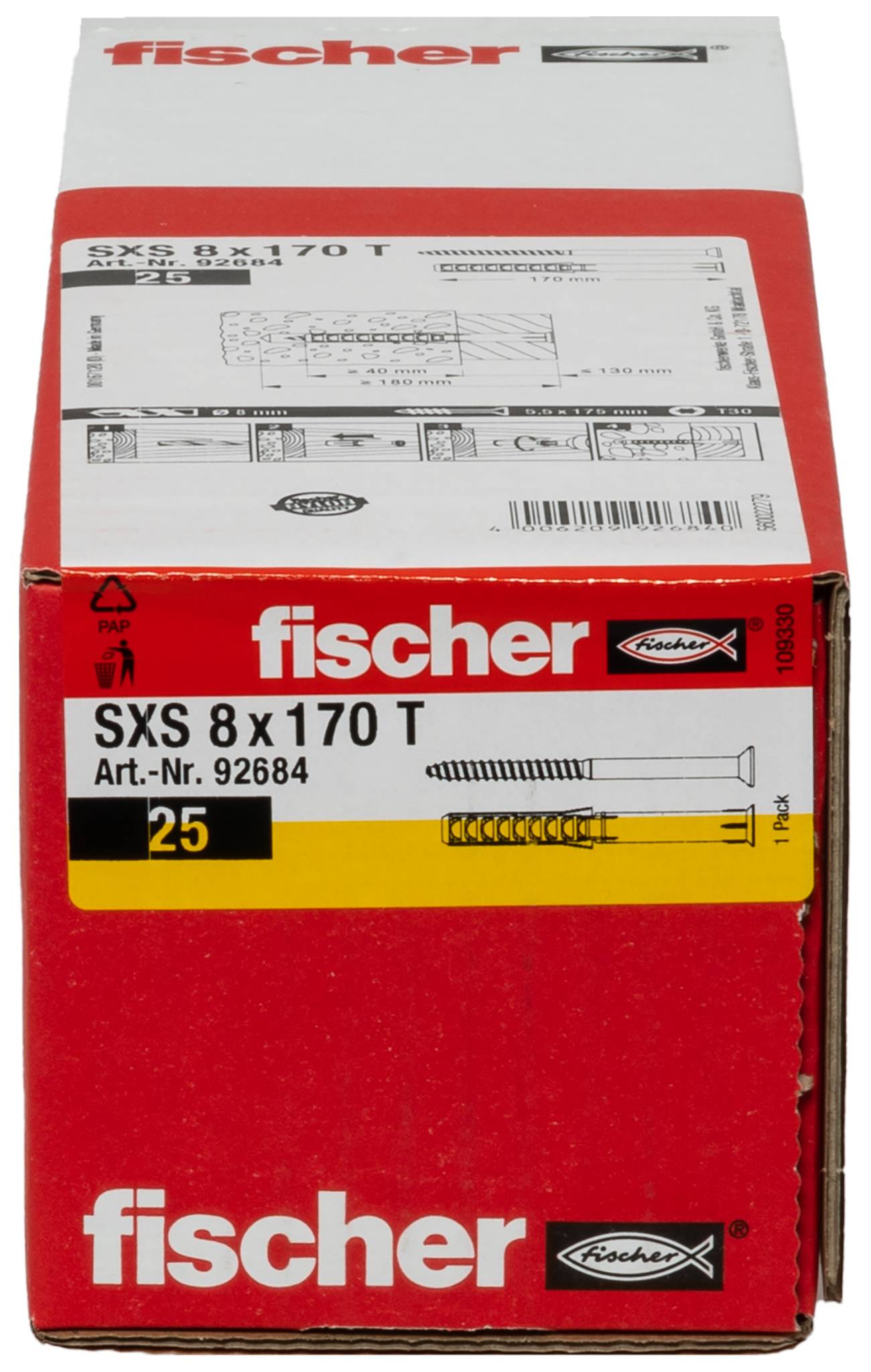

Fischer 92684 SXS Plug (long) 170 mm 8 mm 25 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

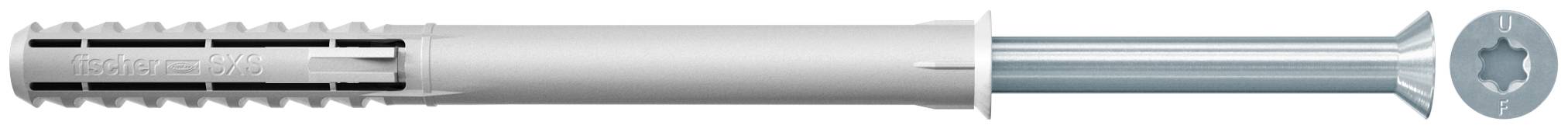

Long shaft bolt SXS 8x170 Z
- The optimal interaction of THE SXS with the fischer CO-NA screw (CO-nisch NA-spreading) enables the highest load-bearing capacity in solid construction materials and cracked concrete. This makes economic attachment possibleThe plug expands into a crack due to the CO-NA screw. This is confirmed by the approval of a plastic dowel for single point attachmentsThe large diameter of the CO-NA screw ensures that high transverse loads are securely applied. This means fewer attachment points are needed
Technical specifications
- Distance mounting: No. Through-hole mounting: Yes Colour: grey
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
170 mm
- Dim
(Ø x L) 8 mm x 170 mm
- Suitable for
Concrete
Cored bricks
Flintlime hollow bricks
Flintlime bricks
Natural stone
Foamed concrete wall
Solid brick
- Content
25 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699443 Fischer 92684 SXS Plug (long) 170 mm 8 mm 25 pc(s)
Description

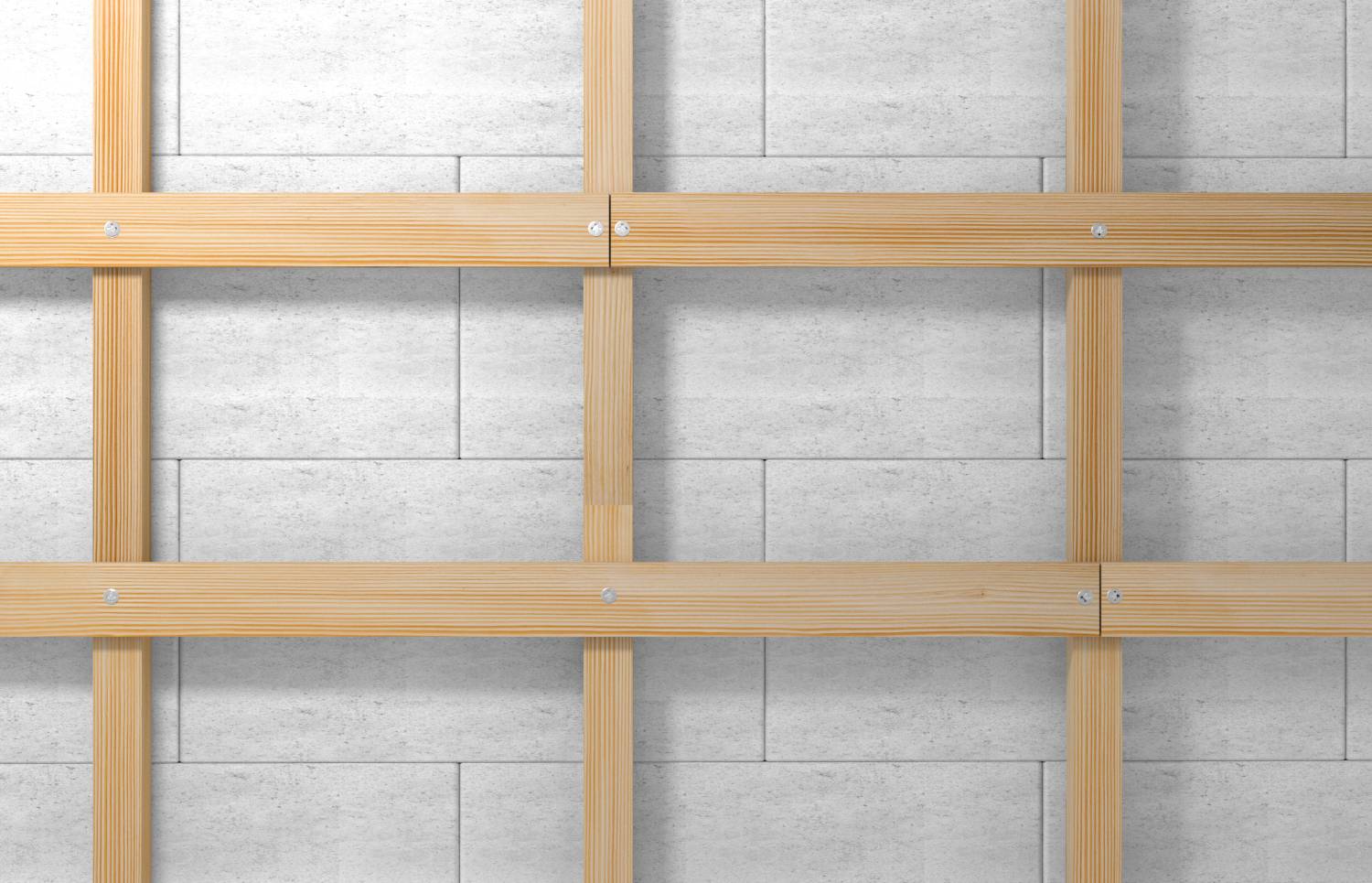

The Fischer SXS long-shaft plug is a plug made of high-quality nylon. Thanks to the CO-NA screw, THE SXS also spreads in four directions in the crack. This guarantees uniform load discharge and guarantees high stability in concrete and solid substrates. The high load-carrying capacity, the absorption of high transverse loads and the high bending torque make the long shaft anchor bolt especially economical in conjunction with the low anchoring depth of 50 mm. The approval for single point fixing in concrete offers additional safety. The SXS with countersunk head screw is particularly suitable for fixing wooden substructures.
