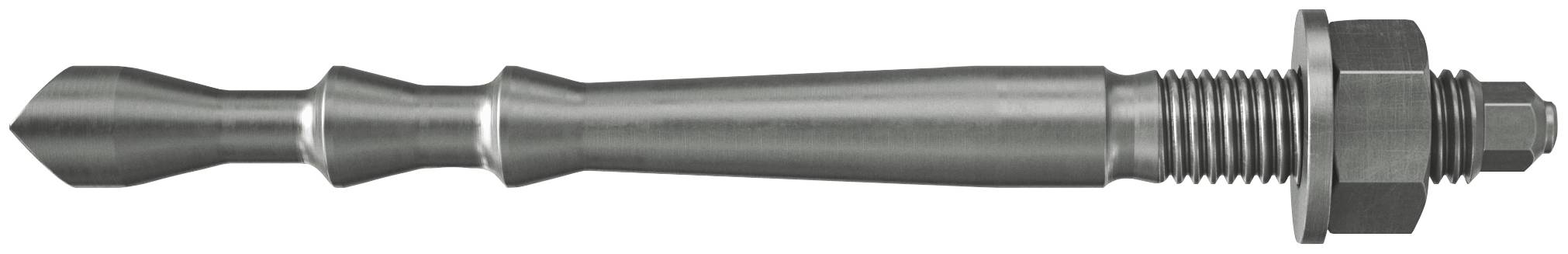

Fischer 97623 FHB II-A L M12 x 120/40 A4 Highbond anchor rod 160 mm 14 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
14 mm
- Product type
Highbond anchor rod
- Material
Steel
- Length
160 mm
- Screw diameter
12 mm
- Dim
(Ø x L) 14 mm x 160 mm
- Suitable for
Concrete
- Content
10 pc(s)
- Features
incl. hex nut
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 482823 Fischer 97623 FHB II-A L M12 x 120/40 A4 Highbond anchor rod 160 mm 14 mm 10 pc(s)
Description
The fischer Highbond anchor rod FHB II-A L is made of stainless steel. The spreizende Highbond anchor can be controlled with the high bond special mortar FIS HB or the mortar cartridges FHB II-P and FHB II PF HIGH-SPEED processing. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. With the fischer highbond system FHB II, for example, facades, silo systems and heavy steel constructions in the outdoor area securely fastened.
This text is machine translated.
This text is machine translated.
Features
- Made of stainless steel for attachments in the outdoor area
- When using a mortar cartridge is not drill hole cleaning required. This saves time
- ETA-approval for cracked concrete
- Maximum load values by large anchoring depth. This requires less fixing points and smaller anchor plates
- Optimized for low-axis and edge distances in gerissenem concrete.
