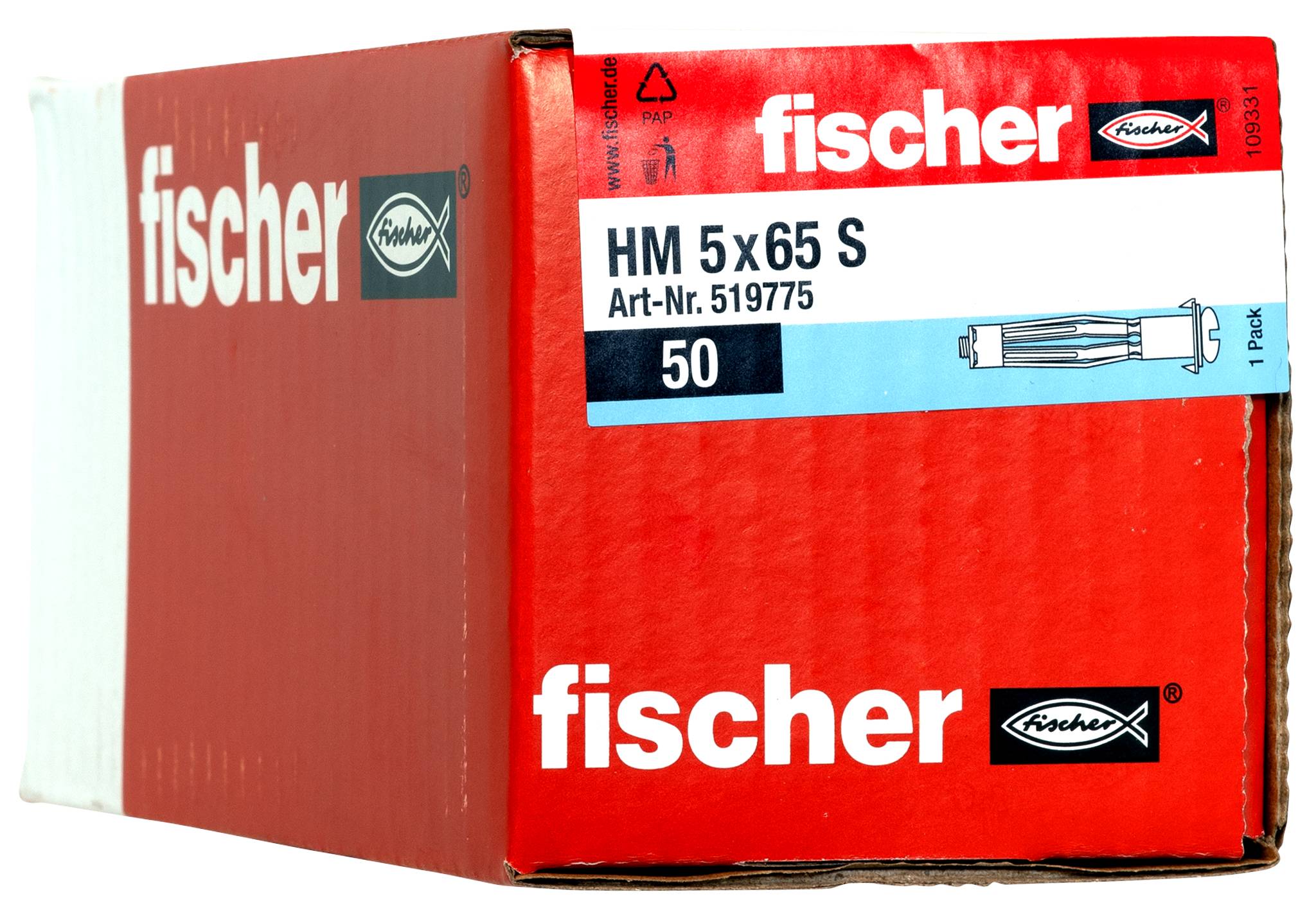

Fischer 519775 HM 5 x 65 S Cavity plug 65 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Min. Drill hole depth: 71 mm
- (Ø)
10 mm
- Product type
Cavity plug
- Material
Metal
- Length
65 mm
- Dim
(Ø x L) 10 mm x 65 mm
- Suitable for
Plasterboard
Prestressed concrete hollow boards
Chipboard
Plywood boards
- Content
50 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879031 Fischer 519775 HM 5 x 65 S Cavity plug 65 mm 10 mm 50 pc(s)
Description
The Fischer HM-S cavity metal plug is a versatile cavity plug with a metric screw for all panel materials with a wall thickness of 3 to 50 mm. The plug is set in the pre-plug mounting together with the assembling pliers of Fischer HM-Z 1. The clamp is used to pull the plug in the cavity against the plate material. The spreading arms fold open and press themselves against the back side of the plate. Alternatively, you can also use a screwdriver or a cordless screwdriver. Due to the metric internal thread the mounting part can be fastened multiple times and released again. The Fischer carbide metal plug is suitable for fixing lamps, images and light wall shelves in the interior.
Advantages
Due to the extensive assortment, the HM is suitable for panel construction materials with a thickness of 3-50 mm and thus for a variety of applications.
The metric internal thread allows multiple loosening and fixing of the attachment and offers maximum flexibility.
The spreading arms of the HM provide a large bearing surface and thus enable a high load-carrying capacity.
The claws on the dowel edge penetrate into the panel material to prevent the dowel from twisting and thus ensure a safe mounting.
Function / assembly
The hollow-room metal dowel HM is suitable for pre-plug mounting.
The dowel selection must be adapted to the thickness of the panel construction material in order to allow optimum spreading in the cavity.
During assembly, the spreading arms fold open and press against the back of the plate.
The HM can be mounted with assembling pliers. For installation with the cordless screwdriver or a screwdriver, the pre-assembled screw must first be removed. To screw in and spread the dowel, also use the attached part or an auxiliary object (max. 6 mm) as a screw-in lock.
Applications
Light wall shelves
Mirror Cabinets
Substructures
This text is machine translated.
