Fischer Deckennagel FDN II 6/5 545636 Wedge anchors 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

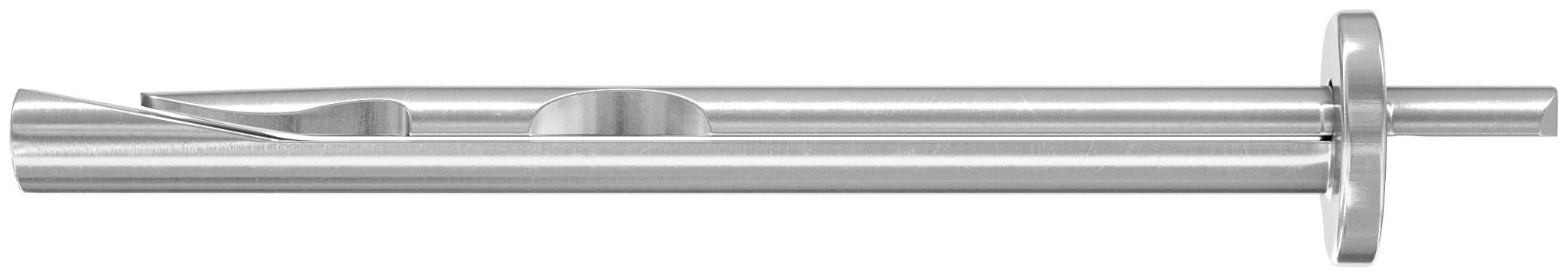

Fischer FDN II ceiling nail 6/5
- - the simple principle of action enables the economical impact assembly.
- - the low setting depth of the FDN II K allows time and power saving installation with a few hammer strokes and prevents the reinforcement buffer.
- - the flush-sunk expanding nail marks the complete spread of the anchor and thus ensures the minimum shift under load.
- - the fischer FDN II may also be set without drilling hole cleaning after approval. For this purpose, the drill hole depth must be increased by 5 mm.
- - the head embossing allows easy control of the anchoring and thus saves time.
Technical specifications
- Product type
Wedge anchors
- Content
100 pc(s)
- Material
Steel
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2148277 Fischer Deckennagel FDN II 6/5 545636 Wedge anchors 100 pc(s)
Description

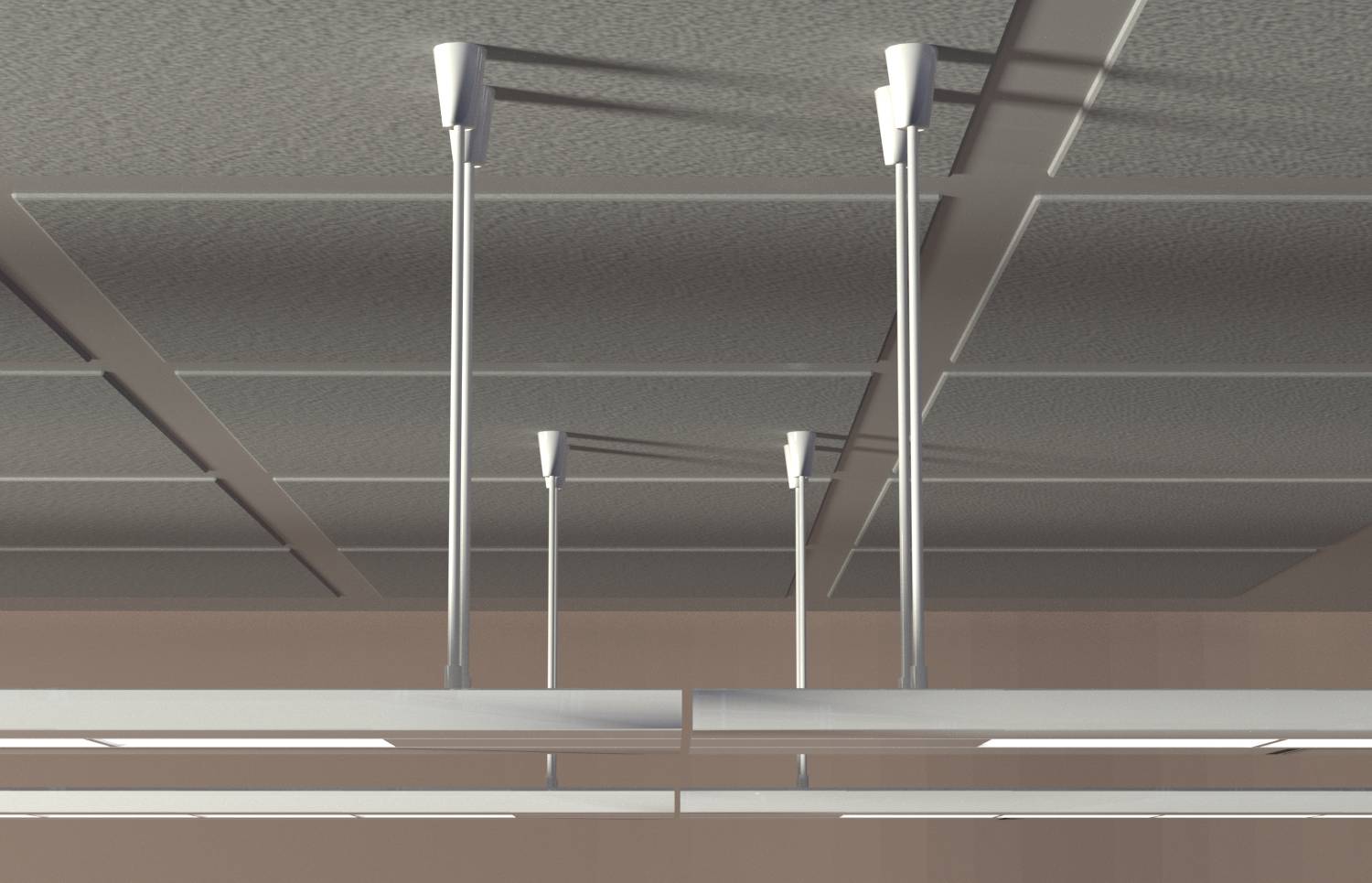

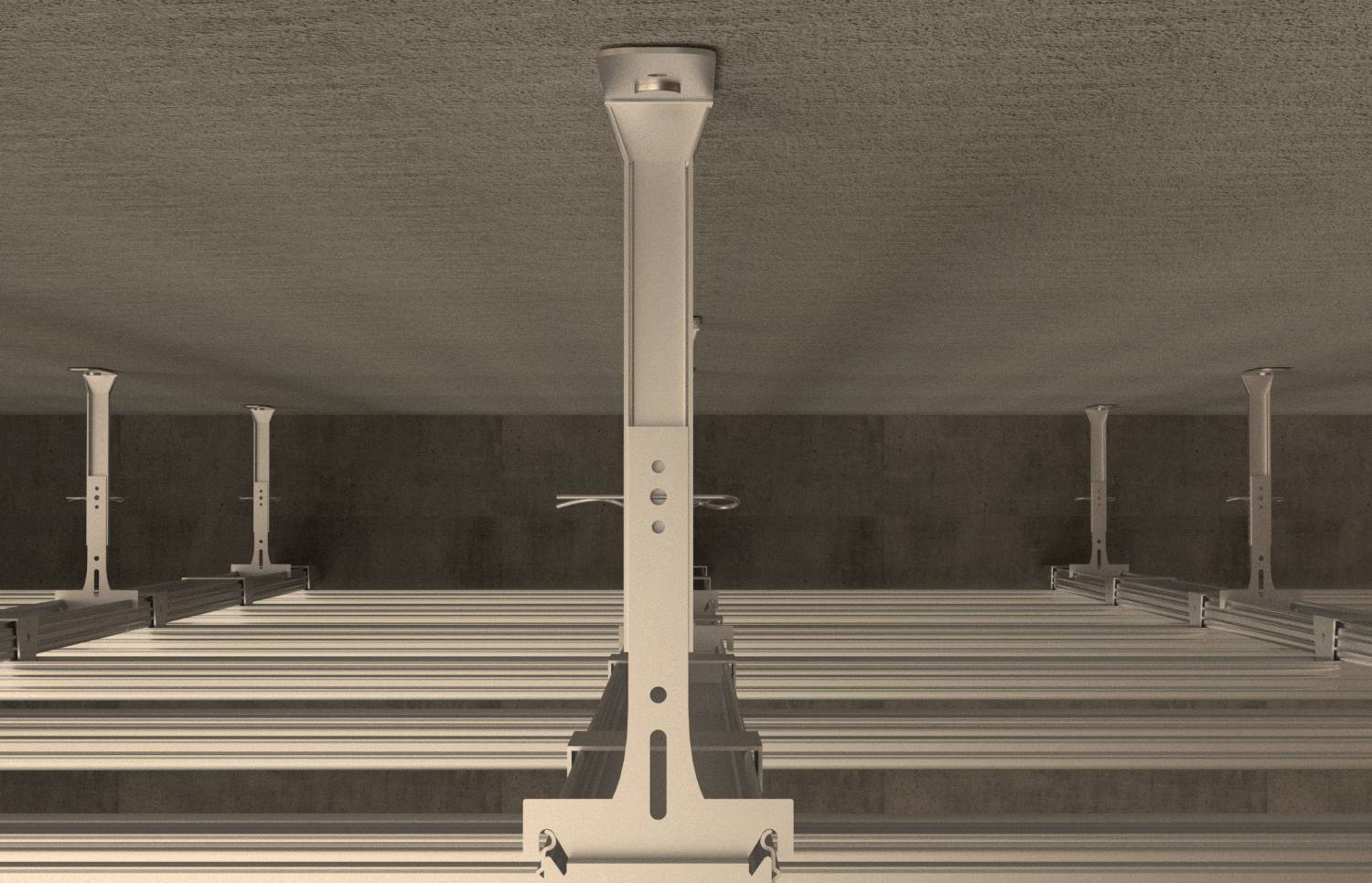

the fischer FDN II ceiling nail is a through-hole anchor made of galvanized steel. The FDN II is approved for multiple anchoring of non-load-bearing systems in concrete. the fischer FDN II ceiling nail is ideal for anchoring wire and nonius hangers for suspended ceilings, ventilation lines and metal profiles in cracked concrete. The European Technical Assessment and the suitability of fire according to fire resistance class R 120 offer a plus in safety. The ceiling nail is placed in the through-hole assembly time-saving and hit into the hole with the hammer.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 100
