Buy Fischer 535464 DUOPOWER 8x40 S PH LD Duopower plug 40 mm 8 mm 50 pc(s)

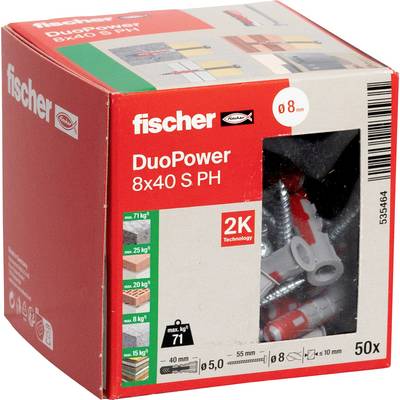

Box of fischer DuoPower 8x40 S PH wall plugs and screws, 50-pack, showing product packaging with an 8 mm drill size and 2K Technology.

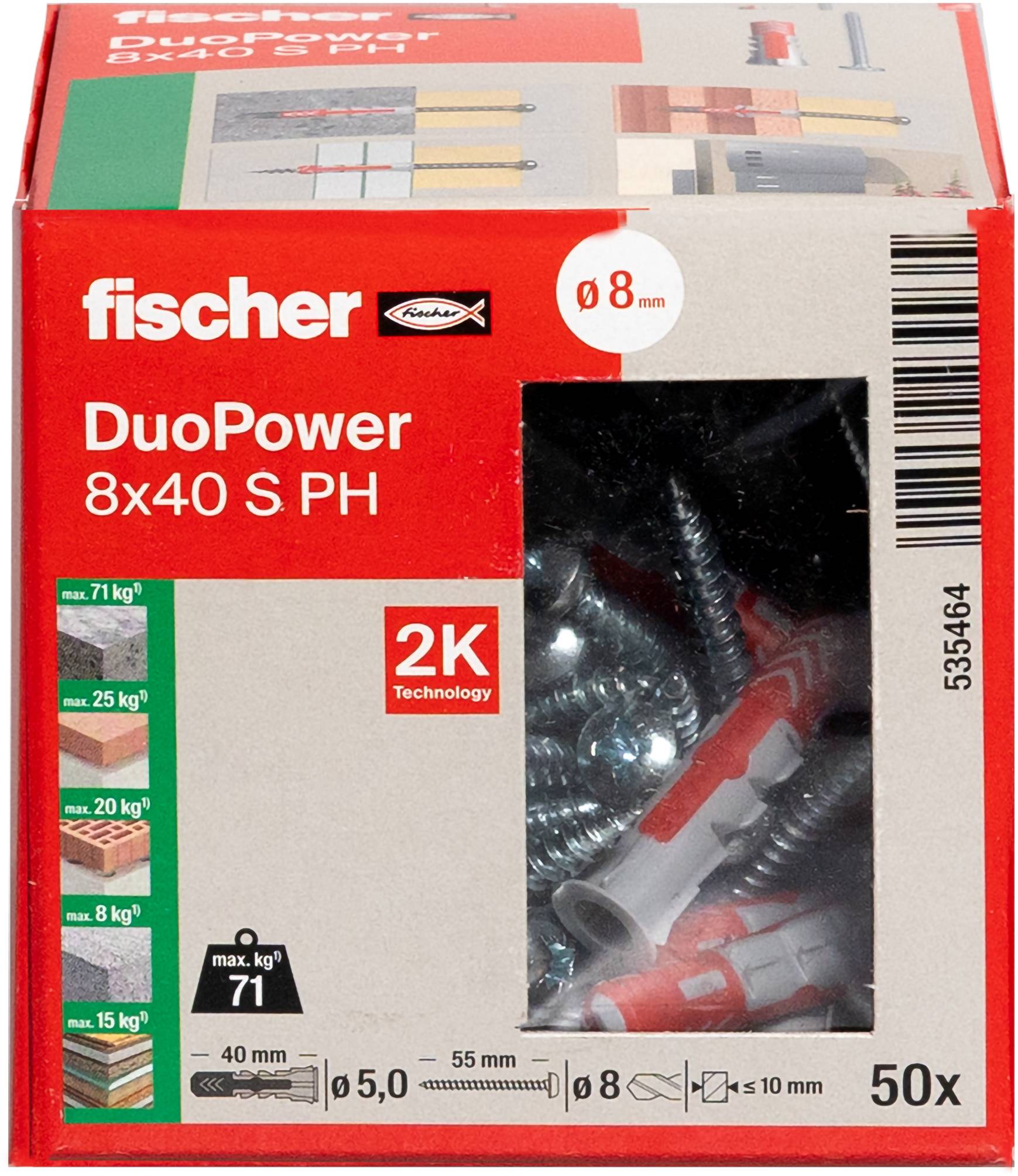

'A box of Fischer DuoPower 8x40 S PH wall plugs and screws, maximum weight capacity 71 kg, contains 50 pieces. Suitable for various surfaces.'

Top view of a red tool attached to a vertical metal surface secured by screws. The tool, with a conical head, appears in use.

Cross-section of geological layers showing a horizontal oil well with a cement casing preventing fluid leak, layers marked with arrows.

An illustration shows a screw anchor embedded in a wall. The anchor expands outward, securing itself against the wall's interior.

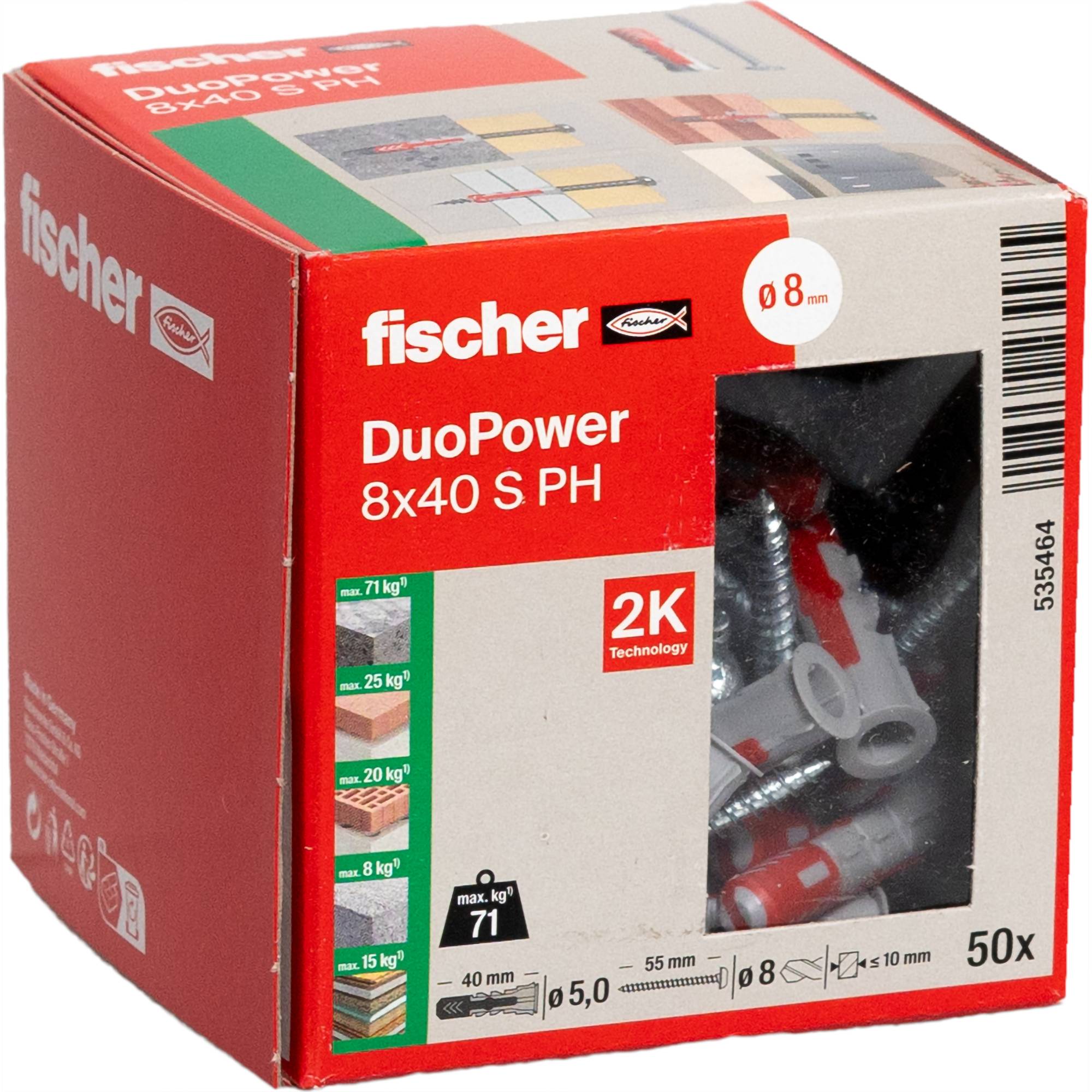

'Red and grey fischer DuoPower 8x40 S PH wall plug box for high load-bearing with 2K technology, suitable for various materials.'

'Expansion anchor installed in a striped layered material, with components expanding outward from the drilled hole by applied force.'

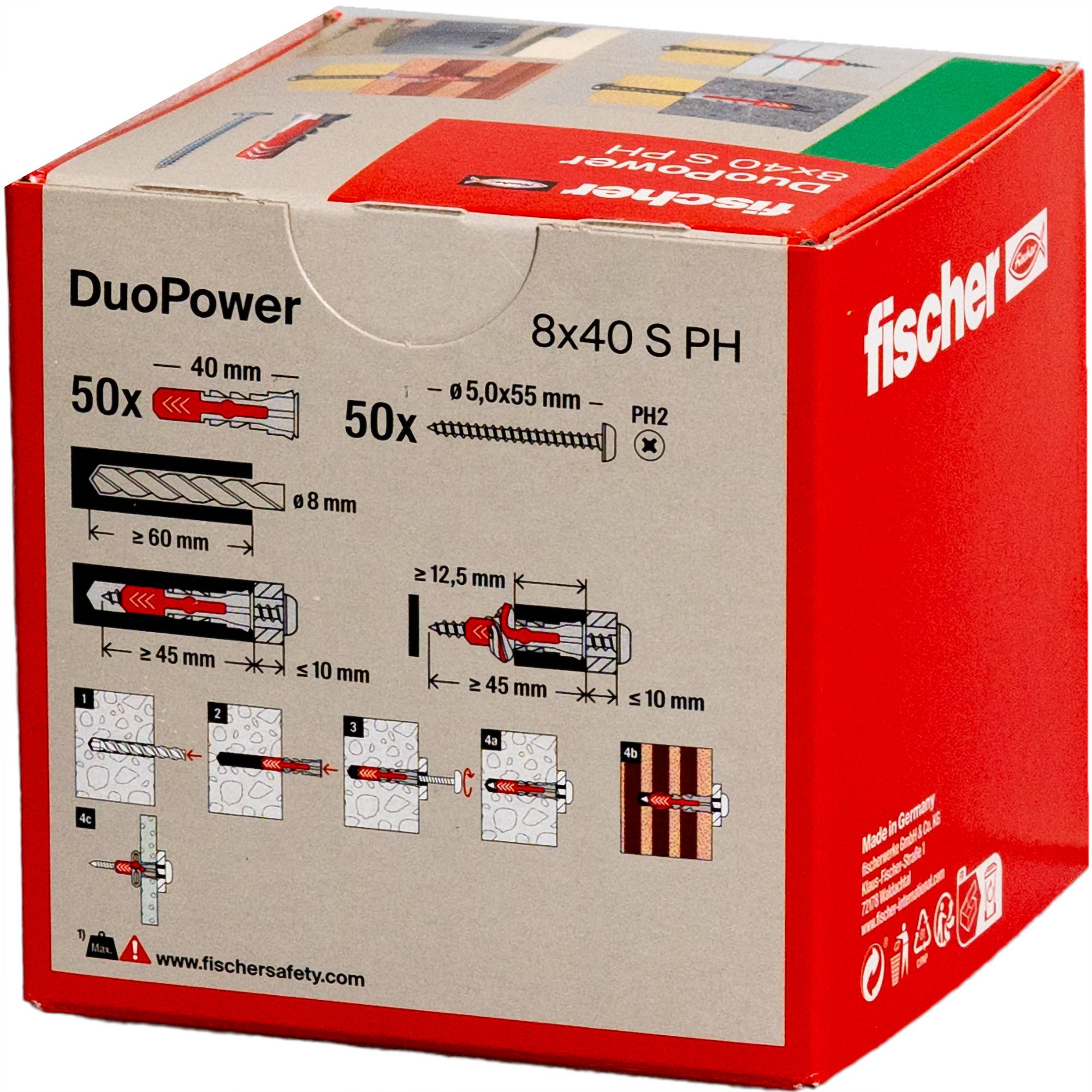

Box of Fischer DuoPower screws and plugs, showing diagrams of their usage and dimensions. Information includes size: 8x40 S PH and quantities.

'Twin white shelves on a concrete wall; top shelf holds decorative vases and a bowl; bottom shelf has red, black, and white books.'

'A flat-screen TV mounted on a wall with an adjustable wall mount, positioned above a brown desk next to a green potted plant.'

Illustration of a wall anchor being screwed into position. The anchor expands as the screw rotates, securing it within layered material.

An illustration shows a wall plug being inserted into a wall with an arrow indicating direction. It's used for securing screws.

'Diagram of a drill bit penetrating a stone surface, showing correct entry angle and direction indicated by a red arrow pointing right.'

'Drill bit exiting the other side of the material, accompanied by an inset showing a drill at use with a directional arrow.'

Illustration showing a wall plug inserted into a drilled hole with an arrow indicating expansion to secure the plug in place.

Section view of a wall anchor and screw in stone, showing how the anchor expands as the screw is turned clockwise to provide a secure hold.

A drill bit with a twist pattern is shown partially inserted into a panel with circular holes. A red arrow points to the right end of the bit.

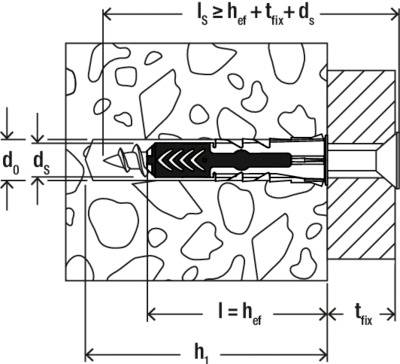

'Diagram showing a screw in a wall with minimum anchorage depth. Labels indicate dimensions: l_s, h_ef, t_fix, d_0, d_s, t_fix.'

A diagram shows a red and gray wall anchor inserted into a surface with a screw, demonstrating secure placement through expansion.

'A diagram shows a wall plug being inserted into a wall. An arrow indicates a rotational movement for tightening the screw into the plug.'

1/20

Unavailable

20 Set(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Min. Screw-in depth: 45 mm
Min. Drill hole depth: 65 mm
Max. Thickness of the mounting part: 15 mm

(Ø): 8 mm

Product type: Duopower plug

Material: Plastic

Length: 40 mm

Dim: (Ø x L) 8 mm x 40 mm

Suitable for: Brickwork

Content: 50 pc(s)

Outside Ø: 8 mm

Features: incl. screw

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1877885 Fischer 535464 DUOPOWER 8x40 S PH LD Duopower plug 40 mm 8 mm 50 pc(s)

Description

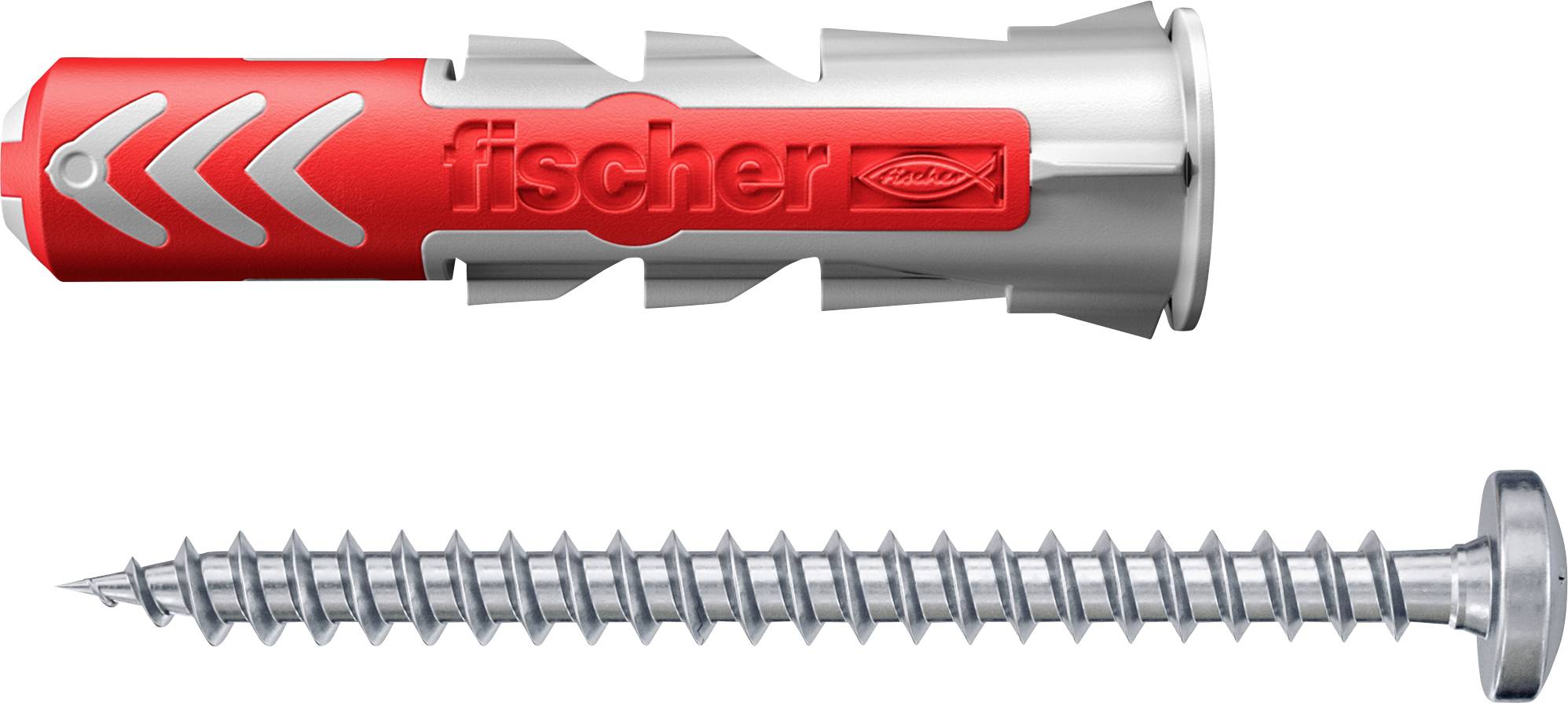

The DUOPOWER fischer offers very good budget values by 2 components: the gray component made of high-quality polyamide activated depending on the material automatically the optimal function principle (spreading, flaps, node) for the best grip. The expansion wing of the red component support the secure straddle irritation and offer additional security for gray component. Simply turning the screw and real "draw". Do not overturn the screw. The dowel head molded edge prevents the dowels into the drilled hole to slip. The screws supplied with panhead are optimally tuned to the fischer wedge anchor Duopower.

This text is machine translated.
