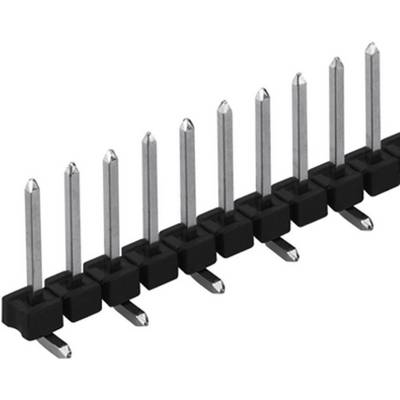

Image similar
1/2
Image similar
Fischer Elektronik 10059099
EAN:
Part number:
Item no:
Connector type
Pin strip, straight
Product type
Pin strip (standard)
No. of rows
1
Total number of pins
20
CS
2.54 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Fischer Elektronik 10059099
- Content 1 pc(s)
- No. of rows 1
- Pins per row 20
Our service for you
Technical specifications
- Connector type
Pin strip, straight
- Product type
Pin strip (standard)
- No. of rows
1
- Pins per row
20
- Total number of pins
20
- CS
2.54 mm
- Connection
SMD
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
250 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Partially gold plated
- Contact material
Copper alloy
- Case material
PA 4.6, GF
- Pin length (receptacle)
5.10 mm
- Pin length (PCB)
3.05 mm
- Separable
No
- Dim
(L x W x H) 50.8 x 7.4 x 6.1 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10059099
- Industrial packaging
No
- Content
1 pc(s)
- Dimensions
C 5.1 mm
- Width
7.4 mm
- Height
6.1 mm
- Length
50.8 mm
- RoHS-compliant
Yes
- Max. temperature
+163 °C
- Min. temperature
-40 °C
- Type
SL LP 5 SMD 051 20 S
