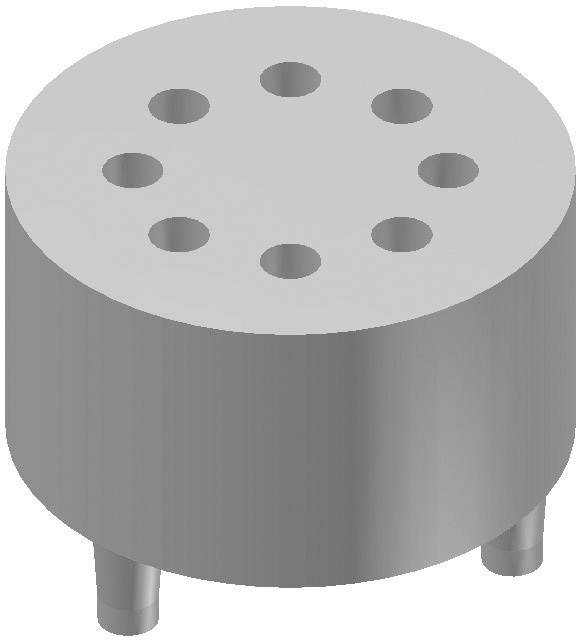

Fischer Elektronik MS 58-7 Spacer
EAN:
Part number:
Item no:
Product type
Transistor spacer
Type
MS 58-7
Material
Polyamide 6
Material properties
fibreglass-reinforced
Number of pins
8
Datasheet (PDF)
Number
Total (€ 0.05 / piece)
€ 0.37
-86 %
€ 0.05
plus VAT.
Highlights & Details
Fischer Elektronik MS 58-7 Spacer
Our service for you
Technical specifications
- Product type
Transistor spacer
- Type
MS 58-7
- Material
Polyamide 6
- Material properties
fibreglass-reinforced
- Number of pins
8
- CS
2.54 mm
- Compatible with (semiconductor enclosures)
TO 5
- Flammability rating
UL 94 V0
- Min. temperature
-40 °C
- Max. temperature
+205 °C
- Height
7 mm
- (Ø)
9.2 mm
- Dim
(Ø x H) 9.2 mm x 7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 187410 Fischer Elektronik MS 58-7 Spacer
User & Safety Instructions
User & Safety Instructions 187410 Fischer Elektronik MS 58-7 Spacer
Description
Suitable for semiconductor design TO5, 8-pin.
