Fischer Elektronik 10059432
EAN:
Part number:
Item no:
Connector type
Pin strip, straight
Product type
Pin strip (standard)
No. of rows
1
Total number of pins
20
CS
1.27 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
Fischer Elektronik 10059432
- Content 1 pc(s)
- No. of rows 1
- Pins per row 20
Our service for you
Technical specifications
- Connector type
Pin strip, straight
- Product type
Pin strip (standard)
- No. of rows
1
- Pins per row
20
- Total number of pins
20
- CS
1.27 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
125 V DC
- Nominal current
1.50 A
- Nominal current - rounded value
1.5 A
- Contact surface
Tin plated
- Contact material
Copper alloy
- Case material
PA 4.6, GF
- Pin length (receptacle)
6.30 mm
- Pin length (PCB)
3.10 mm
- Separable
No
- Dim
(L x W x H) 25.4 x 11.1 x 1.25 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10059432
- Industrial packaging
No
- Content
1 pc(s)

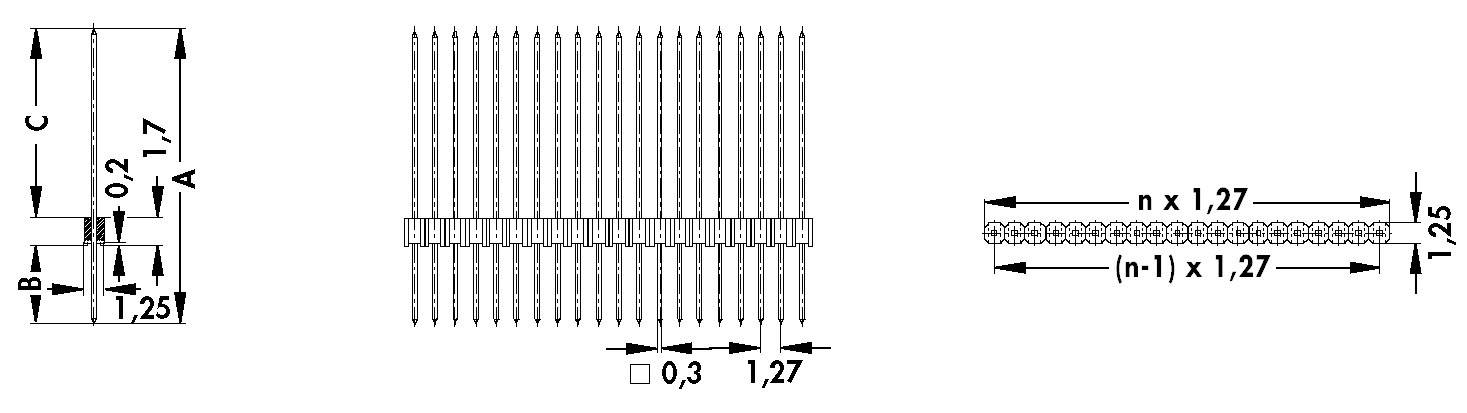

- Dimensions
A x B x C 11.1 x 3.1 x 6.3 mm
- Width
11.1 mm
- Height
1.25 mm
- Length
25.4 mm
- RoHS-compliant
Yes
- Max. temperature
+163 °C
- Min. temperature
-40 °C
- Type
SLM N 1 063 20 Z
Documents & Downloads
Datasheet
Datasheet 735700 Fischer Elektronik 10059432
User & Safety Instructions
User & Safety Instructions 735700 Fischer Elektronik 10059432
