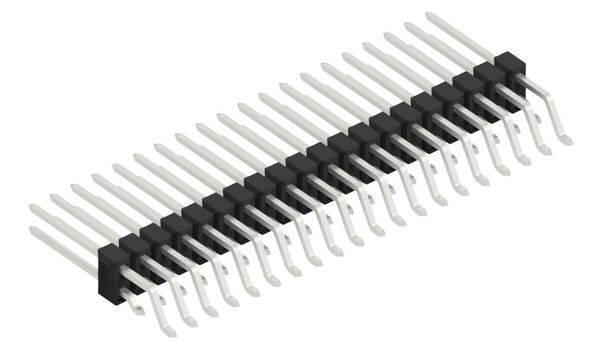

Fischer Elektronik Pin strip (standard) No. of rows: 2 10052913 10 pc(s)
EAN:
Part number:
Item no:
No. of rows
2
Total number of pins
40
CS
2.54 mm
Pin shape
Rectangular
Product type
Pin strip (standard)
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 5.21 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details
PIN HEADER SL 17 SMD 109 40 Z
- Content 10 pc(s)
- No. of rows 2
Our service for you
Technical specifications
- Number of poles occupied: 40
- Series distance 2.54 mm
- Connection type: Soldering
- Mounting method push-pull
- Locking layer (pin): Nickel
- Layer thickness of plug area 4.0 - 6.0 µm
- Layer thickness of soldering range 4.0 - 6.0 µm
- Cover: Not sheathed
- Flammability class UL 94 V-0
- No. of rows
2
- Total number of pins
40
- CS
2.54 mm
- Connection
SMD
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
250 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Tin plated
- Contact material
Bronze
- Case material
PA 4.6, GF
- Dim
(L x W x H) 50.8 x 5 x 21.4 mm
- Manufacturer part #
10052913
- Content
10 pc(s)
- Height
21.4 mm
- Length
50.8 mm
- Width
5 mm
- Type
SL 17 SMD 109 40 Z
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Product type
Pin strip (standard)
