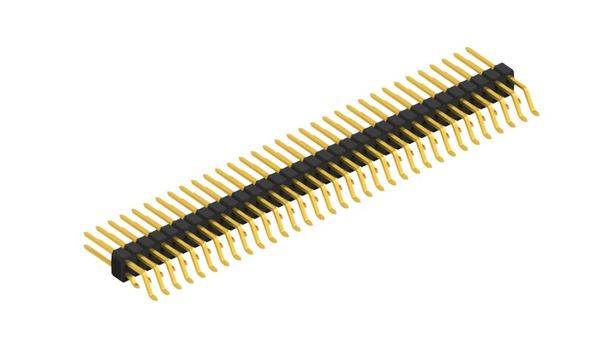

Fischer Elektronik Pin strip (standard) No. of rows: 2 SL17SMD08366G 10 pc(s)
EAN:
Part number:
Item no:
Product type
Pin strip (standard)
No. of rows
2
Total number of pins
66
CS
2.54 mm
Pin shape
Rectangular
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 14.29 / piece)
€ 142.85
plus VAT.
14-day return policy included
Highlights & Details
MULTI-PIN CONNECTOR SL 17 SMD 083 66 G
- Content 10 pc(s)
- No. of rows 2
Our service for you
Technical specifications
- Number of poles occupied: 66
- Series distance 2.54 mm
- Connection type: Soldering
- Mounting method push-pull
- Locking layer (pin): Nickel
- Layer thickness of plug area 0.20 µm
- Layer thickness of soldering range 0.20 µm
- Cover: Not sheathed
- Flammability class UL 94 V-0
- Product type
Pin strip (standard)
- No. of rows
2
- Total number of pins
66
- CS
2.54 mm
- Connection
SMD
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
250 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Bronze
- Case material
PA 4.6, GF
- Dim
(L x W x H) 83.82 x 5 x 18.8 mm
- Manufacturer part #
SL17SMD08366G
- Content
10 pc(s)
- Width
5 mm
- Height
18.8 mm
- Length
83.82 mm
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Type
SL 17 SMD 083 66 G
Documents & Downloads
Datasheet
Datasheet 3242571 Fischer Elektronik Pin strip (standard) No. of rows: 2 SL17SMD08366G 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3242571 Fischer Elektronik Pin strip (standard) No. of rows: 2 SL17SMD08366G 10 pc(s)
