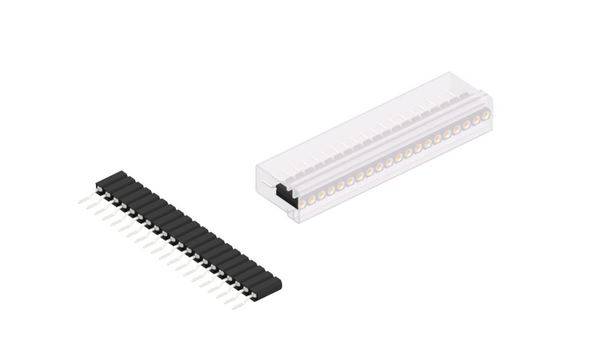

Fischer Elektronik SIL socket (precision) No. of rows: 1 10026179 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 7.39 / piece)
€ 73.94
plus VAT.
Highlights & Details
SOCKET TERMINAL STRIP BL 17 SMD 20 SM
- Content 10 pc(s)
- No. of rows 1
Technical specifications
- Number of poles occupied: 20
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Brass
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.75 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- No. of rows
1
- Total number of pins
20
- CS
2.54 mm
- Connection
SMD
- Nominal voltage
150 V DC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Dim
(L x W x H) 50.8 x 2.5 x 12.2 mm
- Manufacturer part #
10026179
- Content
10 pc(s)
- Height
12.2 mm
- Length
50.8 mm
- Width
2.5 mm
- Type
BL 17 SMD 20 SM
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Product type
SIL socket (precision)
