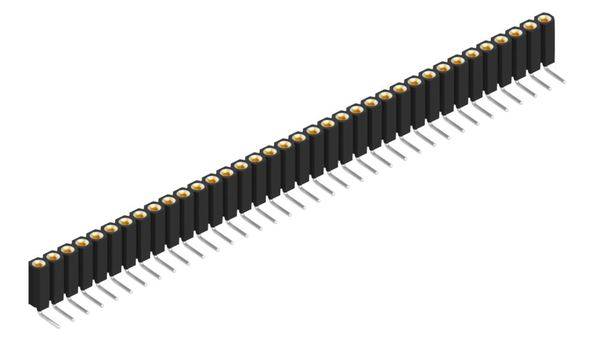

Fischer Elektronik SIL socket (precision) No. of rows: 1 10026835 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number (Package size 10 pc(s))
Total (€ 126.04 / piece)
€
Highlights & Details
Socket terminal strip BL 7 36
- Content 10 pc(s)
- No. of rows 1
Technical specifications
- Number of poles occupied: 36
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Brass
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.75 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- No. of rows
1
- Total number of pins
36
- CS
2.54 mm
- Connection
THT
- Nominal voltage
150 V DC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Dim
(L x W x H) 91.44 x 5.74 x 8.3 mm
- Manufacturer part #
10026835
- Content
10 pc(s)
- Height
8.3 mm
- Length
91.44 mm
- Width
5.74 mm
- Type
BL 7 36
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Product type
SIL socket (precision)
