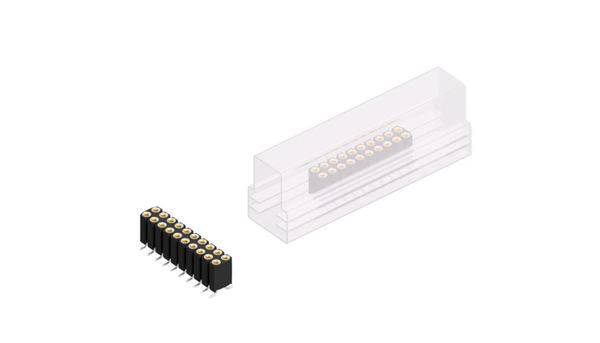

Fischer Elektronik SIL socket (precision) No. of rows: 2 10026017 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 5.04 / piece)
€ 50.41
plus VAT.
Highlights & Details
SOCKET TERMINAL STRIP BL 16 SMD 067 20 SM
- Content 10 pc(s)
- No. of rows 2
Technical specifications
- Number of poles occupied: 20
- Series distance 2.54 mm
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Brass
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.75 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- No. of rows
2
- Total number of pins
20
- CS
2.54 mm
- Connection
SMD
- Nominal voltage
150 V DC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Dim
(L x W x H) 25.4 x 6.7 x 8.6 mm
- Manufacturer part #
10026017
- Content
10 pc(s)
- Height
8.6 mm
- Length
25.4 mm
- Width
6.7 mm
- Type
BL 16 SMD 067 20 SM
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Product type
SIL socket (precision)
Documents & Downloads
Datasheet
Datasheet 3222784 Fischer Elektronik SIL socket (precision) No. of rows: 2 10026017 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3222784 Fischer Elektronik SIL socket (precision) No. of rows: 2 10026017 10 pc(s)
