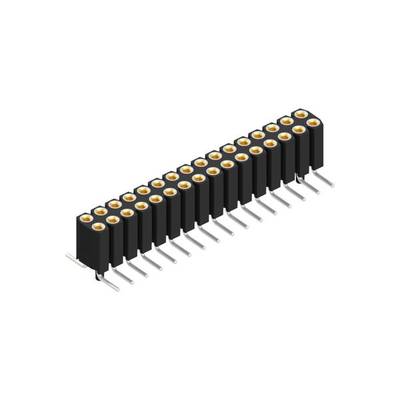

Fischer Elektronik SIL socket (precision) No. of rows: 2 10026140 10 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (precision)
No. of rows
2
Total number of pins
32
CS
2.54 mm
Connection
SMD
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 12.60 / piece)
€ 126.04
plus VAT.
14-day return policy included
Highlights & Details
SOCKET TERMINAL STRIP BL 16 SMD 113 32 PS
- Content 10 pc(s)
- No. of rows 2
Our service for you
Technical specifications
- Number of poles occupied: 32
- Series distance 2.54 mm
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Brass
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.75 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- Product type
SIL socket (precision)
- No. of rows
2
- Total number of pins
32
- CS
2.54 mm
- Connection
SMD
- Nominal voltage
150 V DC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Dim
(L x W x H) 40.64 x 11.3 x 8.6 mm
- Manufacturer part #
10026140
- Content
10 pc(s)
- Width
11.3 mm
- Height
8.6 mm
- Length
40.64 mm
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Type
BL 16 SMD 113 32 PS
