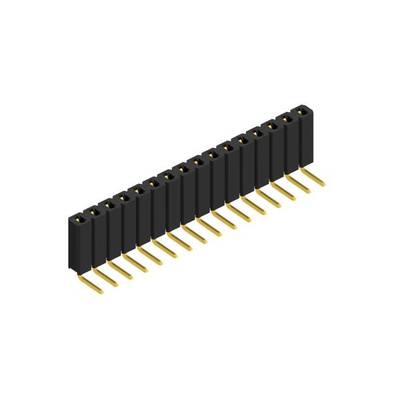

Fischer Elektronik SIL socket (standard) No. of rows: 1 10026534 10 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (standard)
No. of rows
1
Total number of pins
16
CS
2.54 mm
Connection
THT
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 3.53 / piece)
€ 35.29
plus VAT.
14-day return policy included
Highlights & Details
Socket terminal strip BL 3 16 G
- Content 10 pc(s)
- No. of rows 1
Our service for you
Technical specifications
- Number of poles occupied: 16
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Bronze
- Surface contact sleeve/fork (post): Gold-plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.2 µm
- Layer thickness contact sleeve/fork (post): 0.2 µm
- Flammability class UL 94 V-0
- Product type
SIL socket (standard)
- No. of rows
1
- Total number of pins
16
- CS
2.54 mm
- Connection
THT
- Nominal voltage
125 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Bronze
- Dim
(L x W x H) 40.64 x 6 x 8.6 mm
- Manufacturer part #
10026534
- Content
10 pc(s)
- Width
6 mm
- Height
8.6 mm
- Length
40.64 mm
- RoHS-compliant
Yes
- Max. temperature
200 °C
- Min. temperature
-40 °C
- Type
BL 3 16 G
Documents & Downloads
Datasheet
Datasheet 3223386 Fischer Elektronik SIL socket (standard) No. of rows: 1 10026534 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3223386 Fischer Elektronik SIL socket (standard) No. of rows: 1 10026534 10 pc(s)
