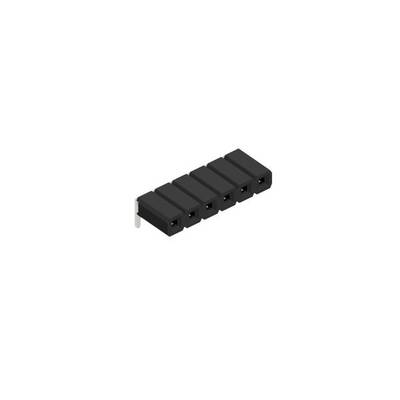

Fischer Elektronik SIL socket (standard) No. of rows: 1 10129949 10 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (standard)
No. of rows
1
Total number of pins
6
CS
2.54 mm
Connection
THT
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 1.01 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
SOCKET TERMINAL STRIP BL LP 3 6 S
- Content 10 pc(s)
- No. of rows 1
Our service for you
Technical specifications
- Number of poles occupied: 6
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Bronze
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.2 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- Product type
SIL socket (standard)
- No. of rows
1
- Total number of pins
6
- CS
2.54 mm
- Connection
THT
- Nominal voltage
125 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Bronze
- Dim
(L x W x H) 15.24 x 2.5 x 6.9 mm
- Manufacturer part #
10129949
- Content
10 pc(s)
- Width
2.5 mm
- Height
6.9 mm
- Length
15.24 mm
- RoHS-compliant
Yes
- Max. temperature
200 °C
- Min. temperature
-40 °C
- Type
BL LP 3 6 S
