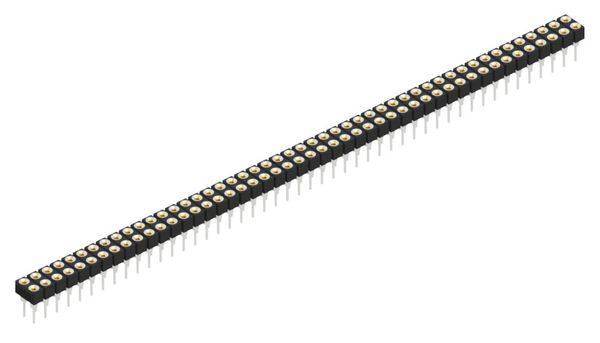

Fischer Elektronik SIL socket (precision) No. of rows: 2 10041195 10 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (precision)
No. of rows
2
Total number of pins
96
CS
2.54 mm
Connection
THT
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 8.82 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details
Socket terminal strip MK 201 96 Z
- Content 10 pc(s)
- No. of rows 2
Our service for you
Technical specifications
- Number of poles occupied: 96
- Series distance 2.54 mm
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Brass
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.25 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- Product type
SIL socket (precision)
- No. of rows
2
- Total number of pins
96
- CS
2.54 mm
- Connection
THT
- Nominal voltage
60 V DC
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Contact surface
Gold plated
- Dim
(L x W x H) 121.92 x 5 x 7.4 mm
- Manufacturer part #
10041195
- Content
10 pc(s)
- Width
5 mm
- Height
7.4 mm
- Length
121.92 mm
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Type
MK 201 96 Z
