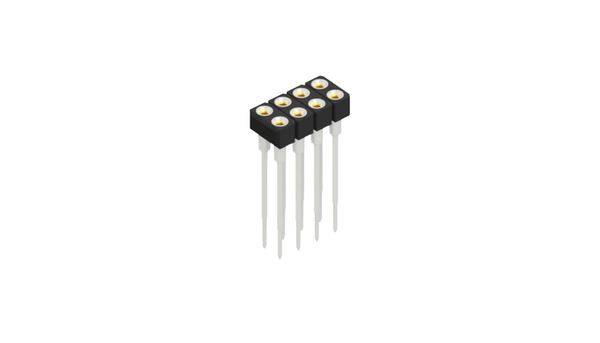

Fischer Elektronik SIL socket (precision) No. of rows: 2 10042035 10 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (precision)
No. of rows
2
Total number of pins
8
CS
2.54 mm
Connection
THT
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 2.52 / piece)
€ 25.20
plus VAT.
14-day return policy included
Highlights & Details
SOCKET TERMINAL STRIP MK 213 X 2 8 Z
- Content 10 pc(s)
- No. of rows 2
Our service for you
Technical specifications
- Number of poles occupied: 8
- Series distance 2.54 mm
- Connection type: Soldering
- Contact material contact sleeve/fork (post): Brass
- Contact sleeve/fork (post) surface: Tin plated
- Coating (alloy): Nickel
- Layer thickness of inner spring contact (Matting): 0.75 µm
- Layer thickness of contact sleeve/fork (post): 4 - 6 µm
- Flammability class UL 94 V-0
- Product type
SIL socket (precision)
- No. of rows
2
- Total number of pins
8
- CS
2.54 mm
- Connection
THT
- Nominal voltage
60 V DC
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Contact surface
Gold plated
- Dim
(L x W x H) 10.16 x 5 x 17.8 mm
- Manufacturer part #
10042035
- Content
10 pc(s)
- Width
5 mm
- Height
17.8 mm
- Length
10.16 mm
- RoHS-compliant
Yes
- Max. temperature
163 °C
- Min. temperature
-40 °C
- Type
MK 213 X 2 8 Z
Documents & Downloads
Datasheet
Datasheet 3226442 Fischer Elektronik SIL socket (precision) No. of rows: 2 10042035 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3226442 Fischer Elektronik SIL socket (precision) No. of rows: 2 10042035 10 pc(s)
