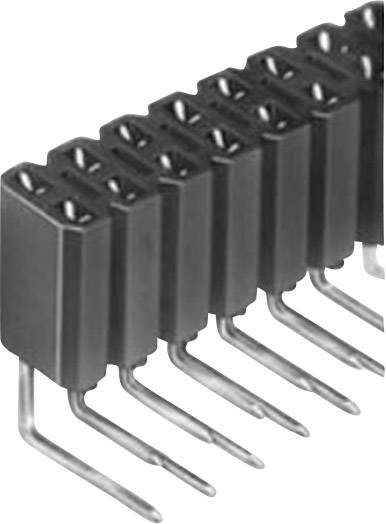

Fischer Elektronik Socket Strip
EAN:
Part number:
Item no:
Connector type
Power strip, right angle
Product type
SIL socket (standard)
No. of rows
2
Total number of pins
20
CS
2.54 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Fischer Elektronik Socket Strip
- Content 1 pc(s)
- No. of rows 2
- Pins per row 10
Our service for you
Technical specifications
- Connector type
Power strip, right angle
- Product type
SIL socket (standard)
- No. of rows
2
- Pins per row
10
- Total number of pins
20
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Nominal voltage
125 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Tin plated
- Contact material
Copper alloy
- Case material
PPS
- Pin Ø
0.50 mm
- Pin length (PCB)
3.50 mm
- Separable
Yes
- Dim
(L x W x H) 25.4 x 11.94 x 8.6 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10026587
- Industrial packaging
No
- Content
1 pc(s)
- Width
11.94 mm
- Height
8.6 mm
- Length
25.4 mm
- RoHS-compliant
Yes
- Max. temperature
+200 °C
- Min. temperature
-40 °C
- Type
BL 4 20 Z
- Material (details)
Glass-fibre reinforced polyamide
- Type
Two-row, angled
- Connection
-
Documents & Downloads
Datasheet
Datasheet 740144 Fischer Elektronik Socket Strip
User & Safety Instructions
User & Safety Instructions 740144 Fischer Elektronik Socket Strip
Description
Angled terminal pins · Detachable.
