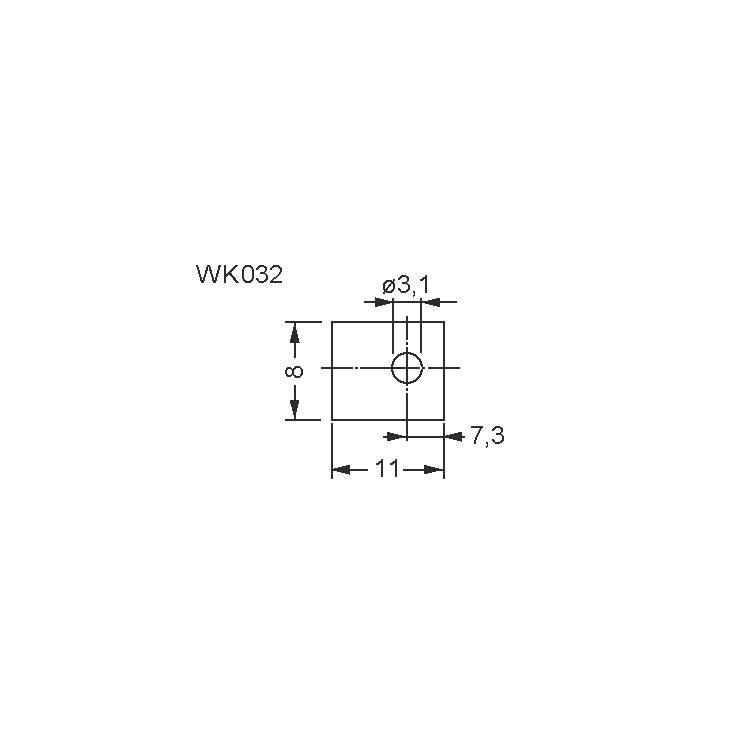

Stroke drawing/circuit diagram
Fischer Elektronik WK032 WK032 Thermally conductive film self-adhesive 200 µm 0.9 W/mK (L x W) 42 mm x 29 mm
EAN:
Part number:
Item no:
Product type
Thermally conductive film
Thermal conductivity
0.9 W/mK
Material
Silicone
Material thickness
200 µm
Length
42 mm
Highlights & Details
Heat conductive film, one-sided adhesive, insulated
Our service for you
Technical specifications
- Product type
Thermally conductive film
- Type
WK032
- Content
1 pc(s)
- Features
self-adhesive
- Thermal conductivity
0.9 W/mK
- Dielectric strength
6 kV/mm
- Factory colour
Green
- Material
Silicone
- Material thickness
200 µm
- Dim
(L x W) 42 mm x 29 mm
- Length
42 mm
- Width
29 mm
- RoHS-compliant
Yes
- Max. temperature
+150 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3314890 Fischer Elektronik WK032 WK032 Thermally conductive film self-adhesive 200 µm 0.9 W/mK (L x W) 42 mm x 29 mm
Description
Features
- - Good surface contact, assembly without heat conductive paste
- - Spring effect of the elastic material protects transistors against damage
- - Free of toxic substances
- - Thermal film 1-sided adhesive for TO3
- This text is machine translated.
