Buy Fischer FCM-D M20 HCR 569669 Screw locking varnish 6 pc(s)

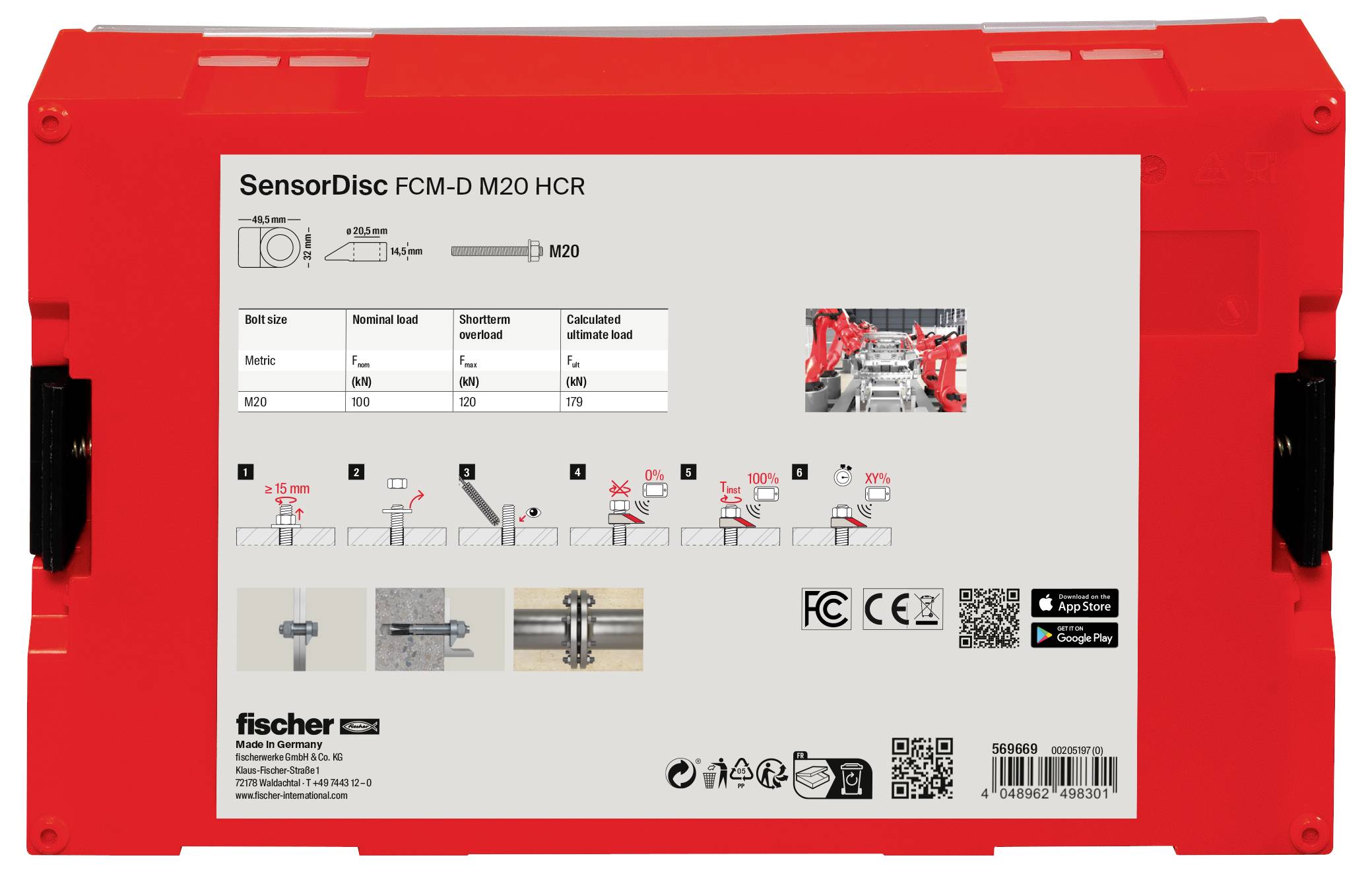

Red housing with product information for 'SensorDisc FCM-D M20 HCR', illustrations and symbols for connection and mounting instructions.

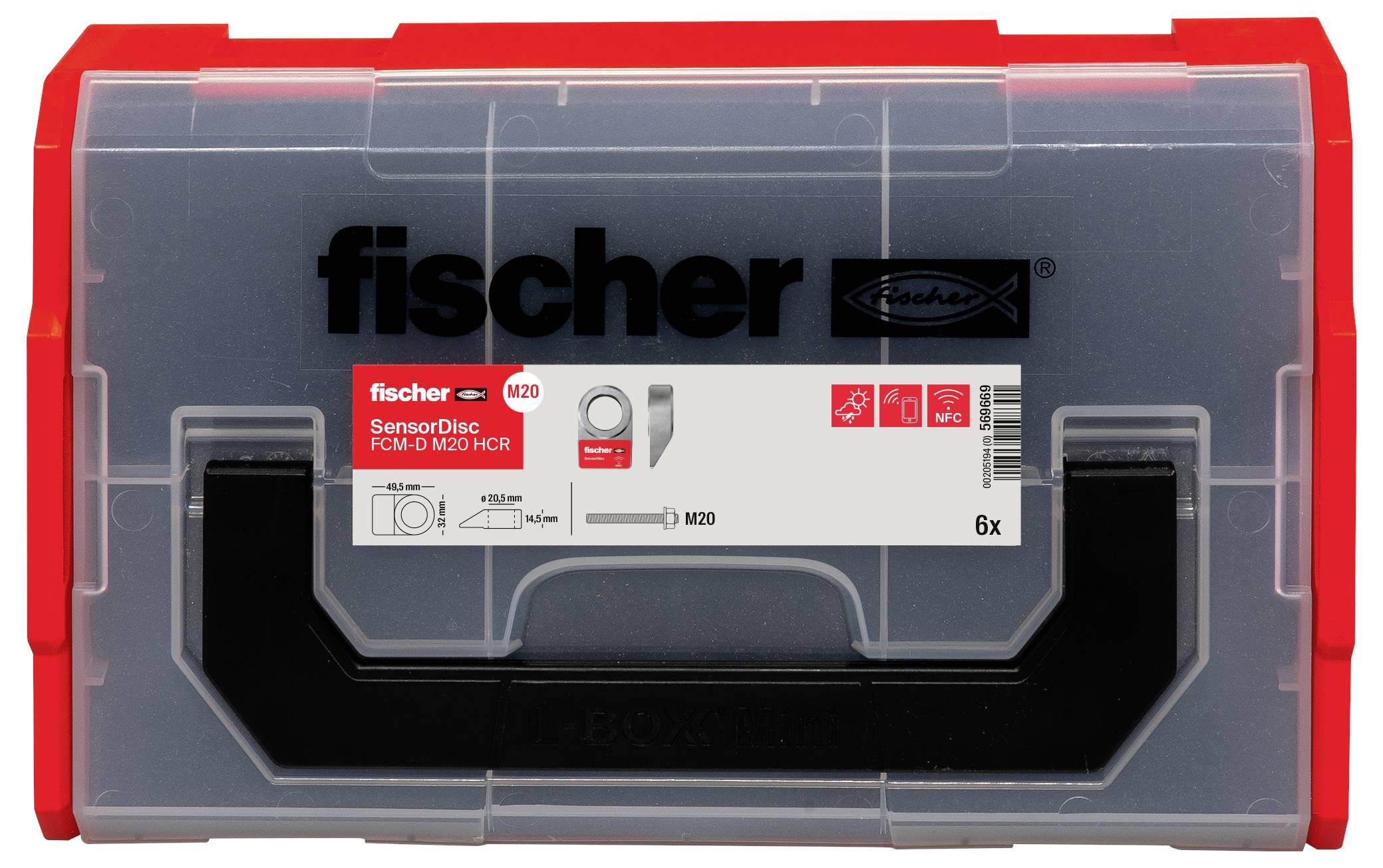

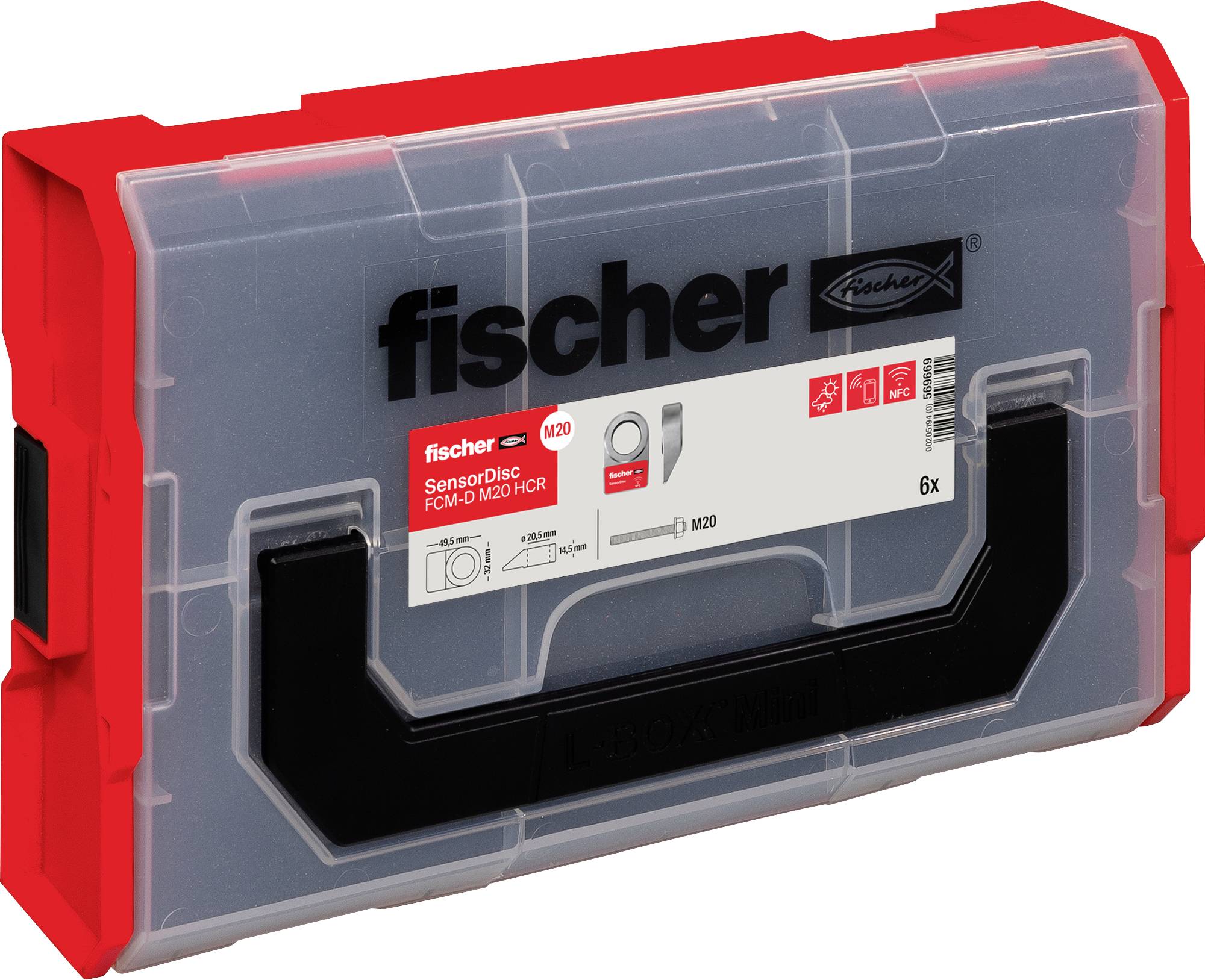

Transparent plastic box with red lid, containing Fischer SensorDisc FCM-D M20 HCR, 6 pieces, illustrated with technical symbol.

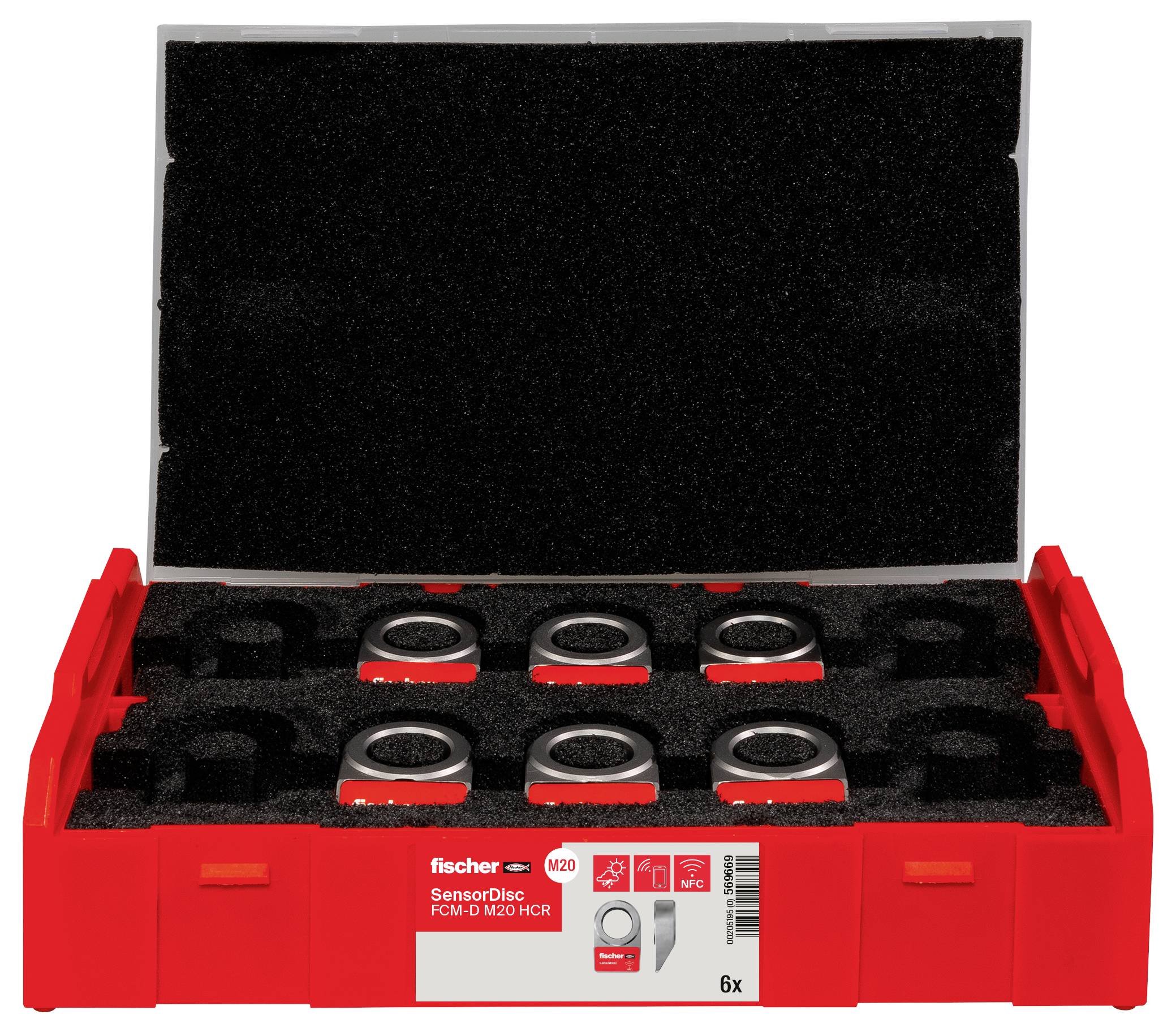

Six SensorDiscs in a red storage box with foam padding. The box is open and displays the precisely positioned components.

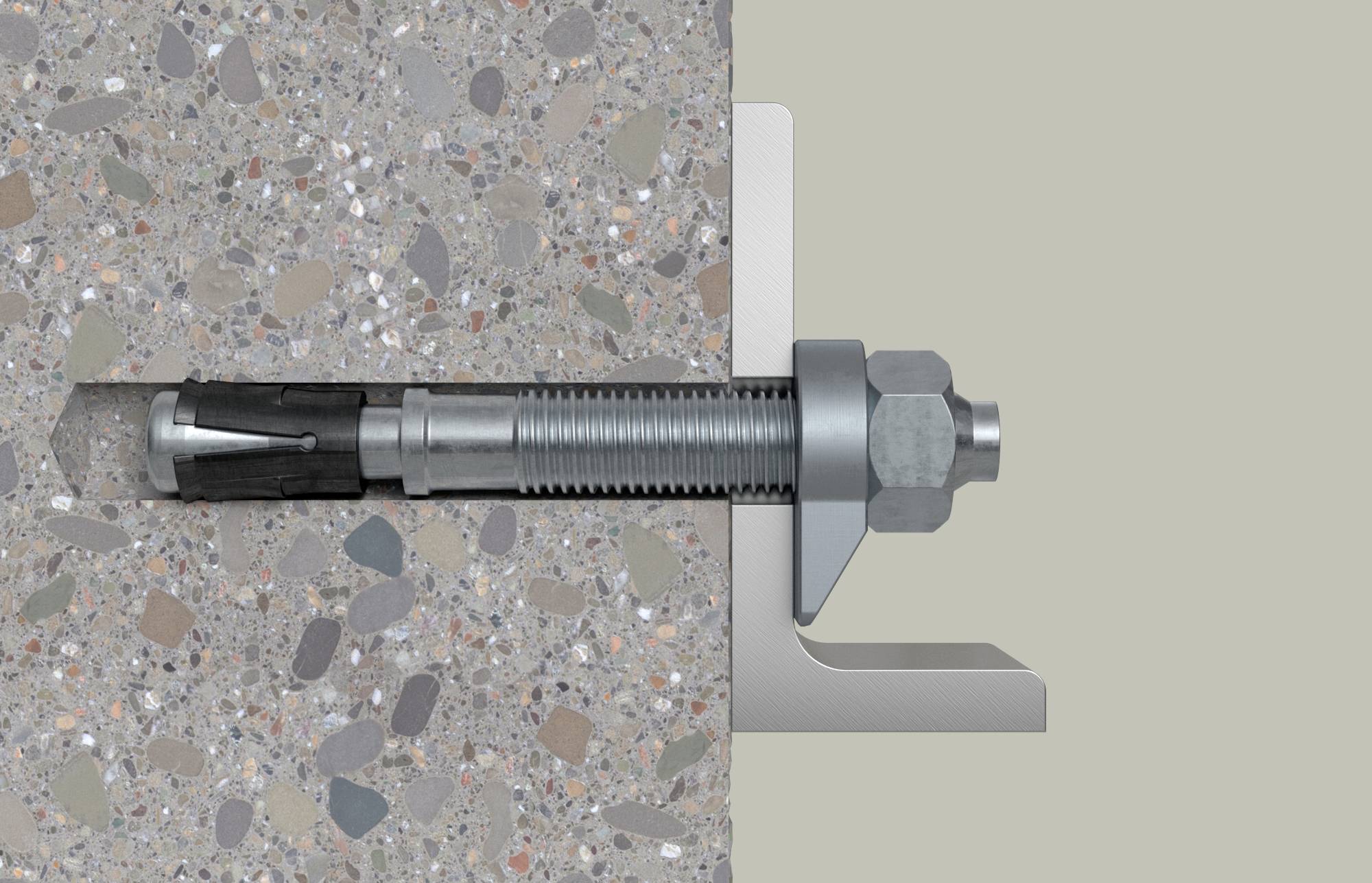

Cross-sectional view of a screw anchor being used to secure a metal angle bracket in a concrete wall, shown from left to right.

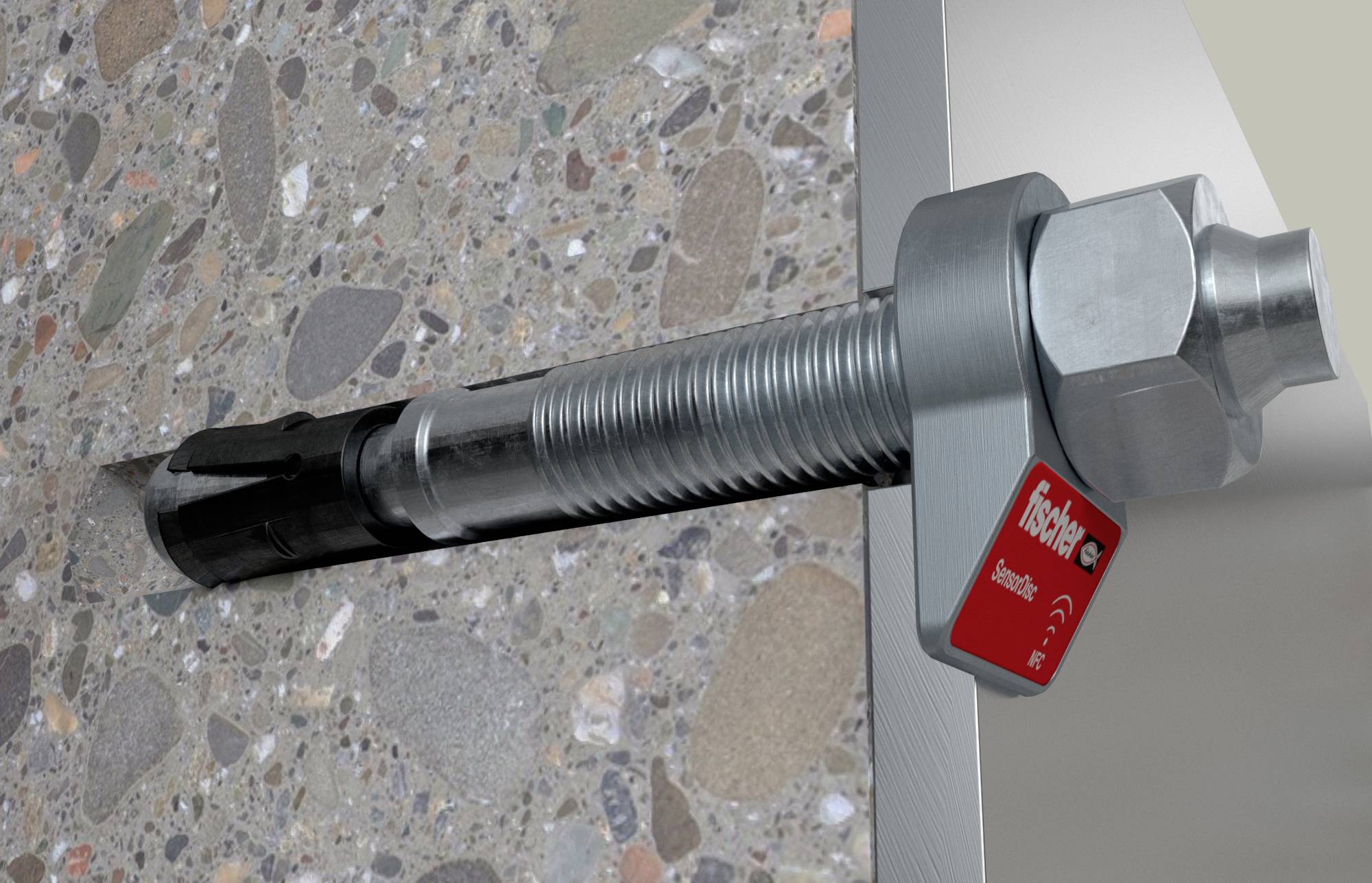

A metallic bolt anchor is secured in a concrete wall. It shows details of the screw connection and a red labelling.

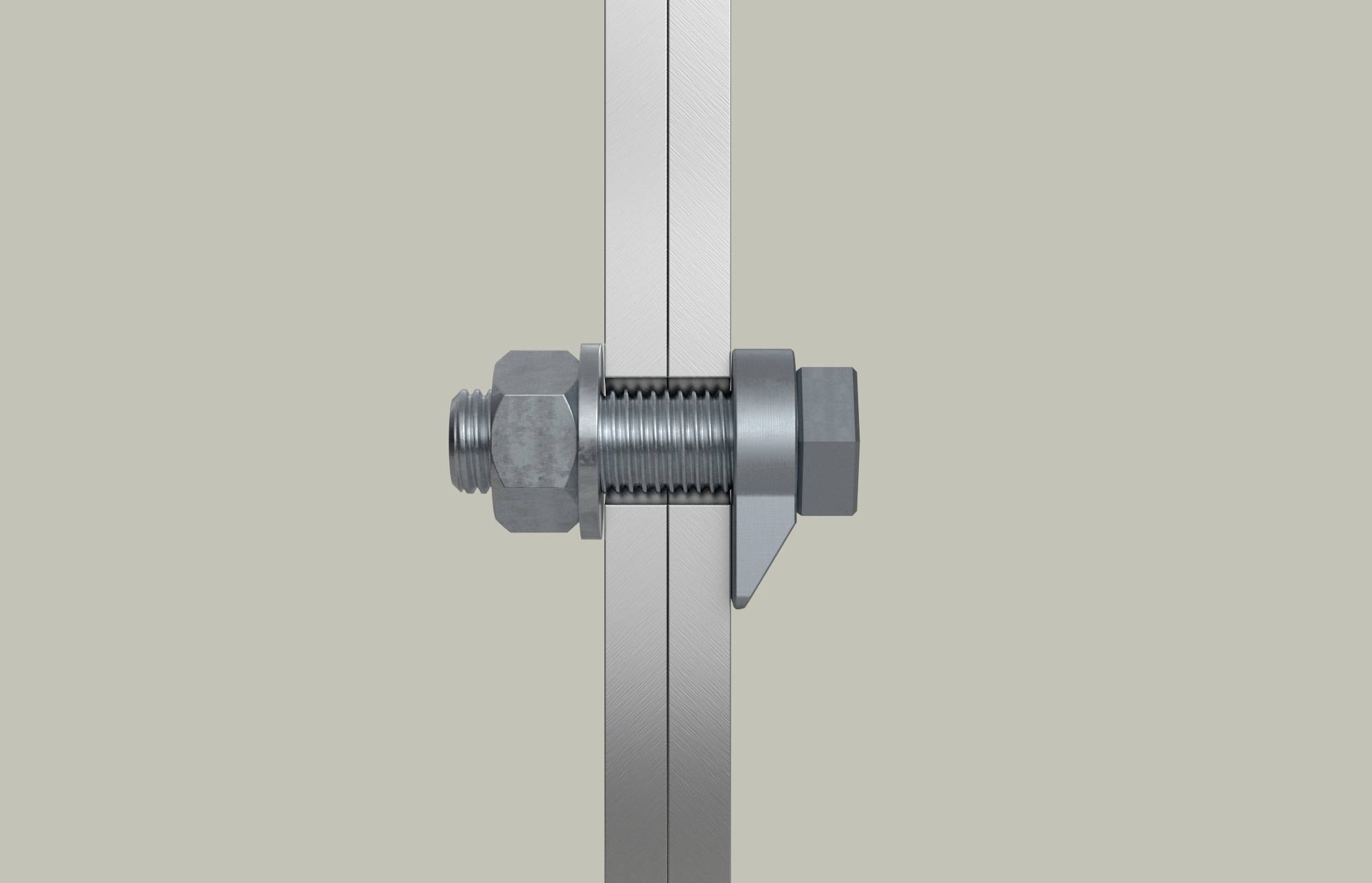

A metal screw and nut connect two metal plates. The nut is tightened to firmly secure the plates.

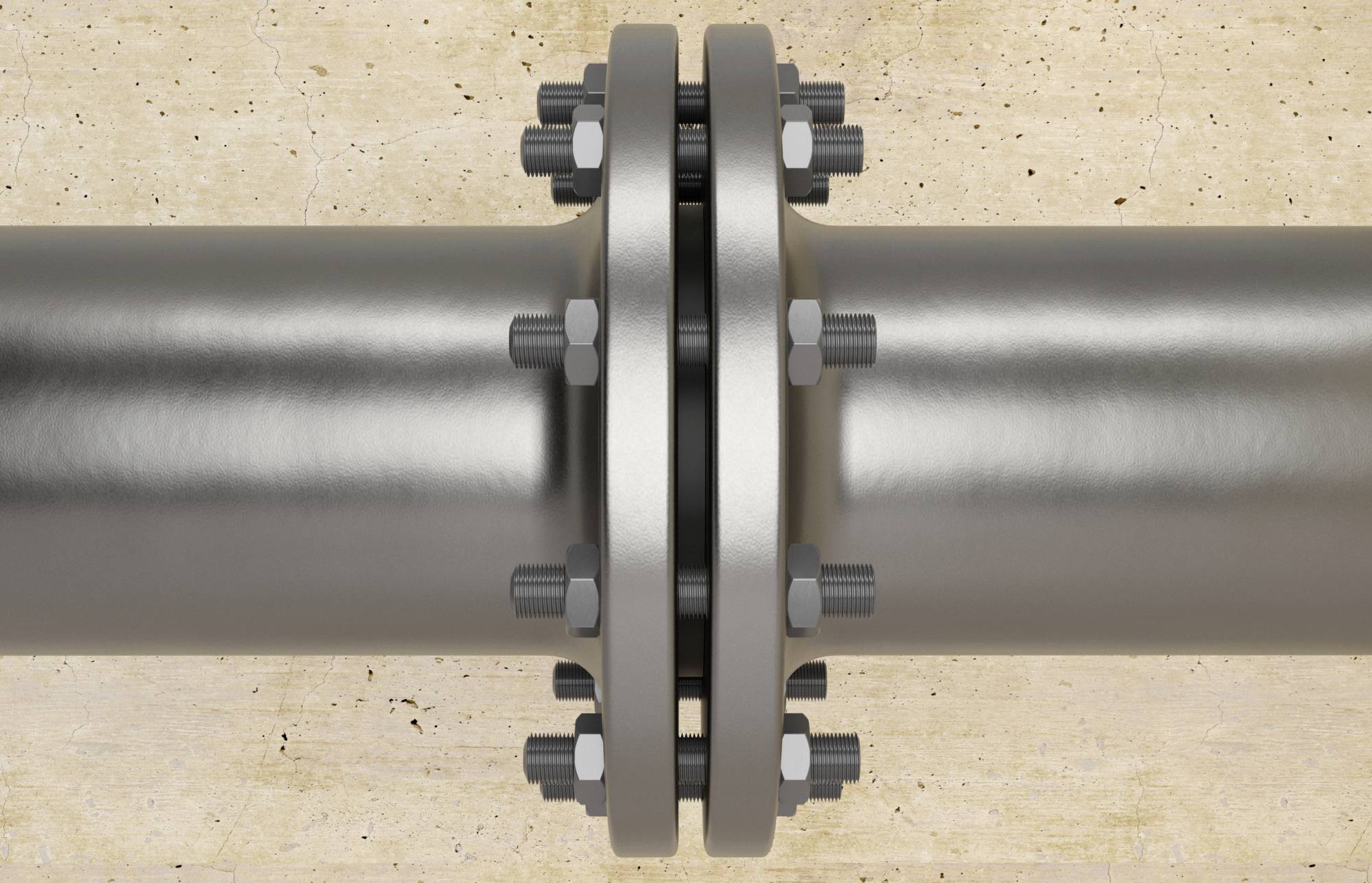

A metal pipe connection with a flange and bolts against a light background, presenting robust connection details.

Offshore wind farm in the sea with numerous wind turbines and a ship in the foreground. Clear sky, calm sea.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer FCM-D M20 HCR 6P sensor disc, highly corrosion-resistant steel

The wireless measurement of the pre-tensioning force enables a transparent and simple monitoring of the anchorages.
The simple and subsequent installation between the attachment and nut does not require any additional holes or tools.
The versatile compatibility with different connection types offers a flexible solution for different applications.
The robust casing of the SensorDisc with fully cast electronics ensures easy handling and long life.
NFC enables quick and secure data transfer using a smartphone or tablet.

Technical specifications

Dim. (LxWxH) 49.5 x 32 x 14.5 mm
20.5 mm internal diameter

Product type: Screw locking varnish

Content: 6 pc(s)

Thread type: M20

Material suitability: Stainless steel

Documents & Downloads

Datasheet

Datasheet 3350751 Fischer FCM-D M20 HCR 569669 Screw locking varnish 6 pc(s)

User & Safety Instructions

User & Safety Instructions 3350751 Fischer FCM-D M20 HCR 569669 Screw locking varnish 6 pc(s)

Description

Digital add-on for testing conventional screw connections.
The Fischer SensorDisc is an innovative solution for monitoring screw connections. It can be used in various screw-joints and measures the relative pre-tensioning force. The data can be read out wirelessly via NFC technology and transmitted to a monitoring system, which archives the data and visualizes it for analysis. The SensorDisc made from high quality stainless steel is compatible with various mounting materials and can be installed both at first assembly and later. It ensures greater transparency, control and security in fastening technology.

Applications: Machinery, pipelines, flange connections, bridges, tunnels, Wind power plants, crane superstructure, robotics

This text is machine translated.

Features

The SensorDisc is suitable for initial and retrofitting assembly and its rugged design has a long-lasting design.
The SensorDisc enables a revision-proof documentation of the state of the mounting point.
The anchorage pre-load level can be calibrated when installing the SensorDisc.
The relative pre-tension level can be read at any time via NFC and the results can be transmitted wirelessly to the cloud.
