Fischer FCN Clix M 8 559762 Slide-in flat T nut M8 Steel zinc galvanized 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
fischer FCN Clix M8 sliding nut
- Quick assembly by 90° rotation of the sliding nut in the rail
- For easy connection of pipe clamps by means of threaded pins and holding claws to FUS rails
- For use in dry indoor areas
Technical specifications

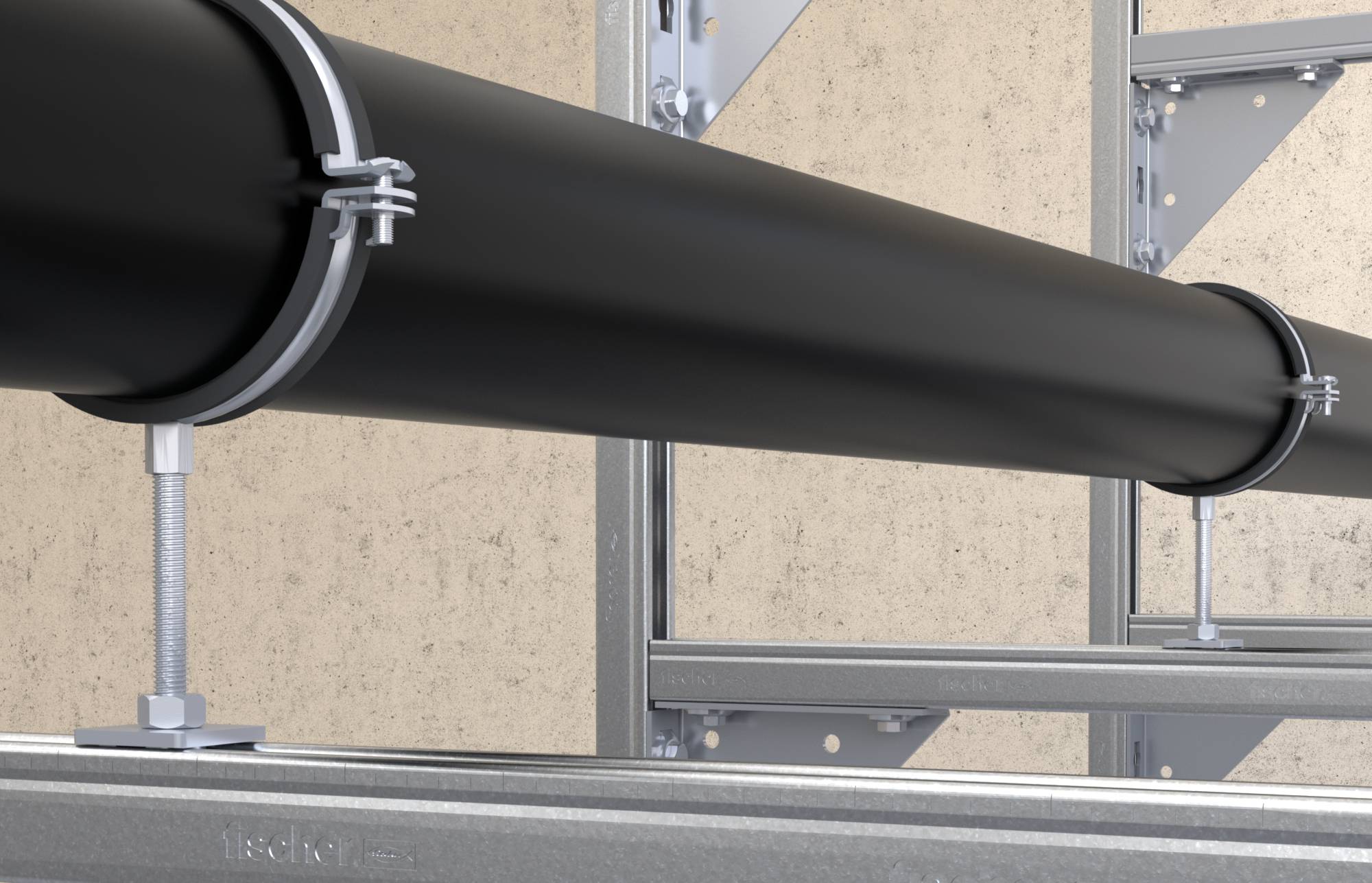

- Suitable for: Connection of pipe clamps and FUS rails by means of threaded rods
- Tightening torque for bolt quality greater than or equal to 4.6: 10 Nm
- Fire test: Yes
- Max. Recommended central tensile load for FUS 2.0 mm: 4.0 kN
- Max. Recommended central tensile load for FUS 2.5 mm: 4.0 kN
- Thickness: 6 mm
- Product type
Slide-in flat T nut
- Material
Steel
- Thread size
M8
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472019 Fischer FCN Clix M 8 559762 Slide-in flat T nut M8 Steel zinc galvanized 50 pc(s)
Description
fischer FCN CLIX M sliding nut is suitable for connecting pipe clamps with a threaded rod. The design allows a simple and quick setting in the rail. The spring action of the plastic clips ensures a simple and precise positioning in the rail. The assembly by turning by 90° enables the subsequent mounting in set rails.
This text is machine translated.
This text is machine translated.
Features
- The design of the sliding nut allows a simple and fast setting in the rail
- the gearing of the sliding nut provides a secure hold in the FUS rail
- the assembly by turning 90° enables the subsequent mounting in set rails
