Fischer FCN Clix P 12 A4 559756 Slide-in flat T nut M12 Stainless steel A4 25 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

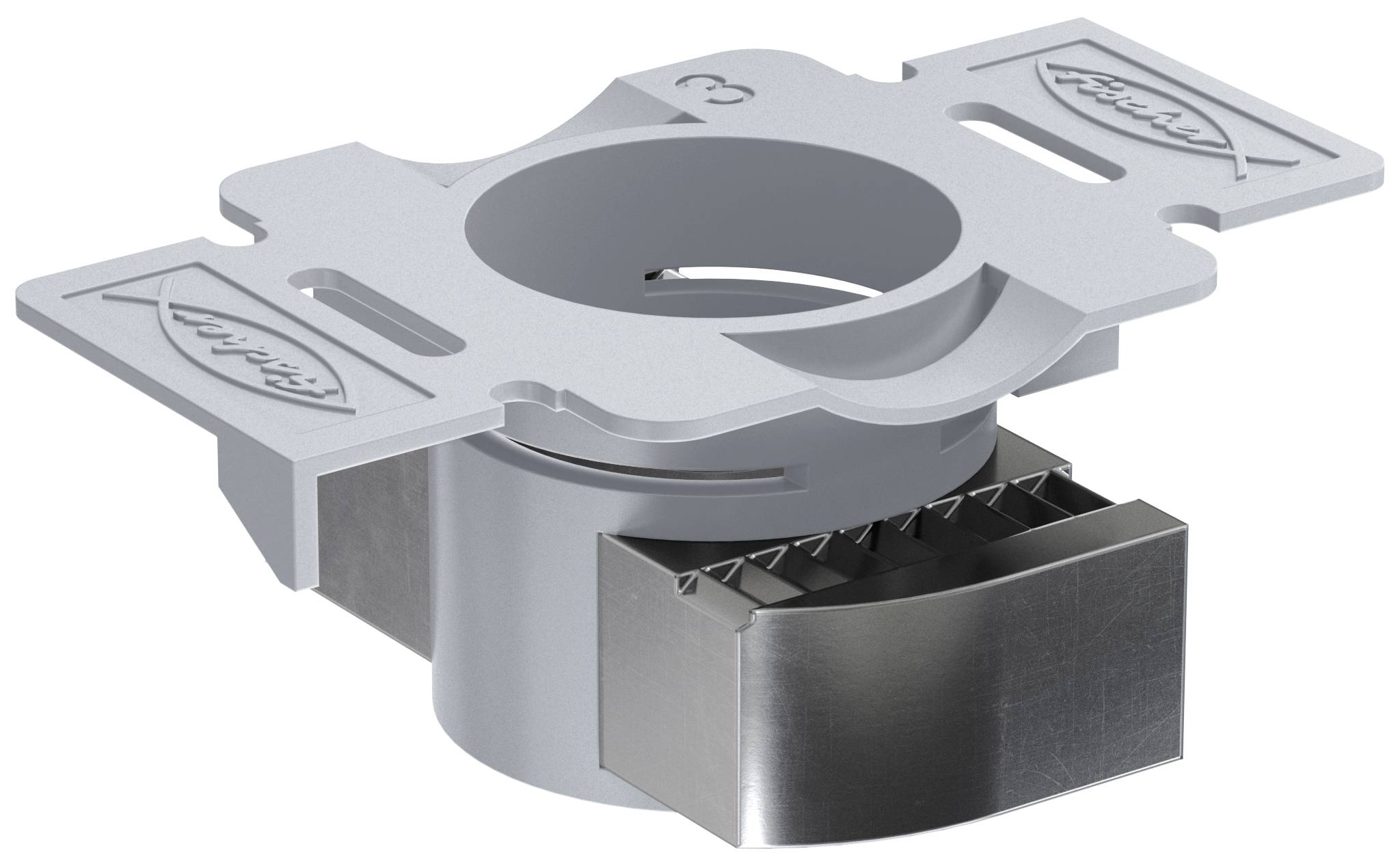

fischer FCN Clix P 12 sliding nut stainless steel A4
- A4 stainless steel
Technical specifications
- Suitable for: Connection of FUS rails and attachment parts
- Thickness: 9.5 mm
- Product type
Slide-in flat T nut
- Material
Stainless steel
- Thread size
M12
- (Ø)
12 mm
- Content
25 pc(s)
- Material properties
A4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472025 Fischer FCN Clix P 12 A4 559756 Slide-in flat T nut M12 Stainless steel A4 25 pc(s)
Description
fischer FCN CLIX P sliding nut is suitable for connecting FUS rails and attachment parts. The design allows a simple and quick setting in the rail. The spring action of the plastic clips ensures a simple and precise positioning in the rail. The assembly by turning by 90° enables the subsequent mounting in set rails.
This text is machine translated.
This text is machine translated.
Features
- The design of the sliding nut allows a simple and fast setting in the rail
- The spring action of the plastic brackets ensures a simple and precise positioning in the rail The flat plastic holder with wings of the FCN Clix P offers a good hold and thus enables a comfortable mounting of the attachment parts
- the gearing of the sliding nut provides a secure hold in the FUS rail
- the assembly by turning 90° enables the subsequent mounting in set rails
