Fischer FCN Clix P 6 559757 Slide-in flat T nut M6 Steel zinc galvanized 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

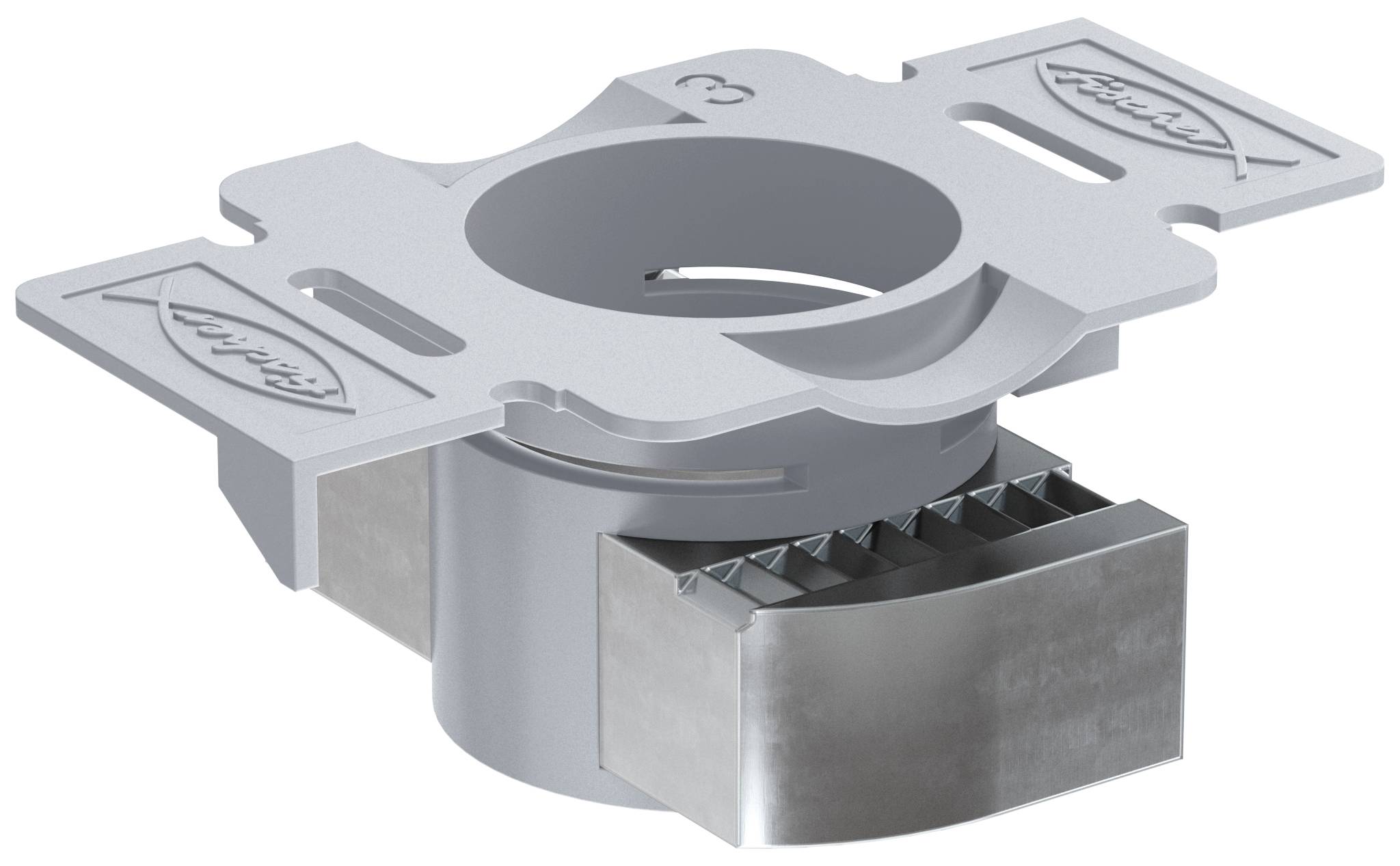

fischer FCN Clix P 6 sliding nut
- Quick assembly by 90° rotation of the sliding nut in the rail
- Easy construction of rail structures in conjunction with FUS rails
- Applied corrosion protection by galv. Galvanizing
- For use in dry indoor areas
Technical specifications
- Suitable for: Connection of FUS rails and attachment parts
- Tightening torque for bolt quality greater than or equal to 8.8: 10 Nm
- Fire test: Yes
- Max. Recommended central tensile load for FUS 1.5 mm: 2.5 kN
- Max. Recommended central tensile load for FUS 2.0 mm: 3.0 kN
- Max. Recommended central tensile load for FUS 2.5 mm: 3.0 kN
- Max. Recommended cross-section: 1.0 kN
- Thickness: 6 mm
- Product type
Slide-in flat T nut
- Material
Steel
- Thread size
M6
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472024 Fischer FCN Clix P 6 559757 Slide-in flat T nut M6 Steel zinc galvanized 50 pc(s)
Description
fischer FCN CLIX P sliding nut is suitable for connecting FUS rails and attachment parts. The design allows a simple and quick setting in the rail. The spring action of the plastic clips ensures a simple and precise positioning in the rail. The assembly by turning by 90° enables the subsequent mounting in set rails.
This text is machine translated.
This text is machine translated.
Features
- The design of the sliding nut allows a simple and fast setting in the rail
- The spring action of the plastic brackets ensures a simple and precise positioning in the rail The flat plastic holder with wings of the FCN Clix P offers a good hold and thus enables a comfortable mounting of the attachment parts
- the gearing of the sliding nut provides a secure hold in the FUS rail
- the assembly by turning 90° enables the subsequent mounting in set rails
