Name: Fischer FDZ 6/35 554898 Wedge anchors Steel zinc galvanized 100 pc(s)
Brand: Fischer
SKU: 2472184

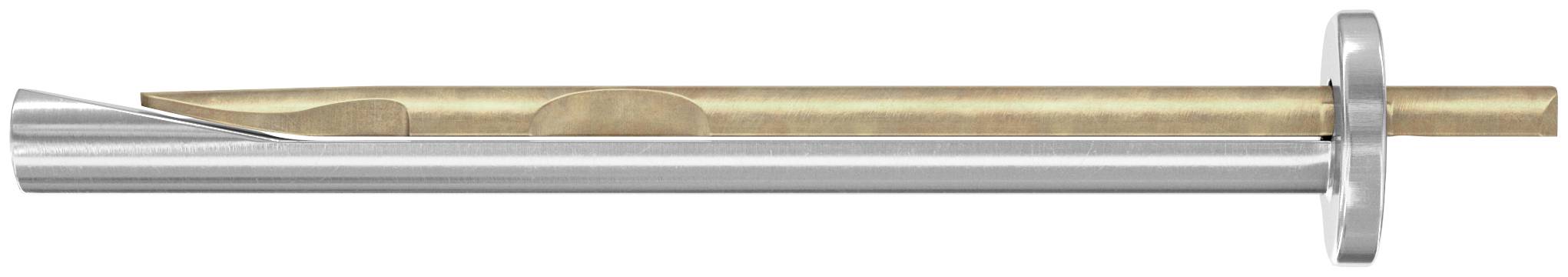

A metal tool or arrow-like shaft with a pointed tip and silver cylindrical body, shown horizontally on a white background.

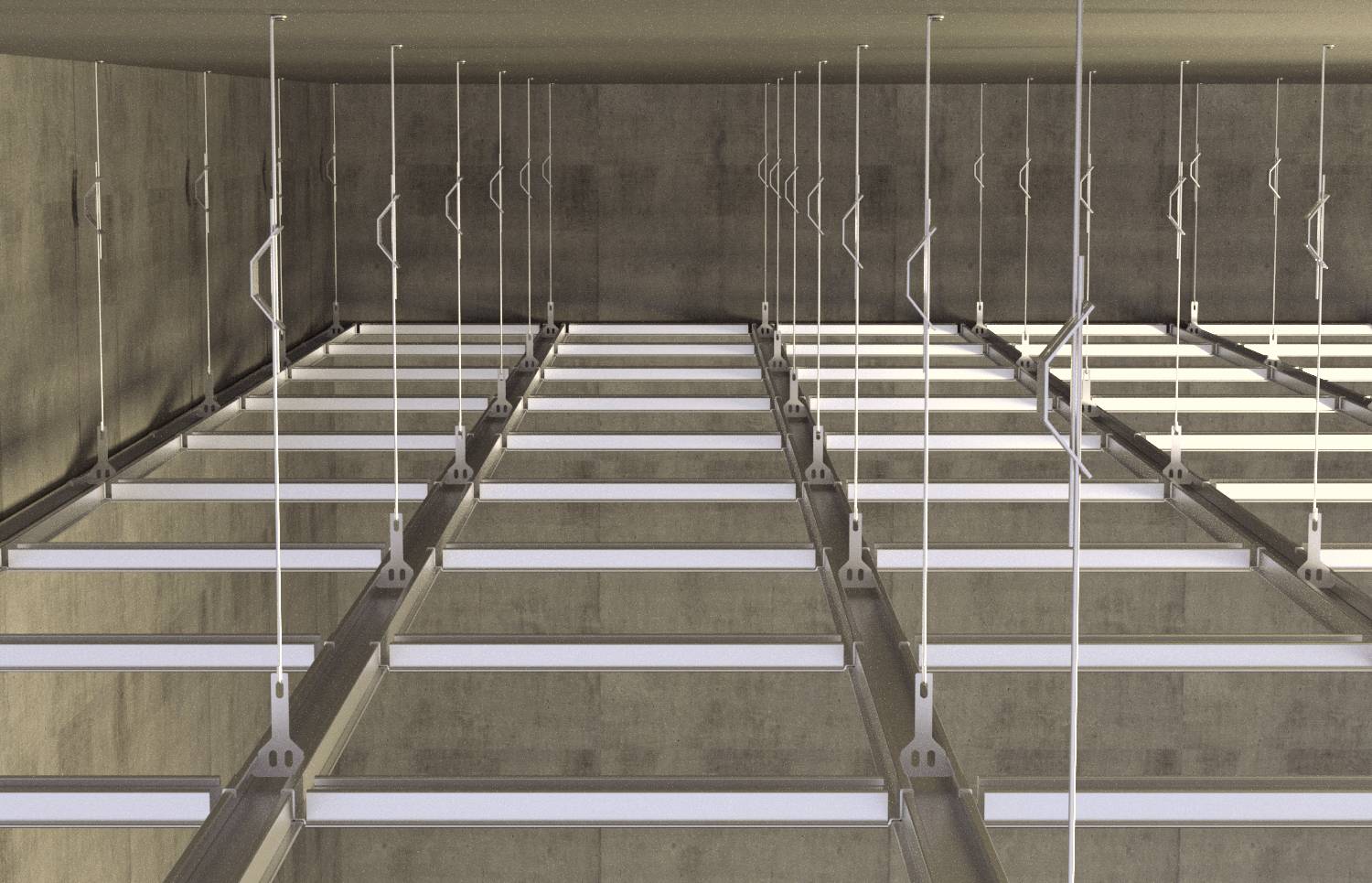

Empty metal rack framework suspended from the ceiling in an unfinished room, viewed upward, with rows of horizontal supports and hanging rods.

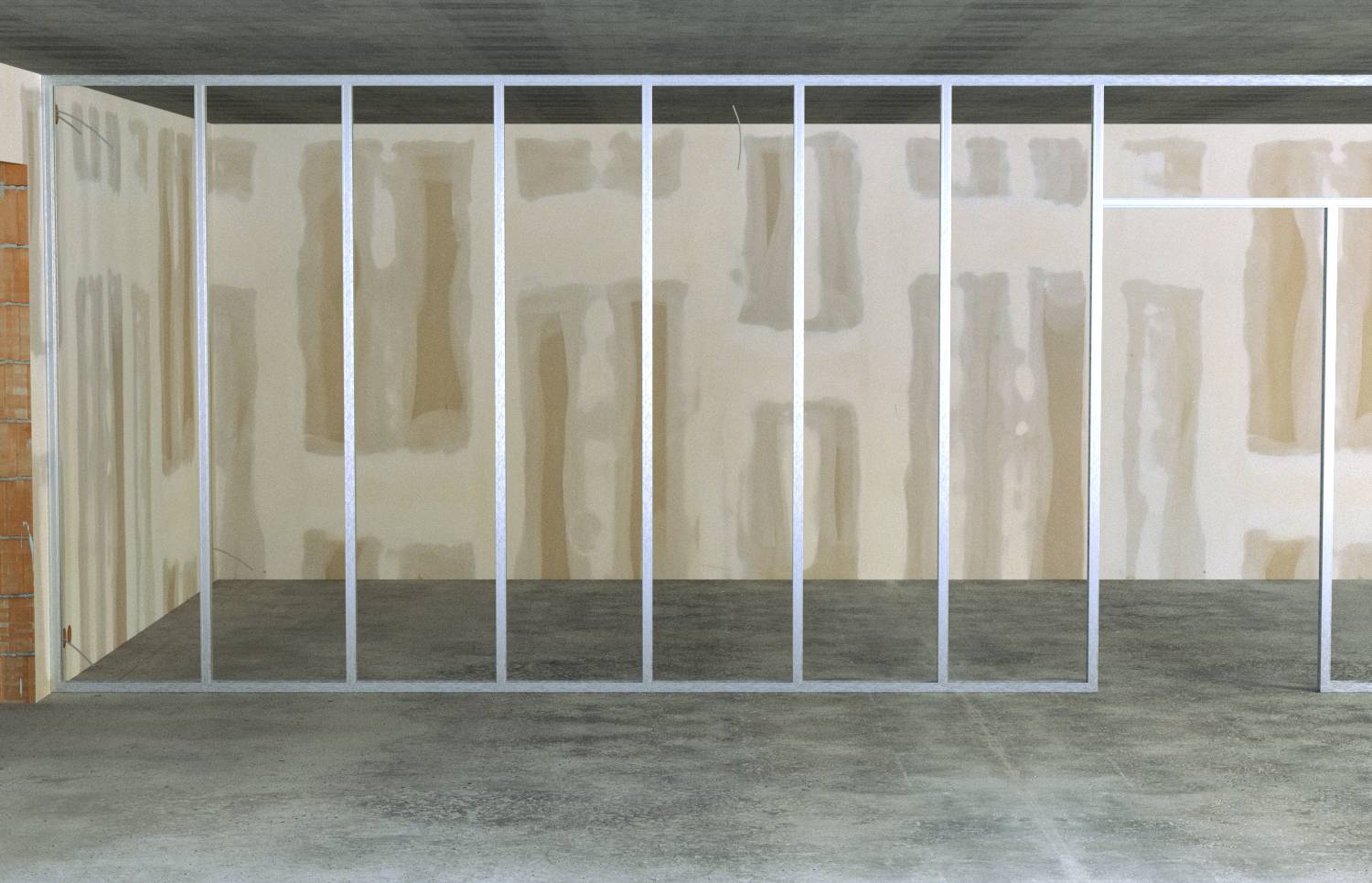

Interior room under construction with unfinished drywall, exposed framing, and a concrete floor, divided by white metal studs for new partitions.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

fischer ceiling nail FDZ 6/35

The simple principle of action enables quick impact mounting
The anchor offers the ideal price-performance ratio for an economical installation
The two impact zones ensure correct mounting

Technical specifications

Effective anchoring depth 32 mm
Head diameter 15 mm
Max. Thickness of the attachment part: 35 mm

Product type: Wedge anchors

Length: 70 mm

Content: 100 pc(s)

Material: Steel

Material properties: zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2472184 Fischer FDZ 6/35 554898 Wedge anchors Steel zinc galvanized 100 pc(s)

Description

the fischer FDZ ceiling nail is a through-hole anchor made of galvanized steel. The FDZ is approved for multiple anchoring of non-load-bearing systems in concrete. the fischer FDZ ceiling nail is ideal for anchoring metal profiles in dry construction and for anchoring wire and nonius hangers for suspended ceilings in cracked concrete. The European Technical Assessment and the suitability of fire according to fire resistance class R 120 offer a plus in safety. The ceiling nail is placed in the through-hole assembly time-saving and hit into the hole with the hammer.

This text is machine translated.

Features

The simple principle of action enables quick impact mounting
The anchor offers the ideal price-performance ratio for an economical installation
the flush-sunk expanding nail marks the complete spreading of the anchor and thus ensures the minimum displacement under load
the head embossing allows easy control of the anchoring and thus saves time
the FDZ is suitable for through-hole mounting
Use a hammer to insert the FDZ ceiling nail into the drill hole as far as it will go Do
hit the spread wedge yet
then drive the spread wedge flush to the nail head
This spreads the FDZ and tightens against the wall of the drill holes

Hints

Approved for: Concrete C20/25 to C50/60, cracked, for use as multiple mounting of non-load-bearing systems

Also suitable for: Concrete C12/15, natural stone with dense structure
