Fischer FDZ 6/5 554899 Wedge anchors Steel zinc galvanized 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

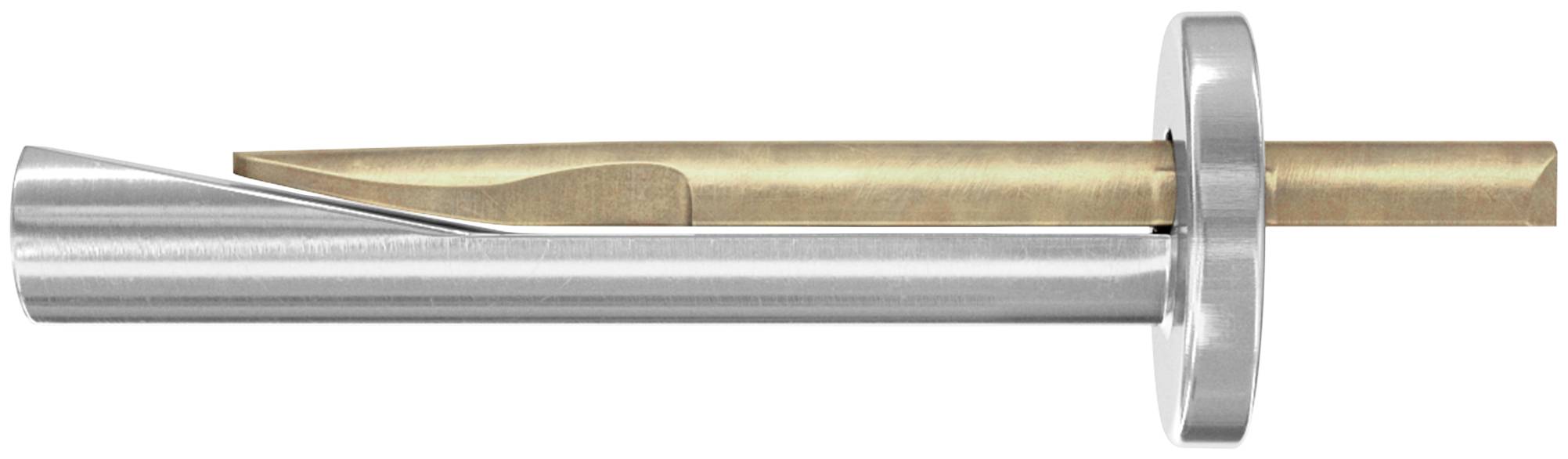

fischer ceiling nail FDZ 6/5
- The simple principle of action enables quick impact mounting
- The anchor offers the ideal price-performance ratio for an economical installation
- The two impact zones ensure correct mounting
Technical specifications
- Effective anchoring depth 32 mm
- Head diameter 15 mm
- Max. Thickness of the attachment part: 5 mm
- Product type
Wedge anchors
- Length
40 mm
- Content
100 pc(s)
- Material
Steel
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472183 Fischer FDZ 6/5 554899 Wedge anchors Steel zinc galvanized 100 pc(s)
Description

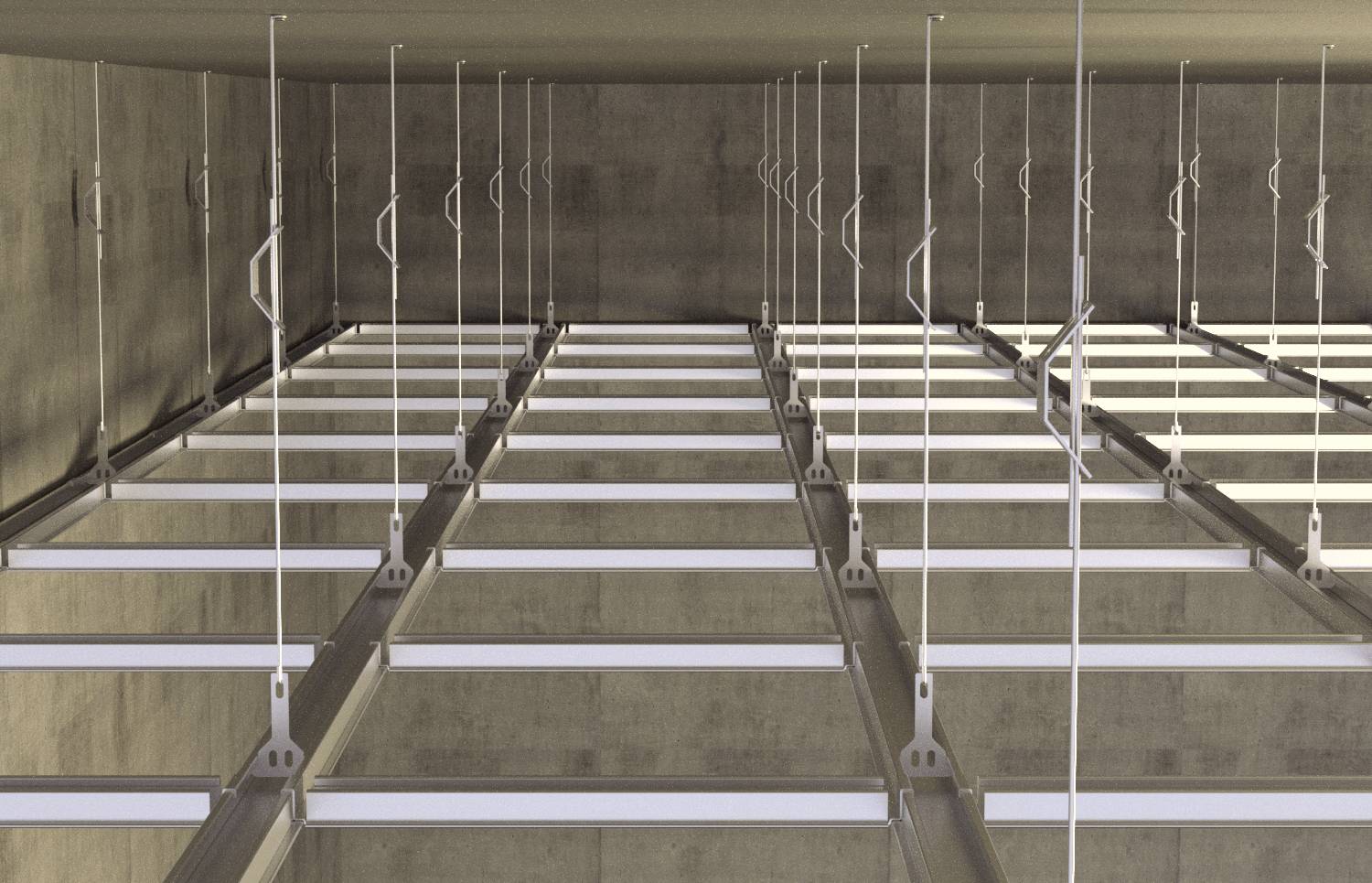

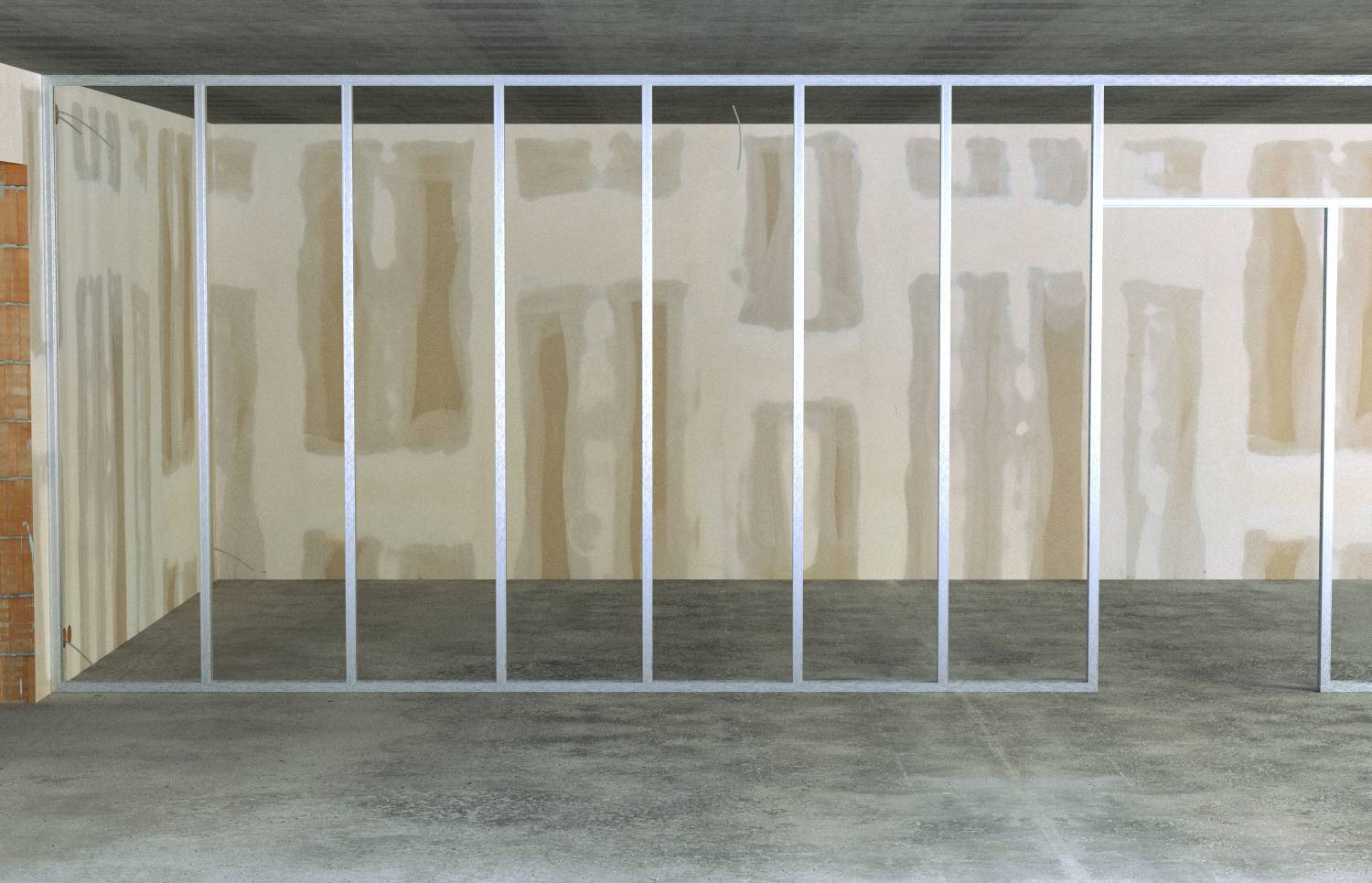

the fischer FDZ ceiling nail is a through-hole anchor made of galvanized steel. The FDZ is approved for multiple anchoring of non-load-bearing systems in concrete. the fischer FDZ ceiling nail is ideal for anchoring metal profiles in dry construction and for anchoring wire and nonius hangers for suspended ceilings in cracked concrete. The European Technical Assessment and the suitability of fire according to fire resistance class R 120 offer a plus in safety. The ceiling nail is placed in the through-hole assembly time-saving and hit into the hole with the hammer.
This text is machine translated.
This text is machine translated.
Features
- The simple principle of action enables quick impact mounting
- The anchor offers the ideal price-performance ratio for an economical installation
- the flush-sunk expanding nail marks the complete spreading of the anchor and thus ensures the minimum displacement under load
- the head embossing allows easy control of the anchoring and thus saves time
- the FDZ is suitable for through-hole mounting
- Use a hammer to insert the FDZ ceiling nail into the drill hole as far as it will go Do
- hit the spread wedge yet
- then drive the spread wedge flush to the nail head
- This spreads the FDZ and tightens against the wall of the drill holes
Hints
Approved for: Concrete C20/25 to C50/60, cracked, for use as multiple mounting of non-load-bearing systems
Also suitable for: Concrete C12/15, natural stone with dense structure
