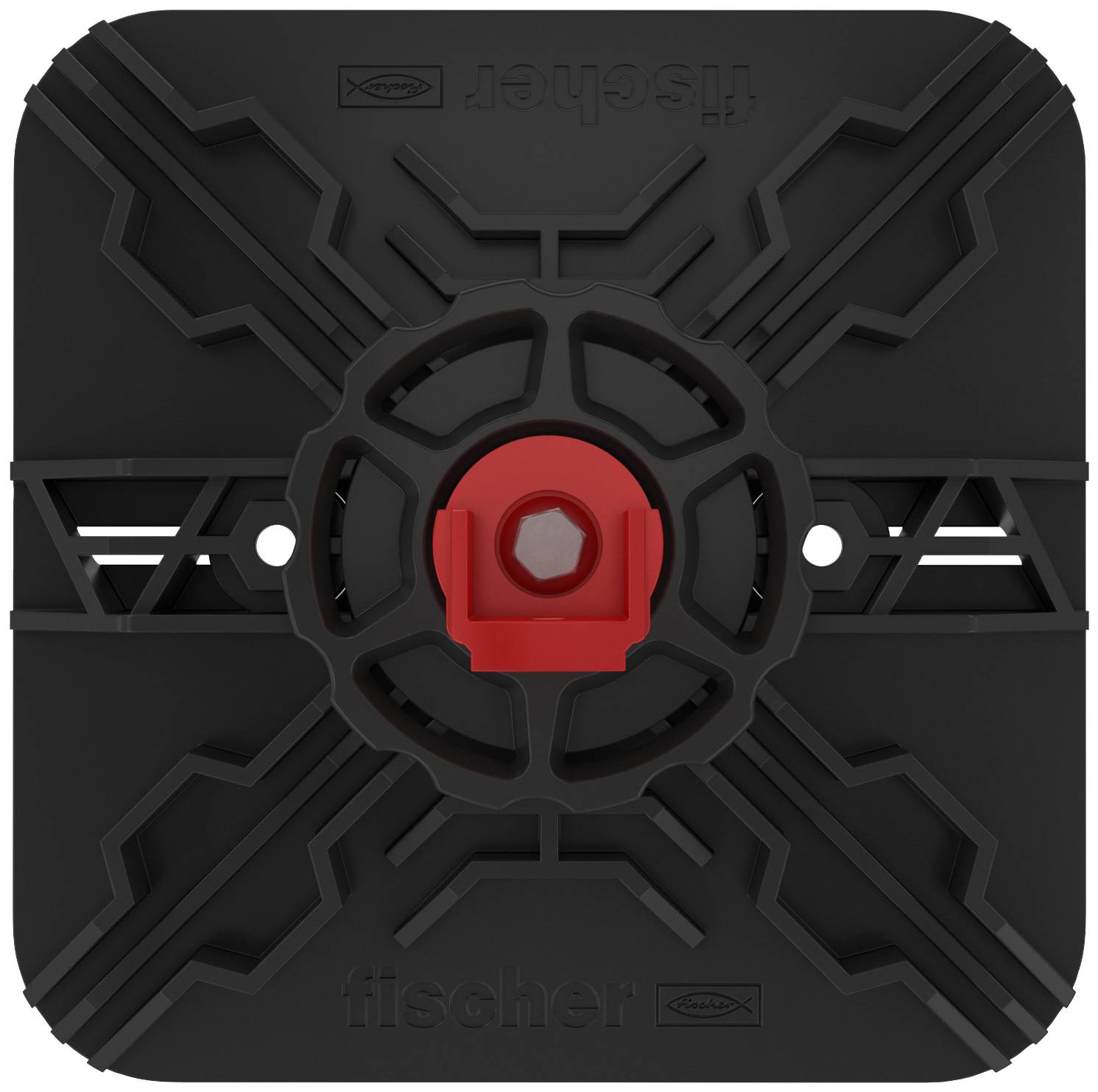

Black square wall plate with an X-shaped design and a red central connector, likely a mounting or power interface.

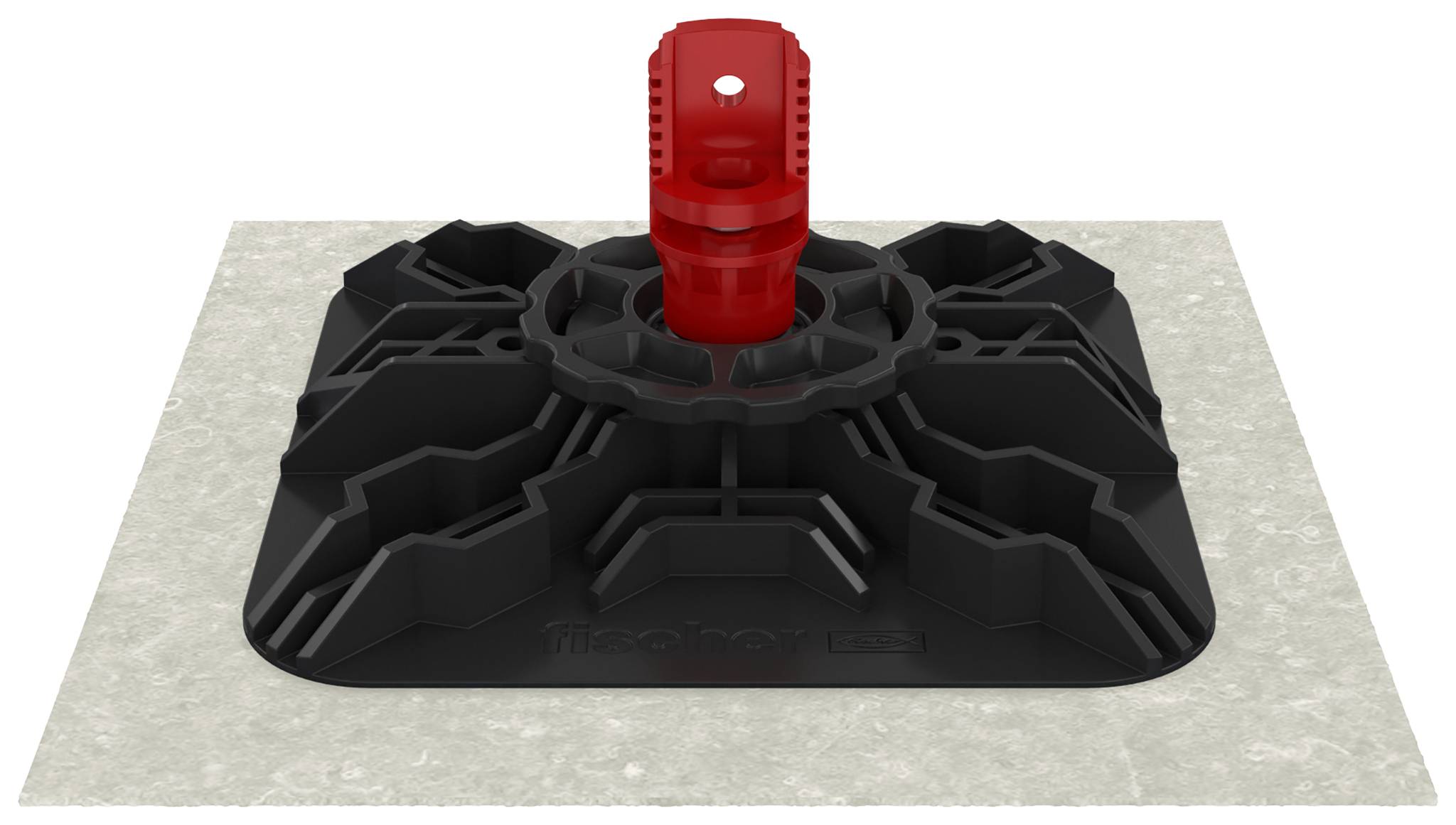

Black plastic pedestal support with a red vertical post on a light gray slab, shown in 3D perspective on a white background.

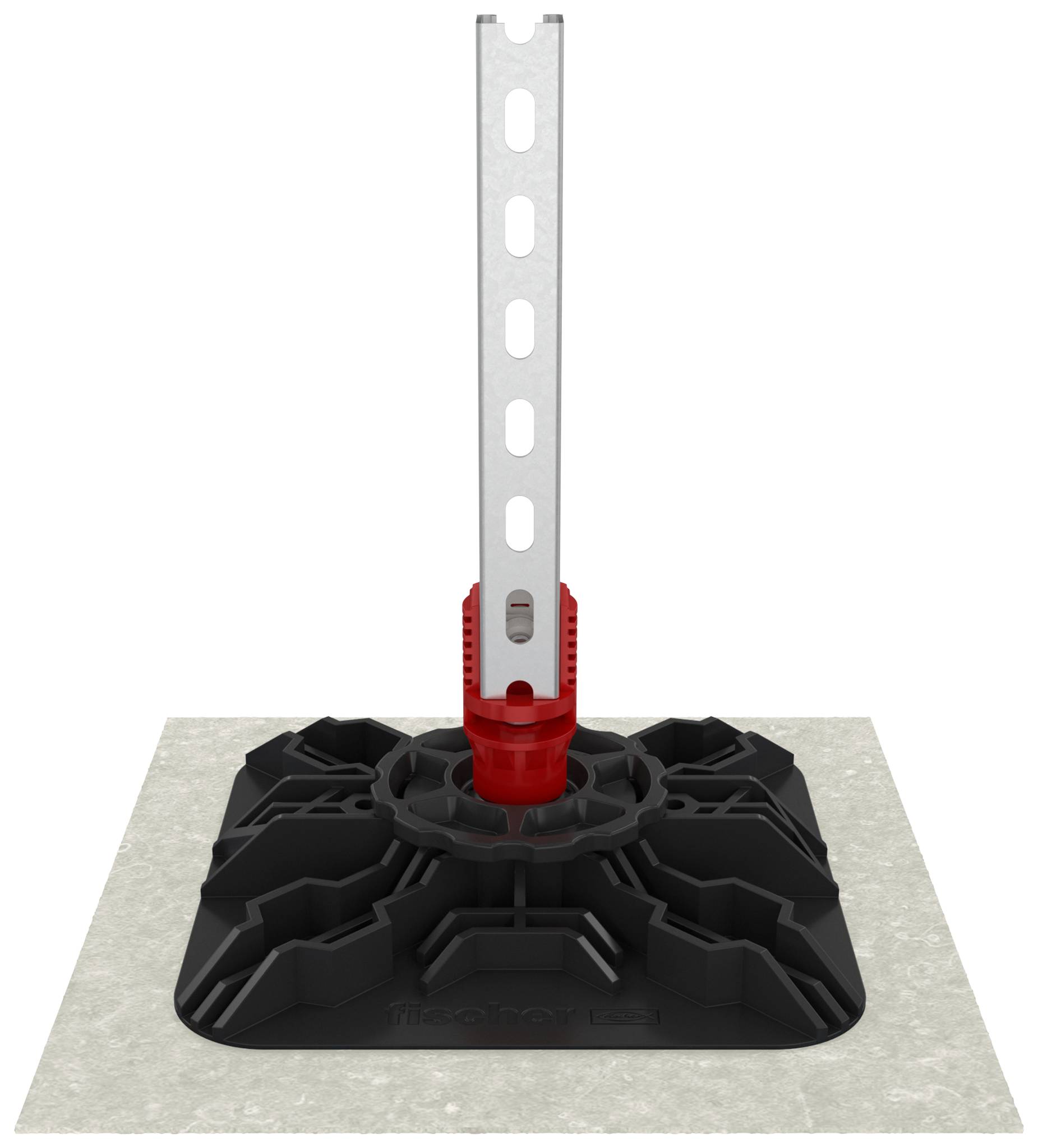

Adjustable metal support post mounted in a black plastic base on a square slab, likely a pedestal or leveling support system.

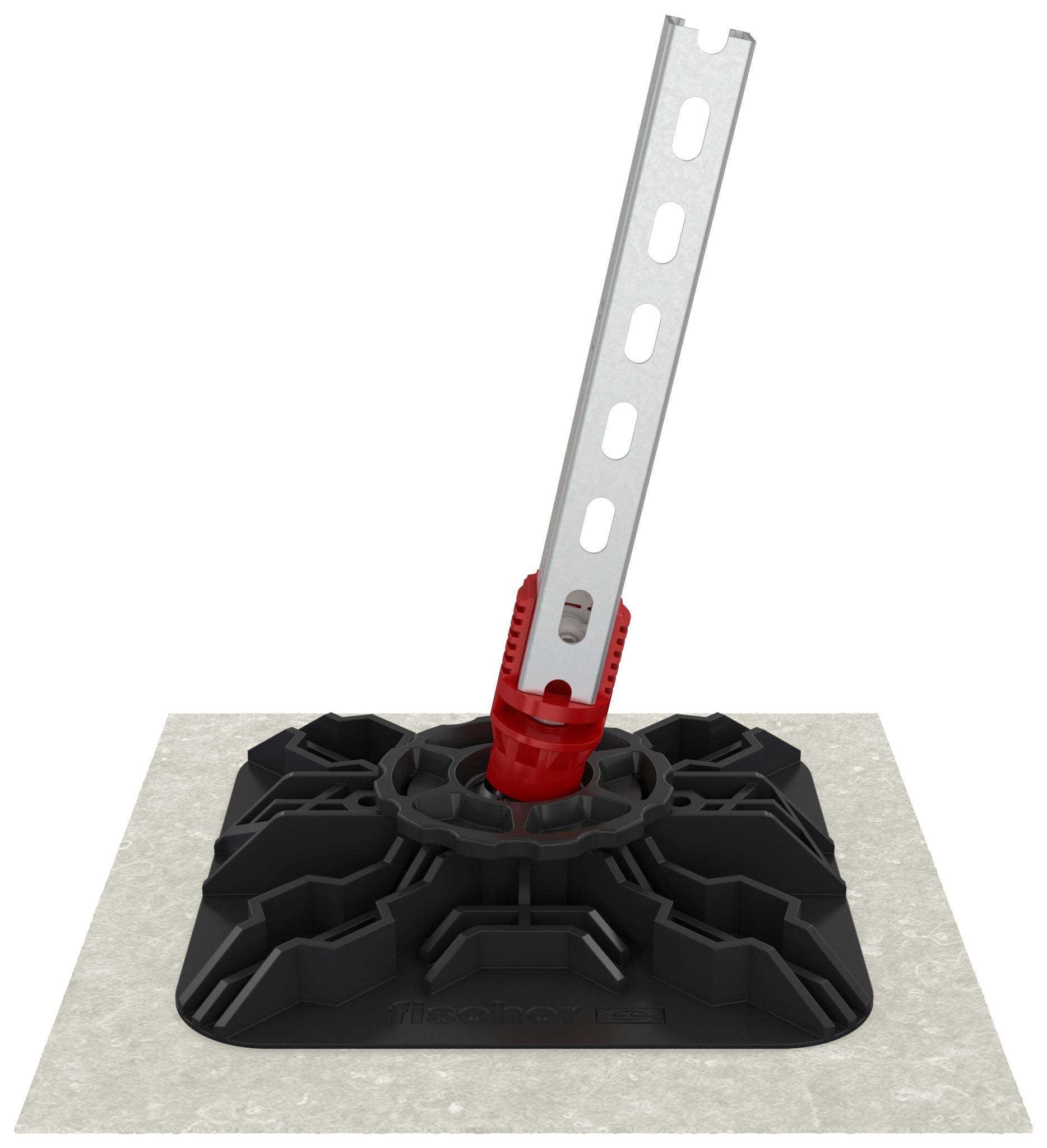

Adjustable metal pedestal support mounted on a black plastic base on a concrete slab, holding a vertical silver support post.

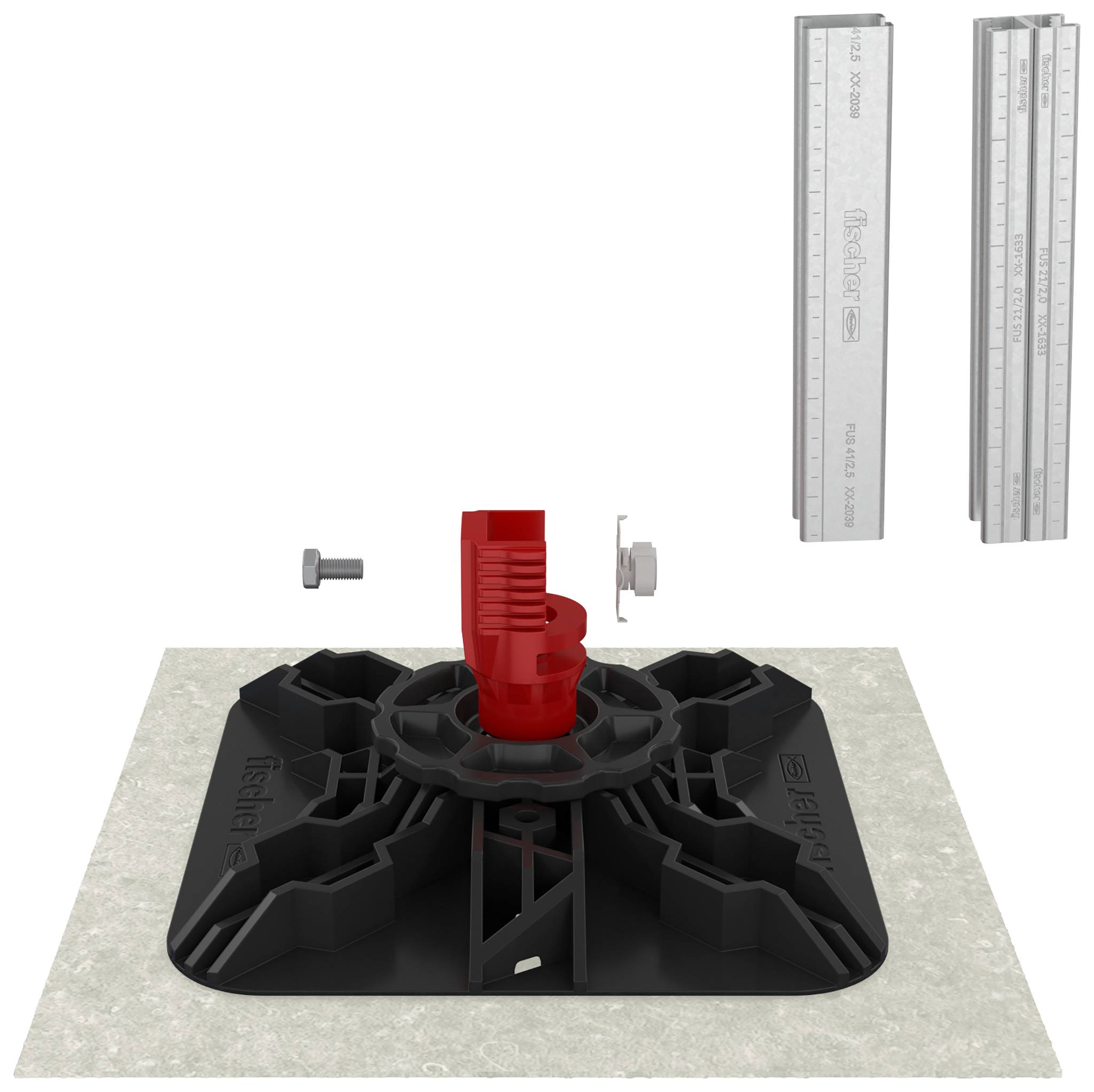

3D illustration of a red post mounted in a black base on a concrete slab, with screws and alignment tools shown above to demonstrate installation.

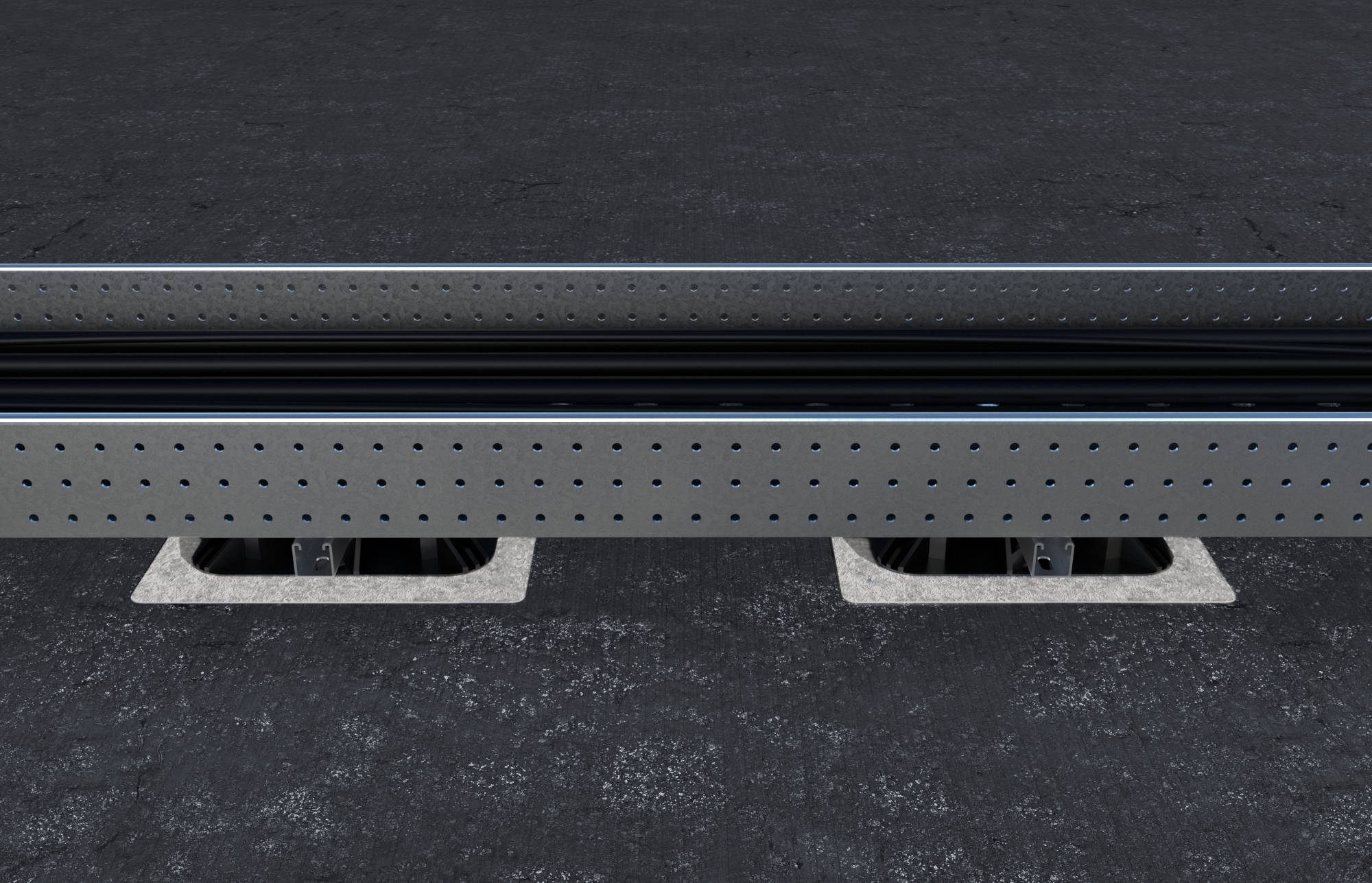

Close-up of a black industrial metal barrier or bench edge with perforated panels and mounting supports on a dark floor.

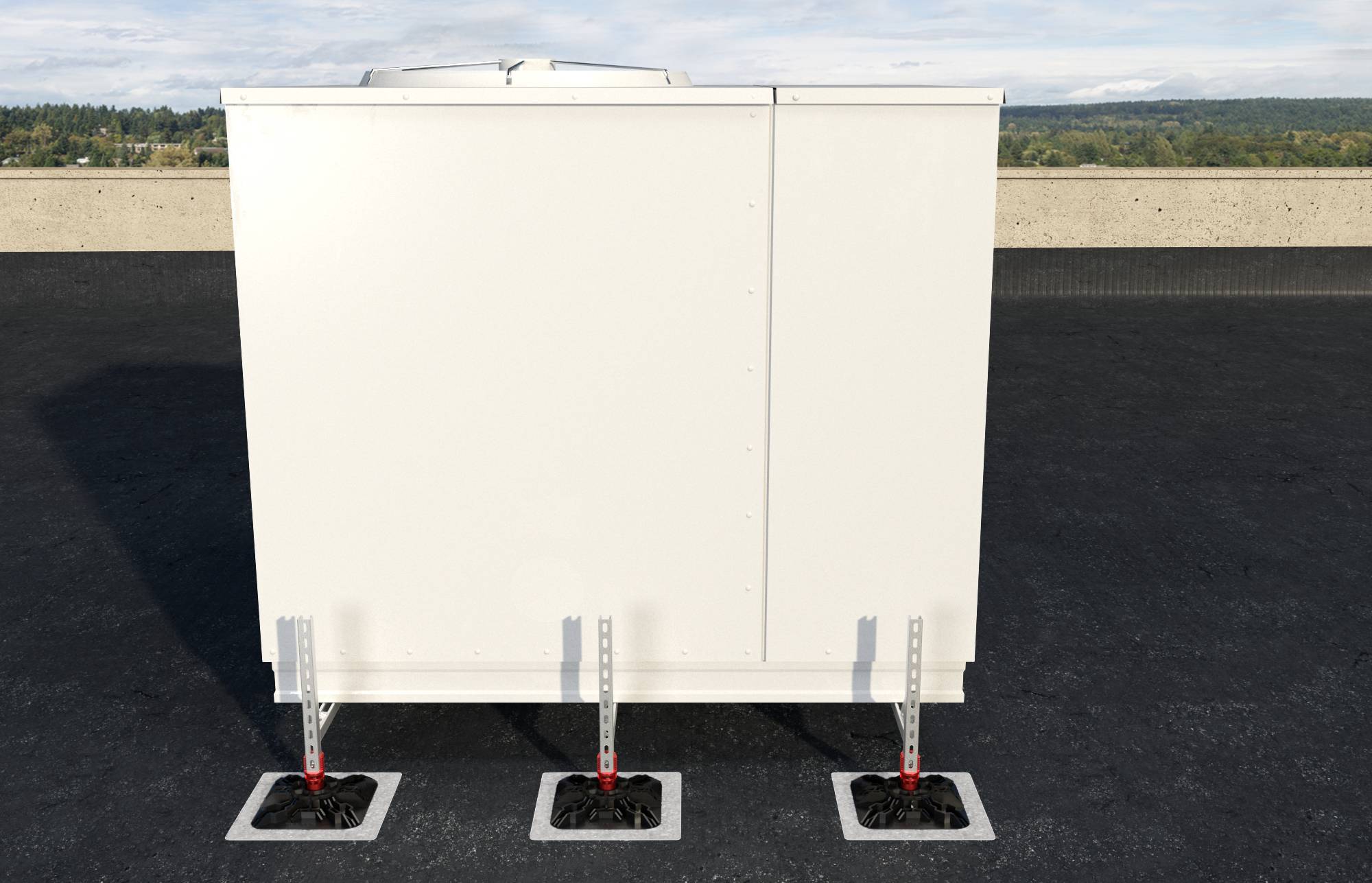

Large white rooftop HVAC or utility unit secured with three metal supports on a flat roof, with a low wall and distant trees behind it.

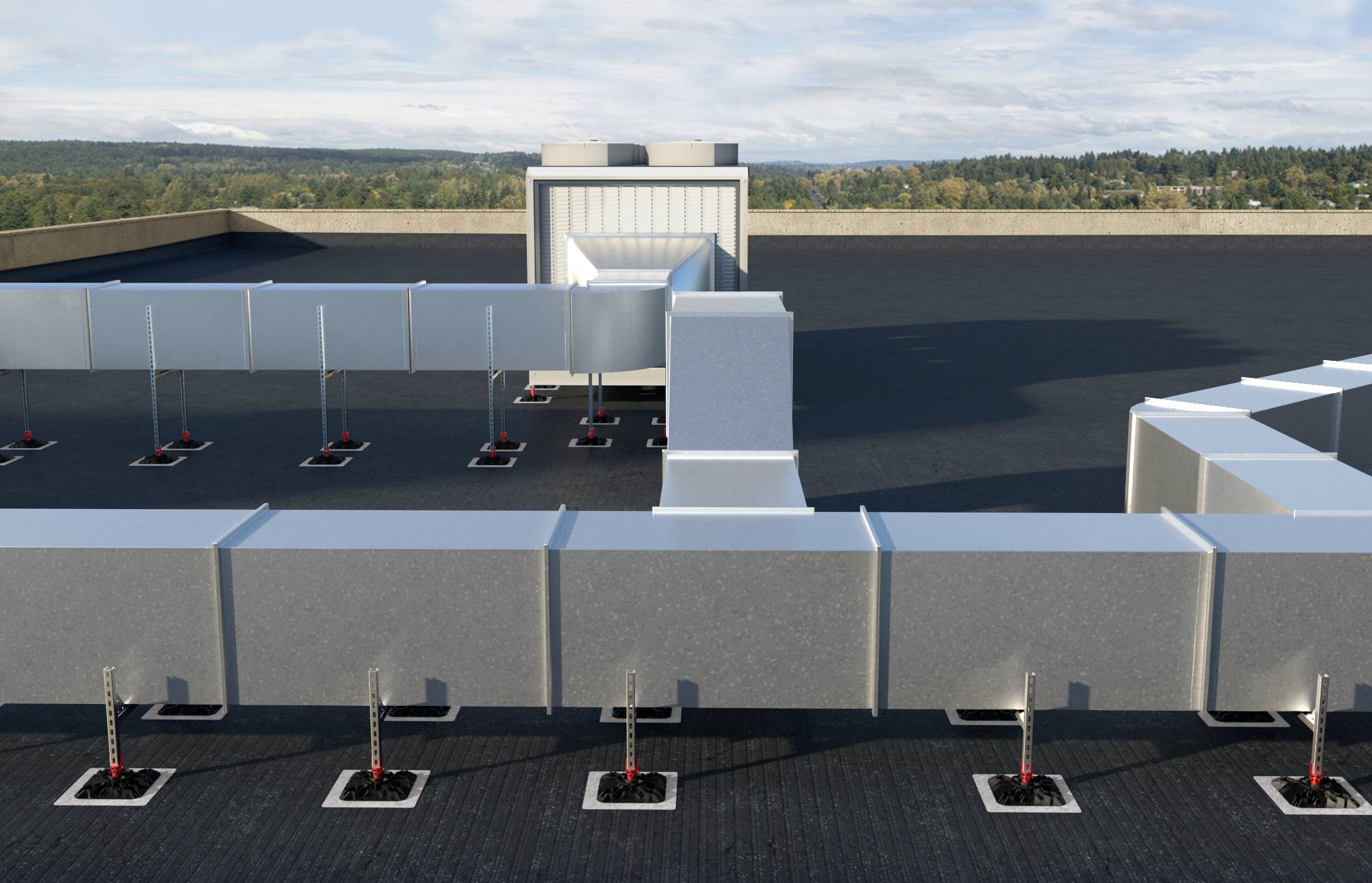

Rooftop HVAC ductwork and large rectangular ventilation units mounted on a flat roof with support brackets and a central rooftop access structure.

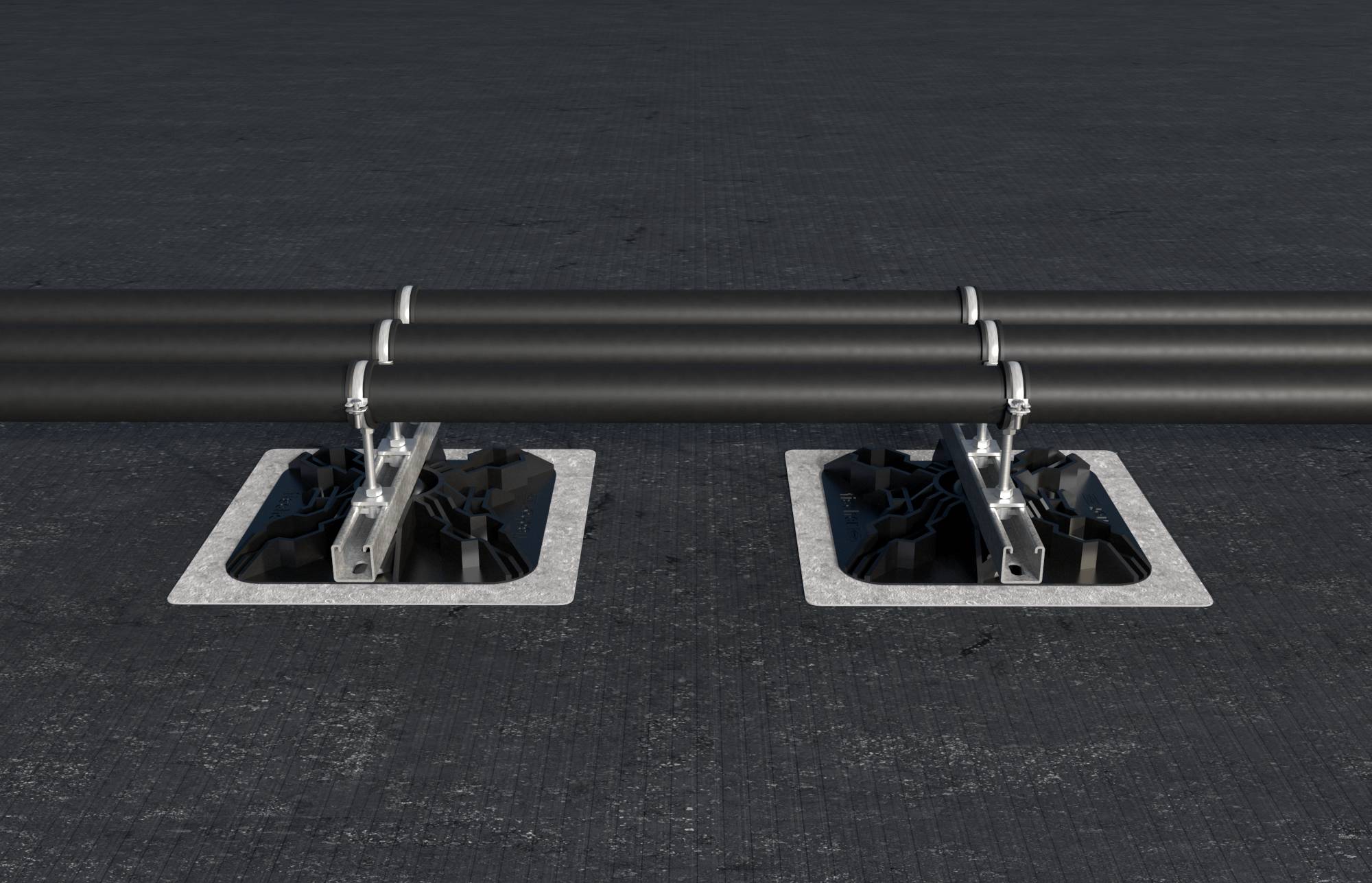

Two black pipes secured by metal clamps over two square floor openings on a dark industrial surface.<br>

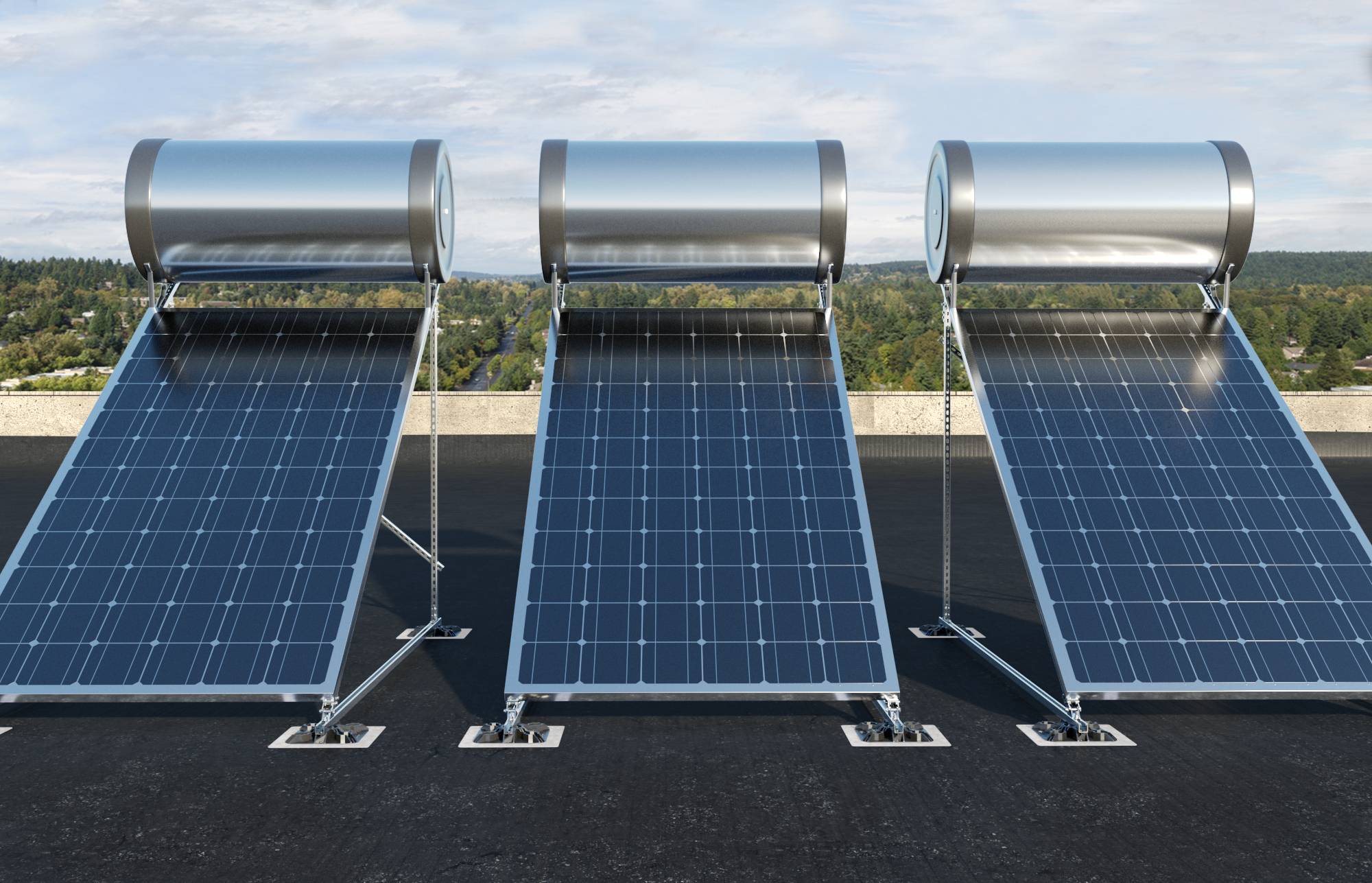

Three solar thermal collector panels on a rooftop, each with a cylindrical tank above the panel, against a cloudy sky.

Rooftop view of four large utility pipes running through a metal support frame, with a distant tree-lined landscape beyond the parapet wall.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer FFRBH Flat-roof joint

Optimum load distribution and reduction of point loads on the flat roof. This protects against notices of defects and claims for recourseHand wheel permits the continuous adjustment of the angle of inclination up to 12° and reduces the installation work sustainably, since no further aids are neededRotatable bearing holder enables a 360° rotation of the holder of the FUS mounting rails and thus allows the placement of the flat holder in any position

Technical specifications

Tightening torque 40 NmMax. Recommended central load (standing): 20.0 kN

Product type: Flat roof base

Dim: (L x W x H) 340 x 340 x 168 mm

Content: 2 pc(s)

Width: 340 mm

Height: 168 mm

Length: 340 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2699382 Fischer FFRBH Flat roof base 340 mm 559128 2 pc(s) (L x W x H) 340 x 340 x 168 mm

Description

The fischer flat roof base is the safe and variable attachment of installations on the flat roof and contains product solutions that ensure optimum load transfer to the roof. The flat roof feet do not allow the roof skin to be damaged by the flat design as well as the additional protection and separation layers. Similarly, the flat roof feet work with their attachments matching the FUS mounting rail system in hot-dip galvanized design as an ideal basis for flat roof constructions.

This text is machine translated.
