Fischer FHBC Mounting bracket 90 mm Steel 557375 10 pc(s) (L x W) 90 mm x 55 mm
EAN:
Part number:
Item no:
Highlights & Details

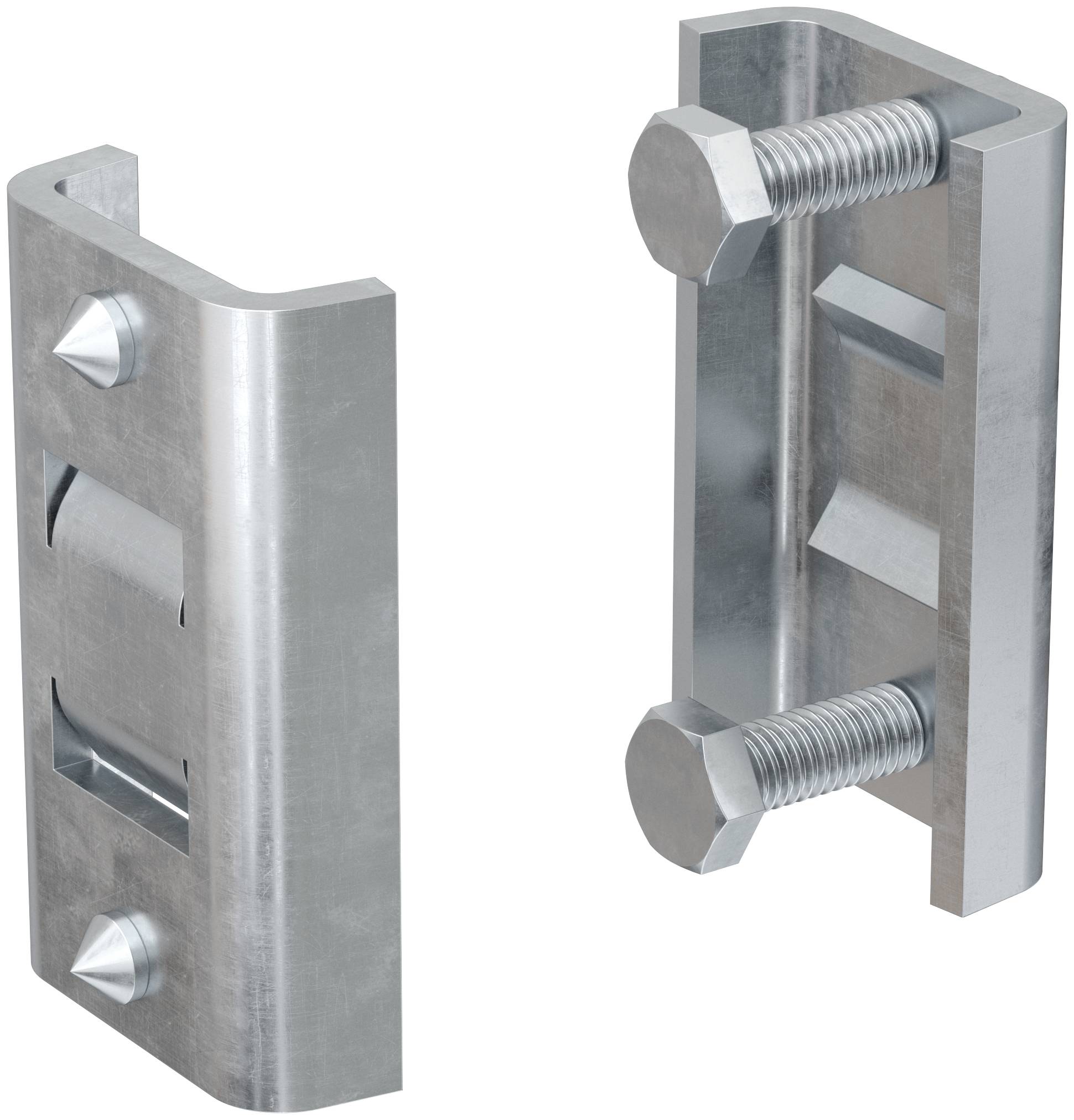

fischer FHBC terminal console
- For mounting FUS profile rails between the flanges of steel girders and U-profiles
- Suitable for FUS rails FUS 41
- In indoor and outdoor areas and in environments with high material stress due to corrosion
Technical specifications
- Drive: SW 17
- Tightening torque 22 Nm
- Max. recv. Static load (central train): 3.60 kN
- Product type
Mounting bracket
- Dim
(L x W) 90 mm x 55 mm
- Material
Steel
- Content
10 pc(s)
- Material properties
hot-dip galvanized
- Width
55 mm
- Length
90 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472179 Fischer FHBC Mounting bracket 90 mm Steel 557375 10 pc(s) (L x W) 90 mm x 55 mm
Description

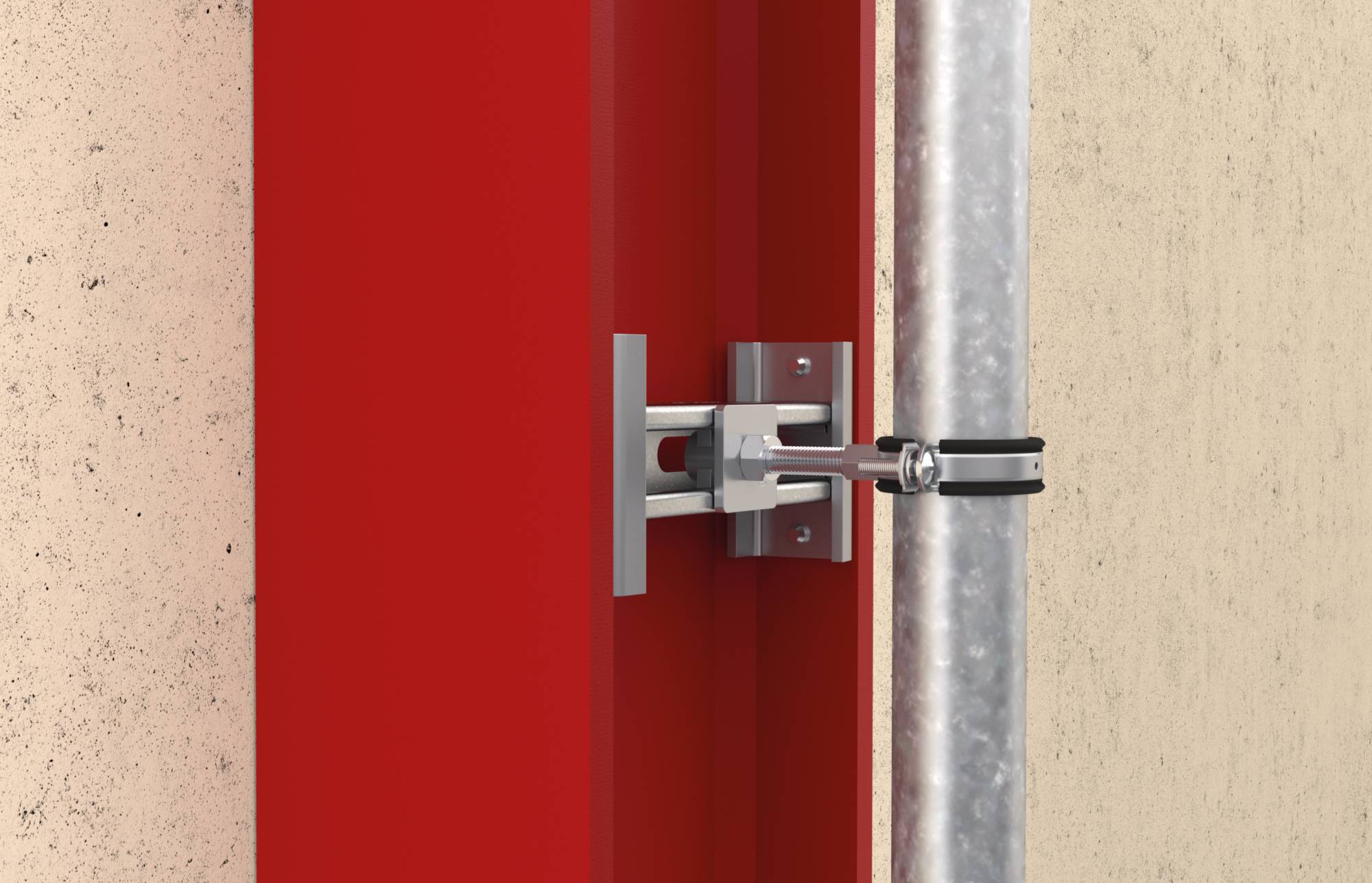

FHBC terminal console - terminal console for mounting FUS profile rails on steel beams.
This text is machine translated.
This text is machine translated.
Features
- Easy mounting of FUS profile rails on the flanges of steel beams The FHBC enables the mounting of FUS
- profile rails on steel beams without drilling
- The surface coating provides a high degree of corrosion protection against environmental influences such as moisture, water, salt water and other corrosive substances
