Name: Fischer FTRB 45 Mounting bracket Steel 576536 20 pc(s)
Brand: Fischer
SKU: 3729020

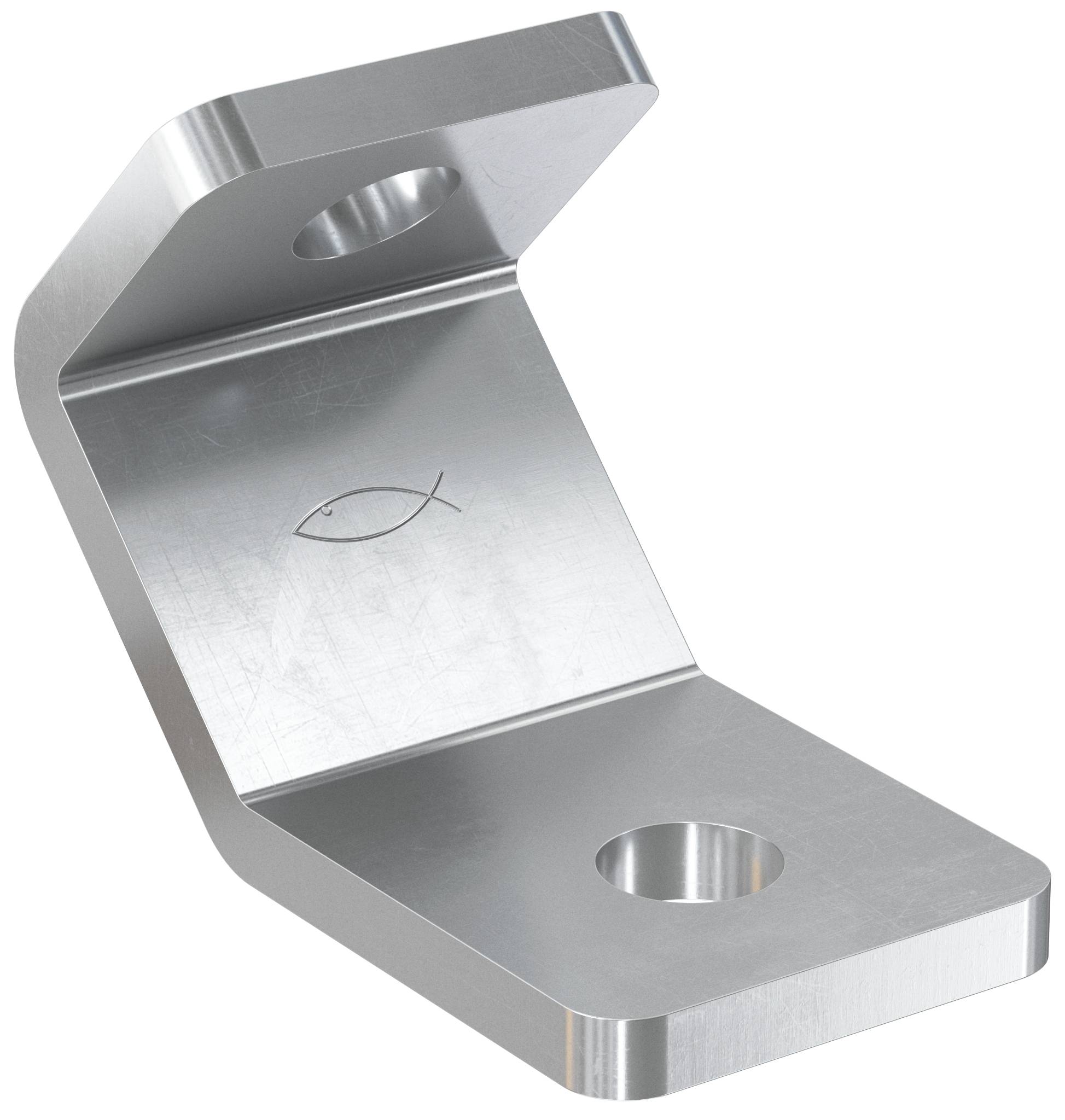

A silver metal L-shaped bracket with two countersunk holes and a small engraved fish symbol on a white background.

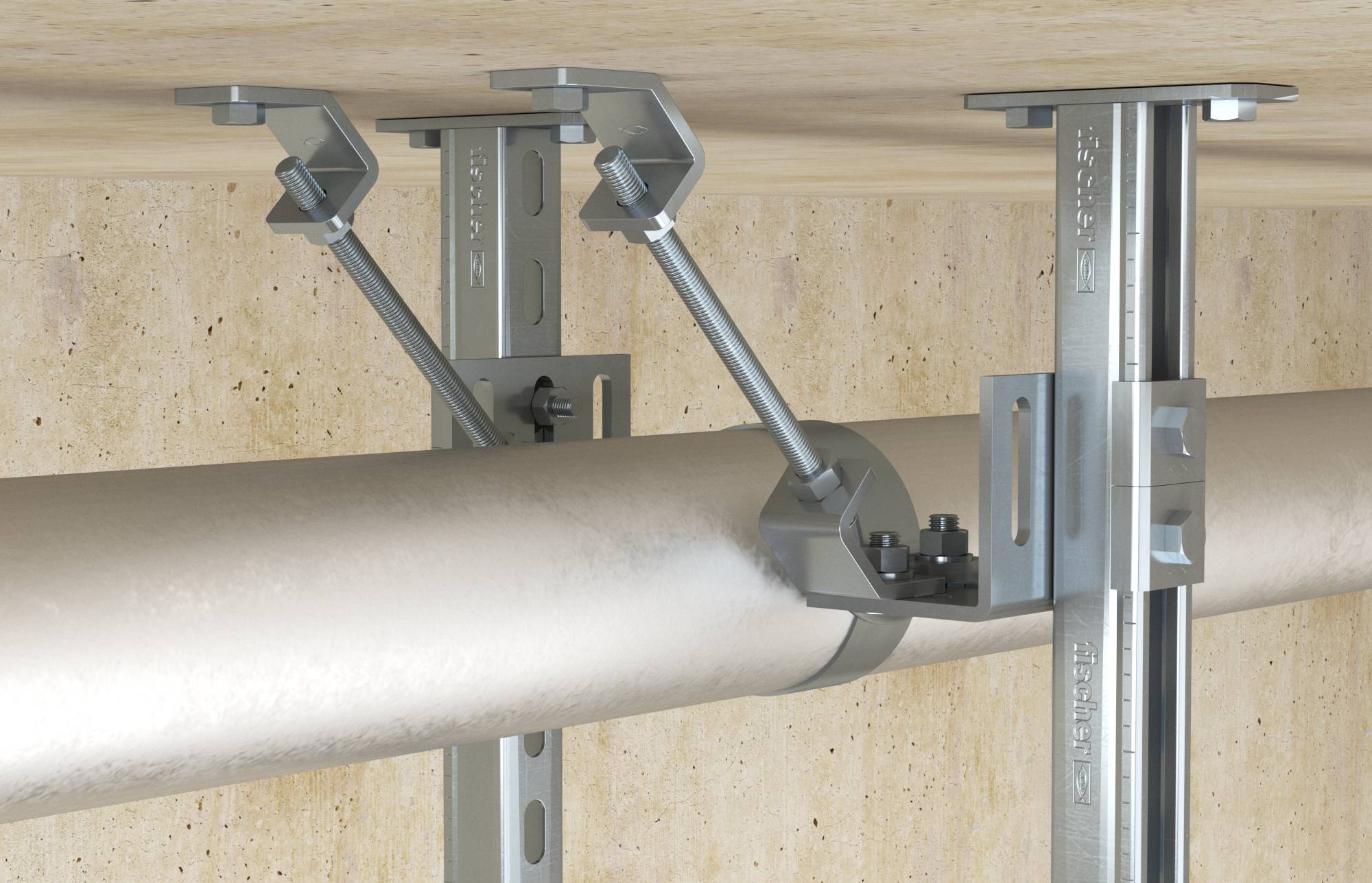

Metal pipe secured to a ceiling and wall with adjustable brackets and support rods.

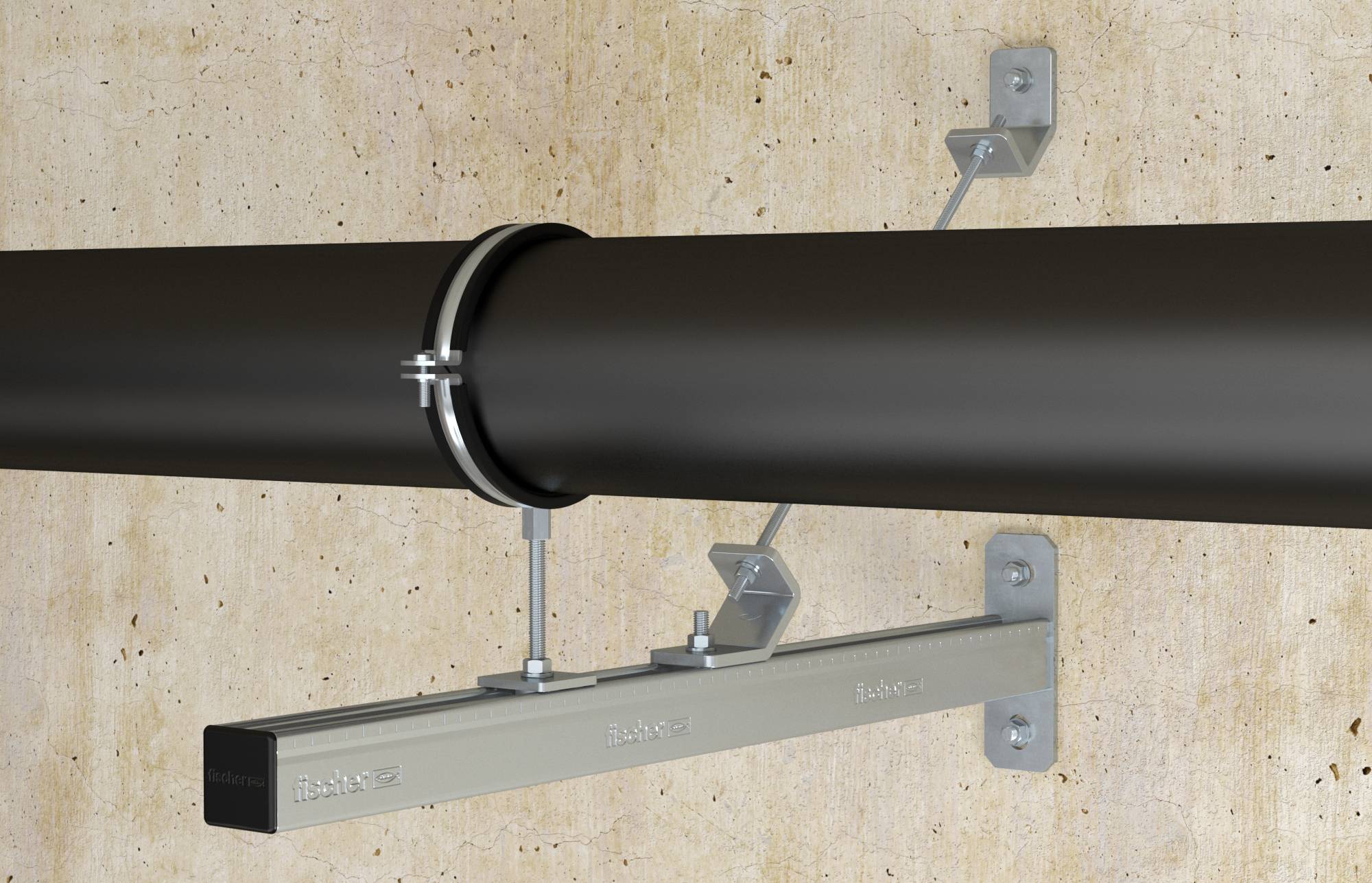

Black pipe secured to a concrete wall with metal brackets and a support arm, showing an installed piping mount.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fischer FTRB 45 clamping element, galvanized steel

Simple stretching or bracing with the help of threaded rods
Enables the reinforcement of track constructions with the help of threaded rods
The design allows an application as bracing for fixed points, FUS rail structures and wall consoles

Technical specifications

Product type: Mounting bracket

Material: Steel

Content: 20 pc(s)

Material properties: zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729020 Fischer FTRB 45 Mounting bracket Steel 576536 20 pc(s)

Description

The Fischer FTRB 45 tension element is a 45° element for the voltages of Fischer FUS mounting rails with threaded rods to the underground. The tensioning element is mounted with an M12 screw and the FCN Clix P12 slide nut on the Fischer FUS mounting rail. The tensioning is carried out by using a threaded rod M12 and M12 hexagonal nuts. The holes of the FTRB 45 enable the fixing directly to wall or ceiling or on a mounting rail. The design in galvanized surface is suitable for indoor use.

This text is machine translated.
