Fischer FUS 21/1,5 - 2 m Mounting rail 2000 mm 545120 2 m (L x W x H) 2000 x 41 x 41 mm
EAN:
Part number:
Item no:
Highlights & Details

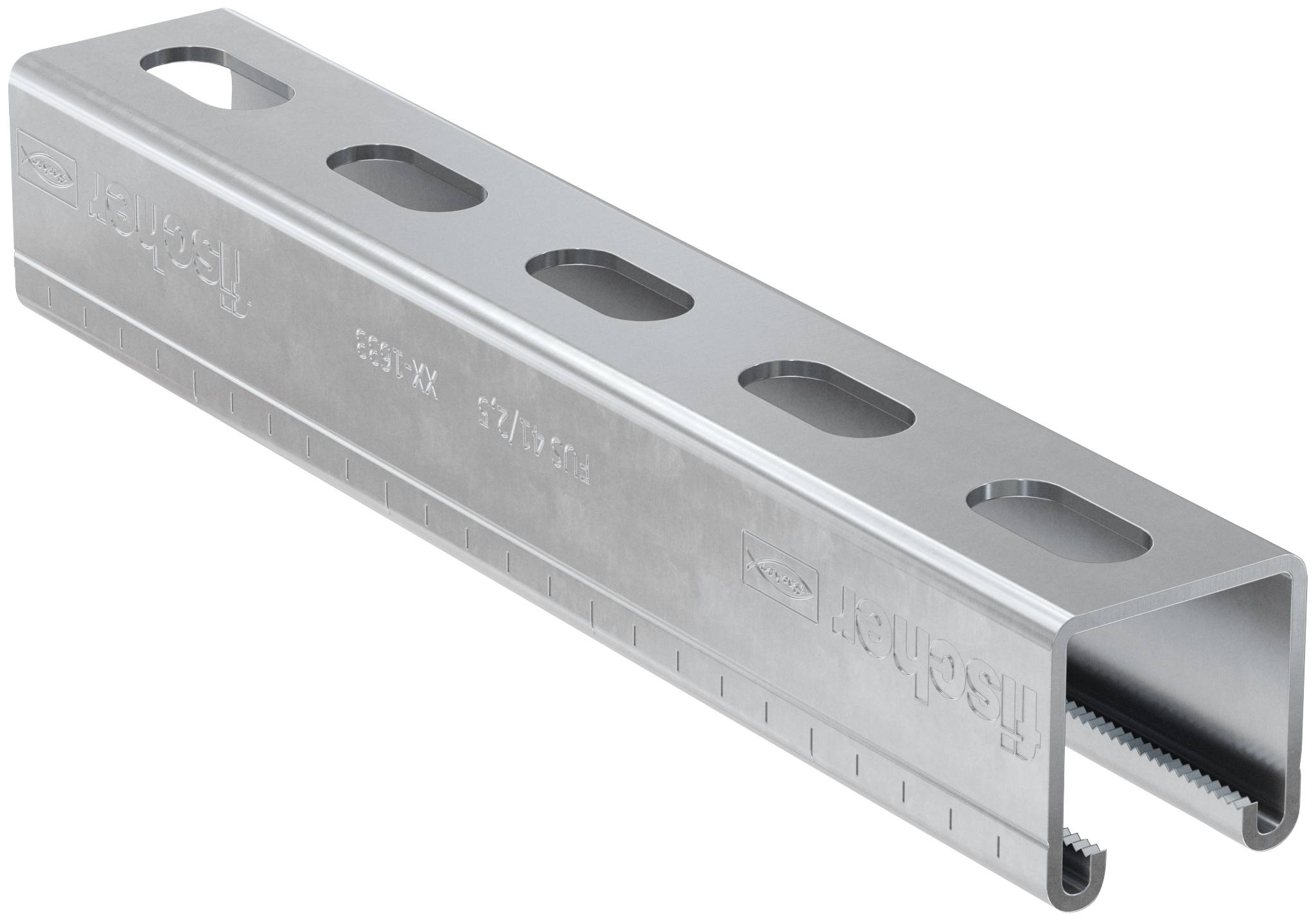

Fischer FUS 41/1.5 2 m mounting rail
- The fire test report according to MLAR/EN13501 guarantees objectively tested functional safety.
- The same rail base geometry ensures the use of the extensive range of accessories for all rail dimensions.
- The pronounced gearing in the rail offers the sliding nut a secure hold for accepting high transverse loads, such as for vertical mounting.
Technical specifications
- Product type
Mounting rail
- Dim
(L x W x H) 2000 x 41 x 41 mm
- Content
2 m
- Weight
3360 g
- Width
41 mm
- Height
41 mm
- Length
2000 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2148208 Fischer FUS 21/1,5 - 2 m Mounting rail 2000 mm 545120 2 m (L x W x H) 2000 x 41 x 41 mm
Description

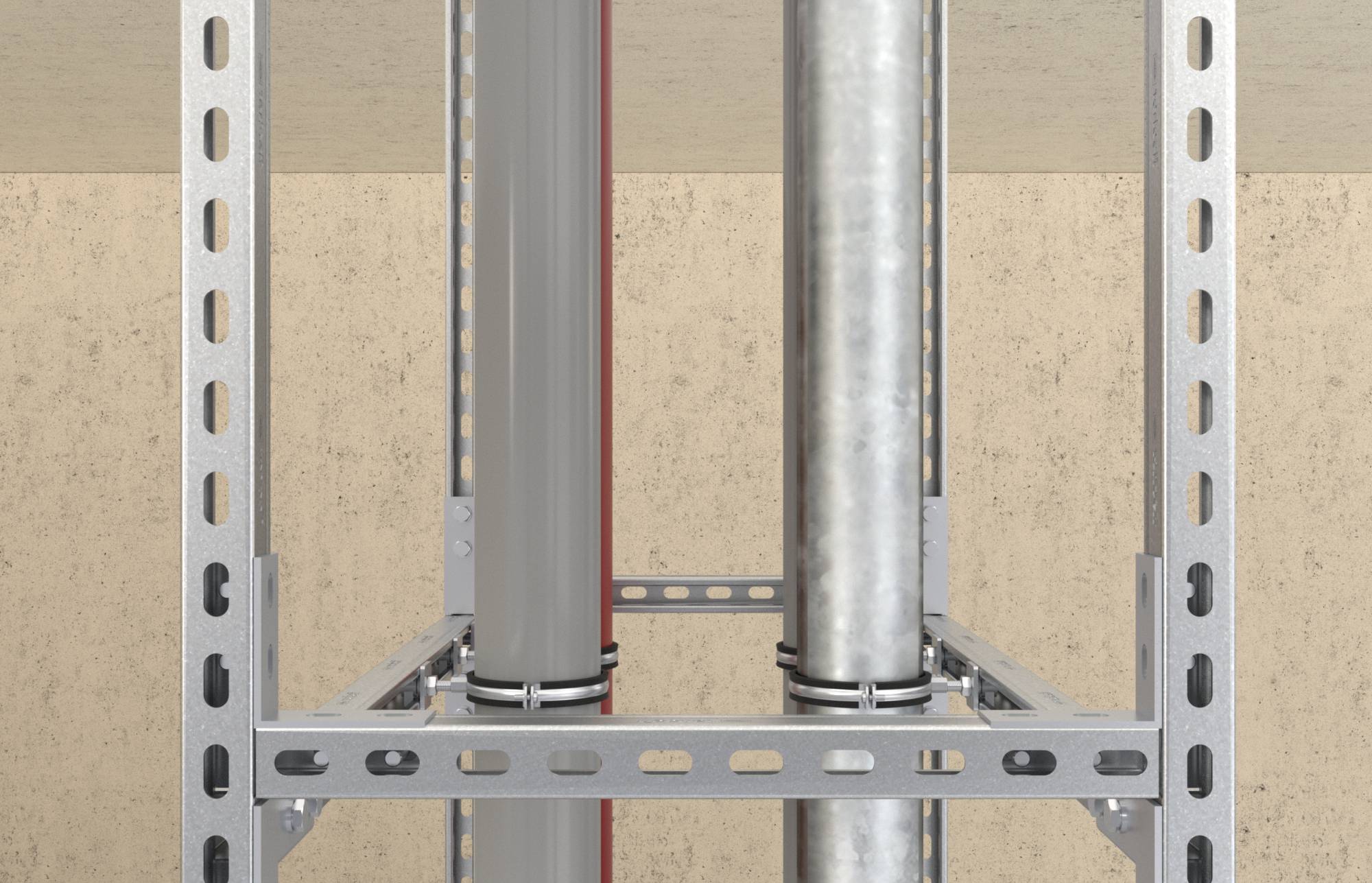

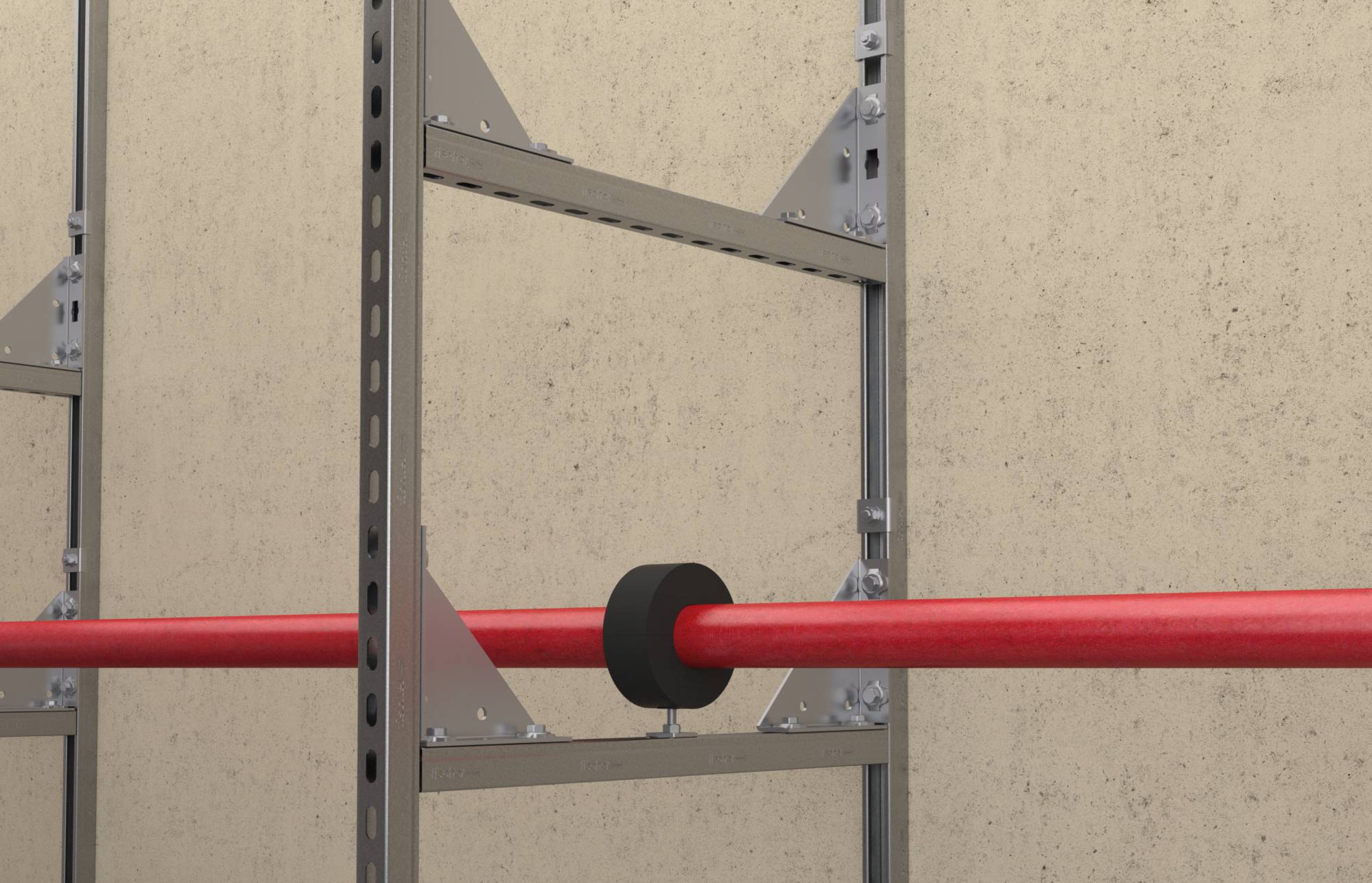

The high-quality fischer FUS 41/1.5 - 2 m mounting rail is a U-profile mounting rail for the production of safe horizontal and vertical installations. Enables quick and efficient attachment of pipe strands and supporting structures. Length 2000 mm The rail geometry ensures the use of the extensive fischer accessories range. The pronounced gearing in the rail provides the sliding nut with a secure hold for vertical mounting and high transverse loads. Different rail wall thicknesses allow an economical rail design. The scaling on the mounting rails simplifies the cutting and placing of the components. Slotted holes in the rail allow more flexibility in mounting the attachment parts.
