Fischer GPS 3/4" Mounting rail 120 mm Steel (galvanized) 020968 25 pc(s) (L x W x H) 120 x 40 x 4 mm
EAN:
Part number:
Item no:
Highlights & Details

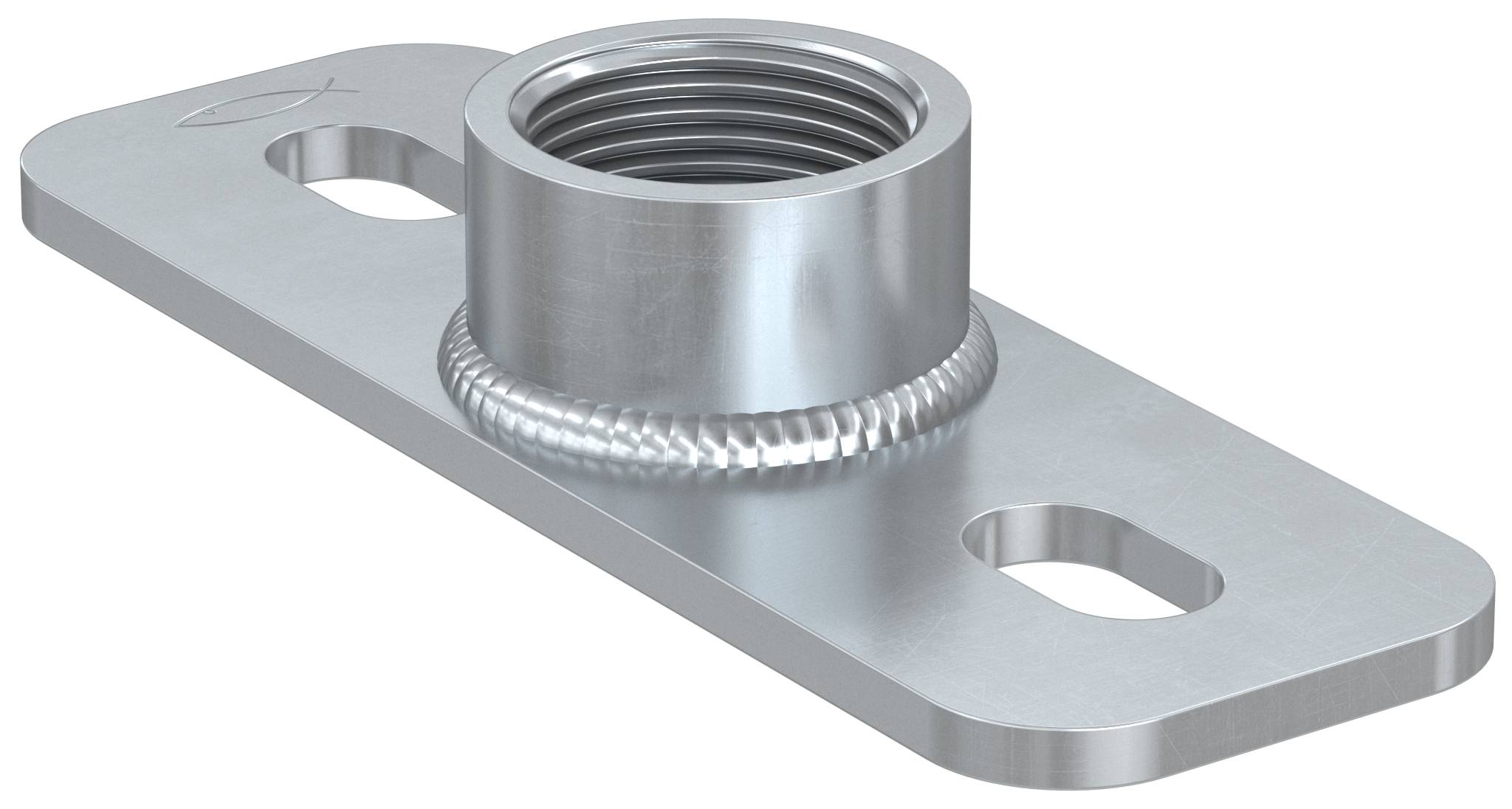

Base plate GPS 120 x 40 x 4 mm (3/4)
- Manufacture of dimensionally stable connections between underground and pipingSimple alignment of the console through slotsGalvanisedIdeal for Fischer installation systems
Technical specifications
- Load level: Medium
- Material: Galvanised steel 8 µm
- Slotted hole 11 x 19 mm
- Hole spacing: 79 mm
- Rec. Static load max. (centric) Train) 4.00 kN
- Material: S 355 MC (material no. 1.0976) in accordance with DIN EN 10149 - alternative: DD11 (material no. 1.0332) in accordance with EN 10111
- Product type
Mounting rail
- Dim
(L x W x H) 120 x 40 x 4 mm
- Material
Steel (galvanized)
- Content
25 pc(s)
- Thread size
3/4"
- Width
40 mm
- Height
4 mm
- Length
120 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 167903 Fischer GPS 3/4" Mounting rail 120 mm Steel (galvanized) 020968 25 pc(s) (L x W x H) 120 x 40 x 4 mm
Description

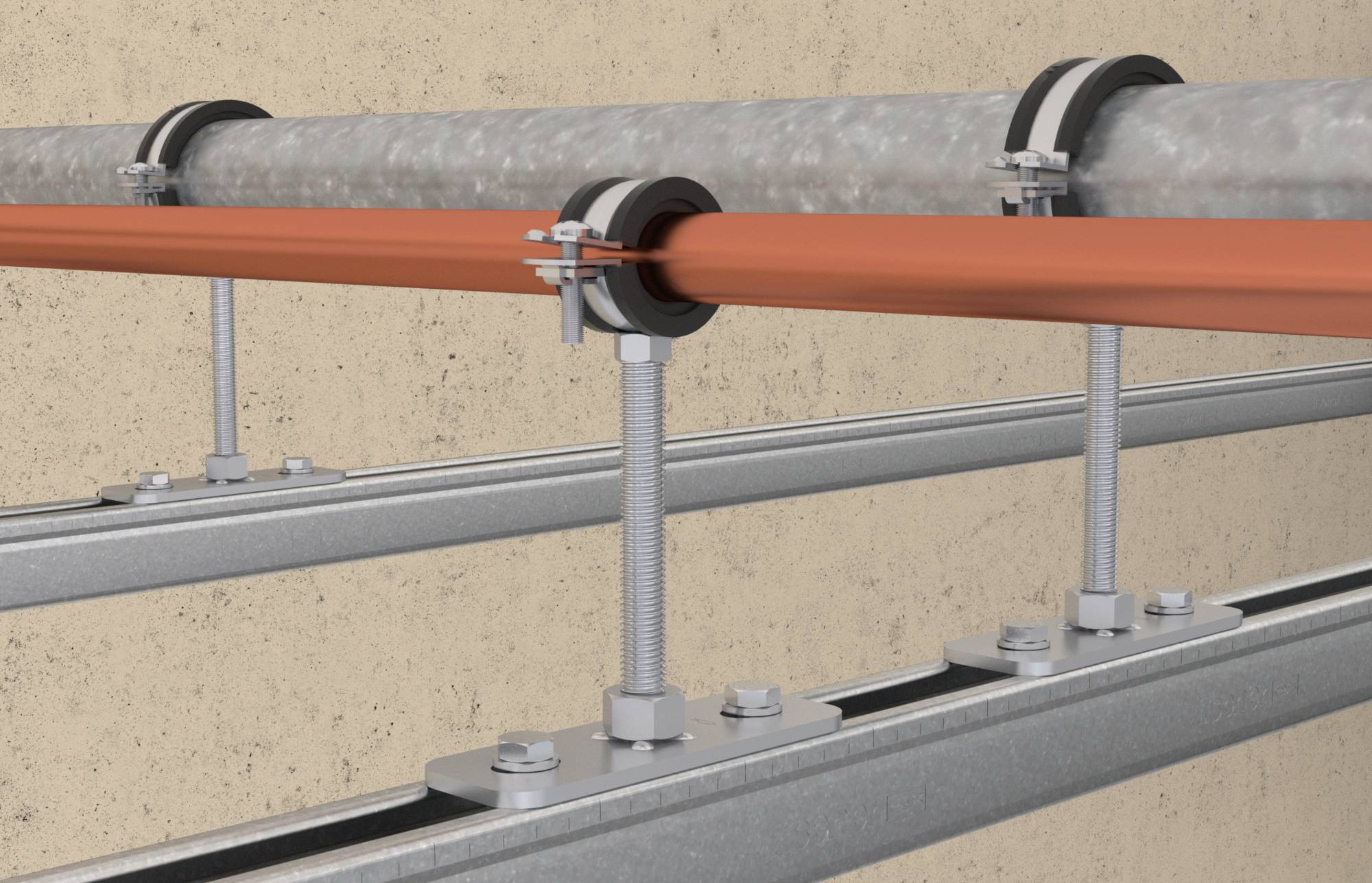

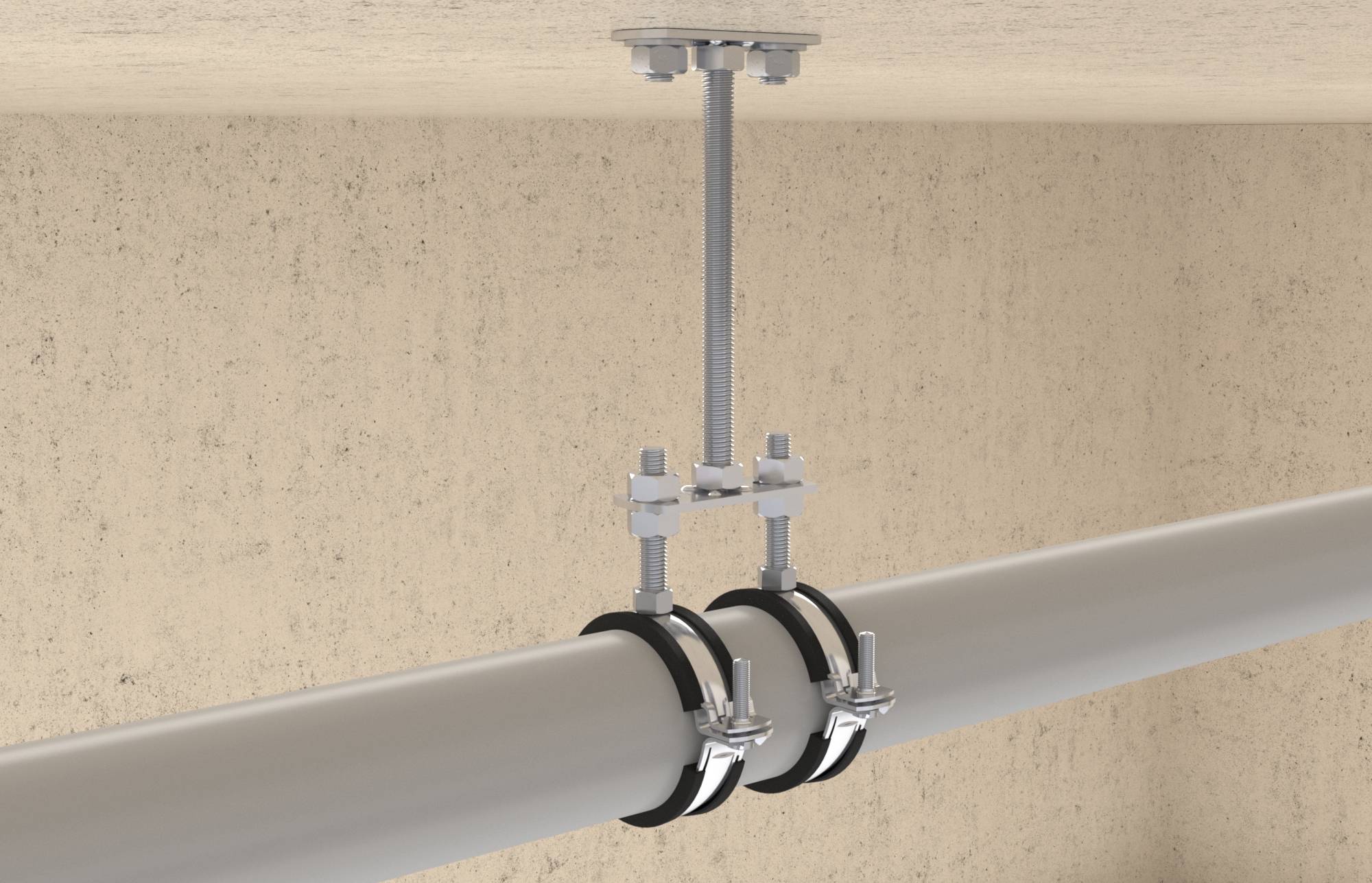

Universal heavy base with welded threaded sleeve. The Fischer GPS base plate is a mounting element with a welded-on threaded sleeve. This allows other fixing elements from the fischer installation system to be fixed on the base or on a mounting rail. The base plate is made of high-quality steel DD11 according to DIN EN 10111 and galvanized.
This text is machine translated.
This text is machine translated.
Features
- The slots on the base plate allow for easy alignment of the console.
Hints
Anchoring in perforated stone masonry with injection mortar FIS V, assembly mortar and green assembly mortar without approval.
