Fischer HK 41 17 Pawl Steel 561253 50 pc(s) (Ø) 17 mm
EAN:
Part number:
Item no:
Highlights & Details
Fischer HK 41 17 retaining claw

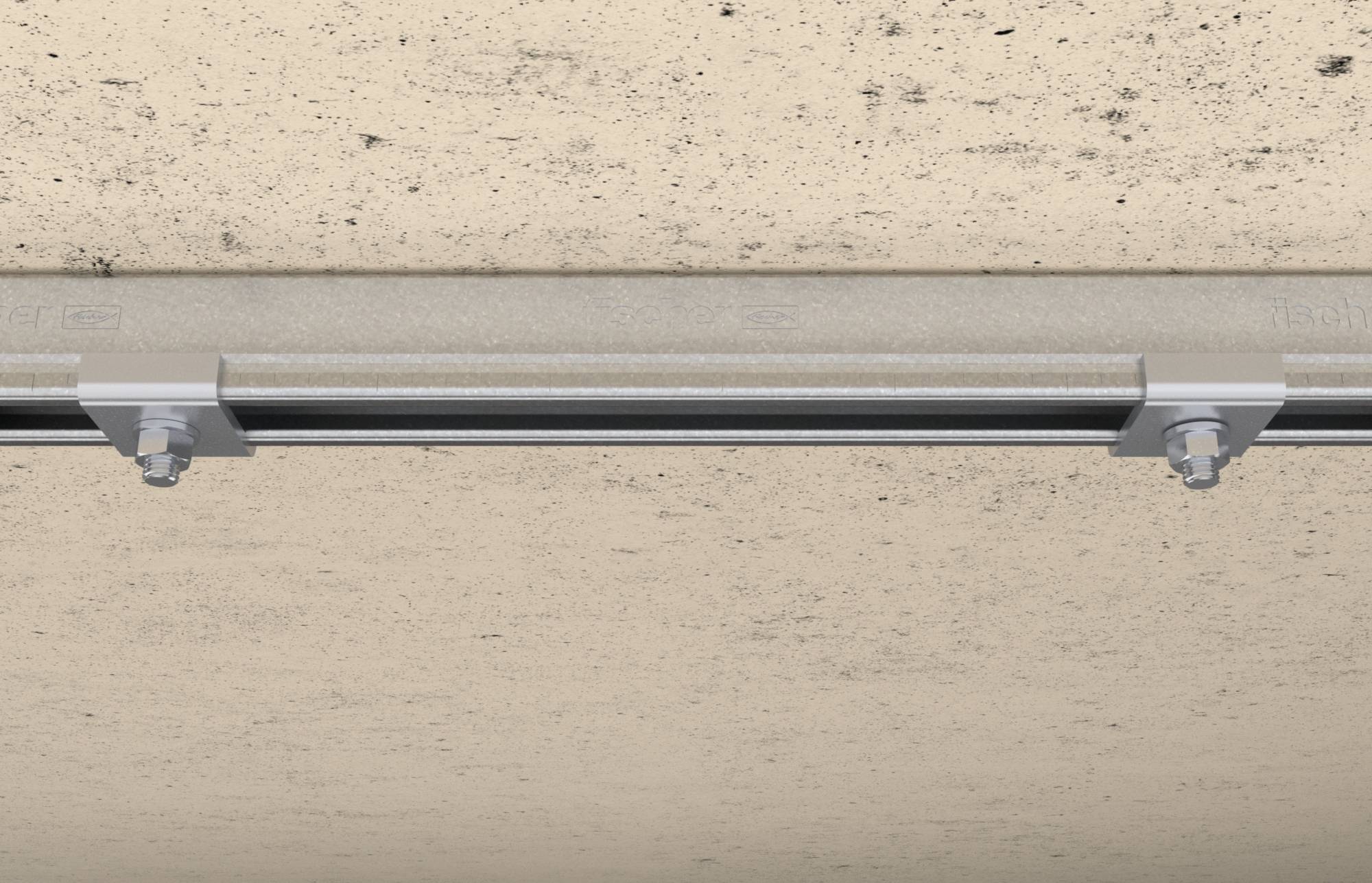

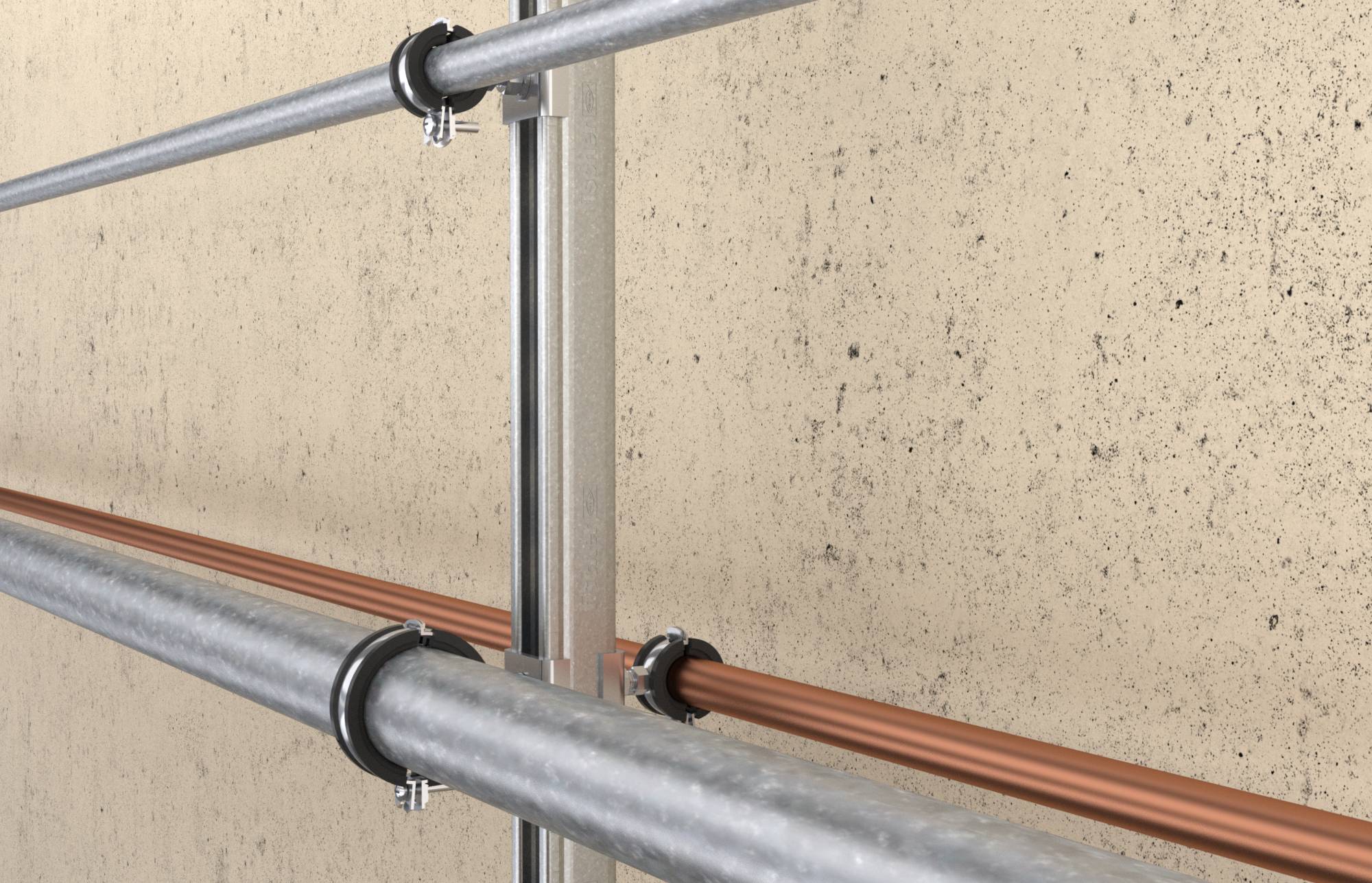

- Holding clamp for stable direct mounting of FLS tracks on the underground or for rigid mounting of pipe clamps at FLS rails by means of FSM ClixForm-fitting connection with the FLS rail through sideways bent contoursApplication-friendly corrosion protection by galv. GalvanisedFor use in dry indoor areas
Technical specifications
- Load level: Medium For profile: All FUS rails
- Product type
Pawl
- Dim
(Ø) 17 mm
- Material
Steel
- Content
50 pc(s)
- Material properties
zinc galvanized
- (Ø)
17 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699377 Fischer HK 41 17 Pawl Steel 561253 50 pc(s) (Ø) 17 mm
Description
The Fischer HK 41 clamp is a connector element, which is used to stabilize the rail profile. The U-shape of the holding claw effectively prevents the bending of the profile. Its shape also enables quick and easy through-hole mounting. Fischer offers the HK 41 with standard holes of 8.5 mm, 10.5 mm, 12.5 mm or 17 mm. The galvanic zinc version is suitable for installations in buildings, the versions of hot-dip galvanized and stainless steel for installation outdoors and in highly corrosive environments. The proof of fire protection offers a plus in safety.
